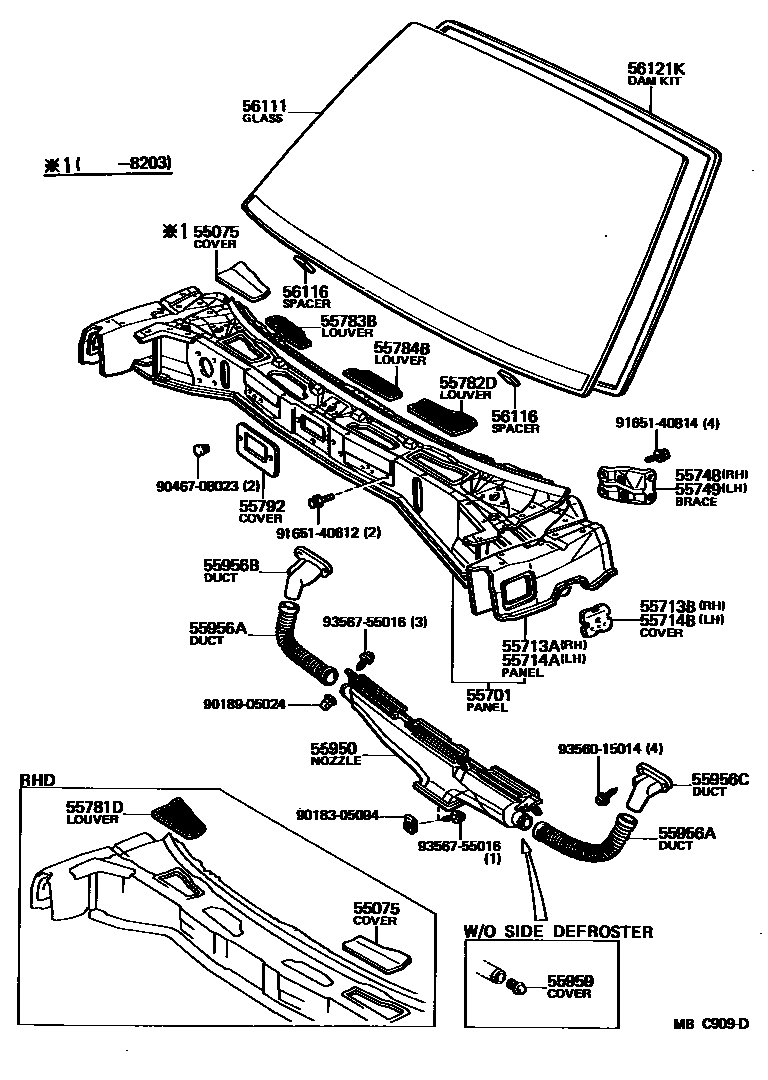

COWL PANEL & WINDSHIELD GLASS

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55791-14020iTA6#..LHD198108-198203

main55792-14020iTA6#..RHD198108-198203

55701PANEL SUB-ASSY, COWL

main55700-14400iTA6#..RHD198108-198303

main55700-14401iTA6#..RHD198303-198309

main55700-14410iCA60..RHD198204-198309

main55700-14430iTA6#..LHD..MTM198108-198309

main55700-14440iTA6#..LHD..3FC198108-198309

main55700-14450iCA60..LHD198204-198303

main55700-14451iCA60..LHD198303-198309

55713APANEL, COWL TOP SIDE, RH

main55713-14060iCA60,TA6#198108-198309

55713BCOVER, COWL SIDE PANEL HOLE, RH

main62161-14010iCA60,TA6#198108-198309

55714APANEL, COWL TOP SIDE, LH

main55714-14060iCA60,TA6#198108-198309

55714BCOVER, COWL SIDE PANEL HOLE, LH

main62161-14010iCA60,TA6#198309-198309

main62162-14010iCA60,TA6#198108-198309

55748BRACE, COWL TOP TO PILLAR, RH

main55748-14020iCA60,TA6#198108-198309

55749BRACE, COWL TOP TO PILLAR, LH

main55749-14050iCA60,TA6#198108-198309

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-14110iCA60,TA6#..RHD198108-198309

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-14030iCA60,TA6#..LHD198108-198309

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-14070iCA60,TA6#198108-198309

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-14090iCA60,TA6#198108-198309

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-24010iCA60,TA6#198108-198305

55950NOZZLE ASSY, DEFROSTER

main55950-14110iCA60,TA6#..RHD198108-198309

main55950-14120iCA60,TA6#..LHD198108-198309

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14010×2iCA60,TA6#198108-198309

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-14030iCA60,TA6#198108-198309

55956CDUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-14020iCA60,TA6#198108-198309

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2iTA60..GEN198108-198309

56111GLASS, WINDSHIELD

main56111-14270iTA62..GL..EUG;CA60,TA60..SED,WG198108-198309

*TT,T=5.0,*TZT,T=5.0

main56111-14280iCA60,TA6#..SED,WG198108-198309

*TL,T=5.3,*TL,T=5.3

main56111-14290iTA62..GL..EUG;CA60,TA60..SED,WG198108-198309

*TL,W/SUN SHADE,T=5.3

main56111-14380iTA60..CP;TA62..XE..EUG198108-198309

*TZT,T=5.0

main56111-14390iTA6#..CP198108-198309

*TL,T=5.3

main56111-14400iTA60..CP;TA62..XE..EUG198108-198309

*TL,W/SUN SHADE,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-14020×2iCA60,TA6#198108-198309

LWR,20X7.5X11.5

main56116-14040iCA60,TA6#..SED,WG198108-198309

SIDE,20X8X9.2

56121KDAM KIT, WINDSHIELD GLASS

main04562-30030iCA60,TA6#198108-198308

main04562-30040iCA60,TA6#198308-198309

9018305094

main90183-05094

9018905024

main90189-05024

9046708023

main90467-08023

9165140612

main91651-40612

9165140814

main91651-40814

9356015014

main93560-15014

9356755016

main93567-55016

28 parts on this diagram · 1 diagram in section
