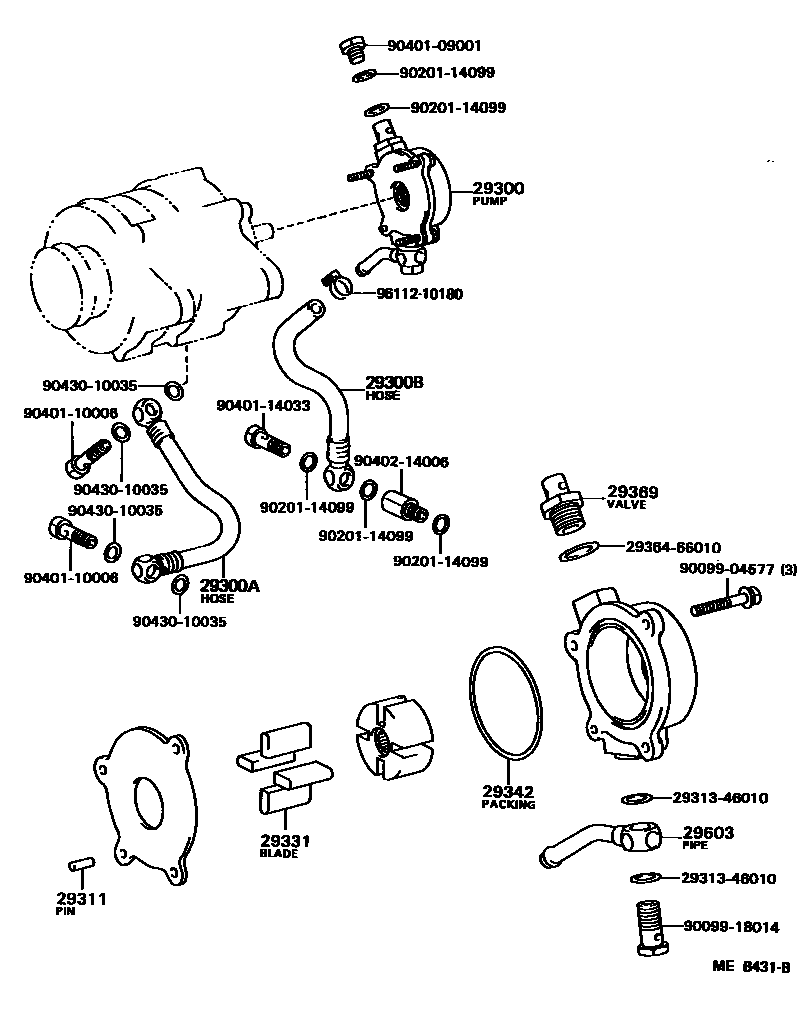

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-64010i1C..CA60198204-198309

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02025i1C..CA60198204-198309

L=130

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02069i1C..CA60198204-198309

L=235

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i1C..CA60198204-198309

29331BLADE, VACUUM PUMP, A

main29331-56070×4i1C..CA60198204-198309

29342PACKING, VACUUM PUMP

main96740-02063i1C..CA60198204-198309

29369VALVE SUB-ASSY, CHECK

main29369-56070i1C..CA60198204-198309

29603PIPE, VACUUM PUMP OIL OUTLET

main29365-64010i1C..CA60198204-198309

2931346010

main29313-46010

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9009918014

main90099-18014

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9040214006

main90402-14006

9043010035

main90430-10035

9611210180

main96112-10180

19 parts on this diagram · 1 diagram in section
