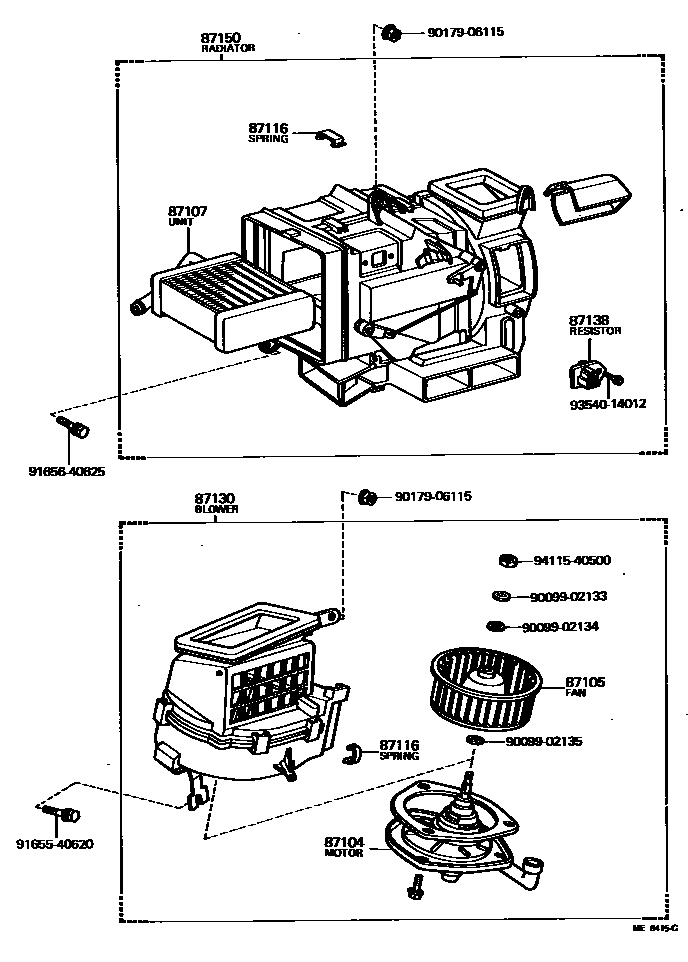

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-14060iTA40..RHD197708-197808

main87104-14070iTA40..LHD197708-197808

main87104-14080iTA4#..RHD197808-198107

main87104-14090iTA4#..LHD197808-198107

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iTA4#..RHD197708-198107

main87105-14030iTA4#..LHD197708-198107

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-14050iTA4#..RHD197708-198107

main87107-14070iTA40..LHD197708-197806

main87107-14080iTA4#..LHD197806-198107

87116SPRING, HEATER CASE FASTENING

main87116-14010iTA4#197708-198107

87130BLOWER ASSY, HEATER, FRONT

main87130-14030iTA40..RHD197708-197808

main87130-14031iTA4#..RHD197808-198107

main87130-14040iTA40..LHD197708-197808

main87130-14041iTA4#..LHD197808-198107

87138RESISTOR, HEATER BLOWER

main87138-14030iTA40197708-197808

main87138-14040iTA4#197808-198107

main87138-14050iTA4#..LHD198008-198107

87150RADIATOR ASSY, HEATER

main87150-14070iTA4#..RHD197708-198107

main87150-14090iTA40..LHD197708-197808

main87150-14091iTA4#..LHD197808-198008

main87150-14130iTA4#..LHD198008-198107

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9017906115

main90179-06115

9165540620

main91655-40620

9165640625

main91656-40625

9354014012

main93540-14012

9411540500

main94115-40500

15 parts on this diagram · 2 diagrams in section
