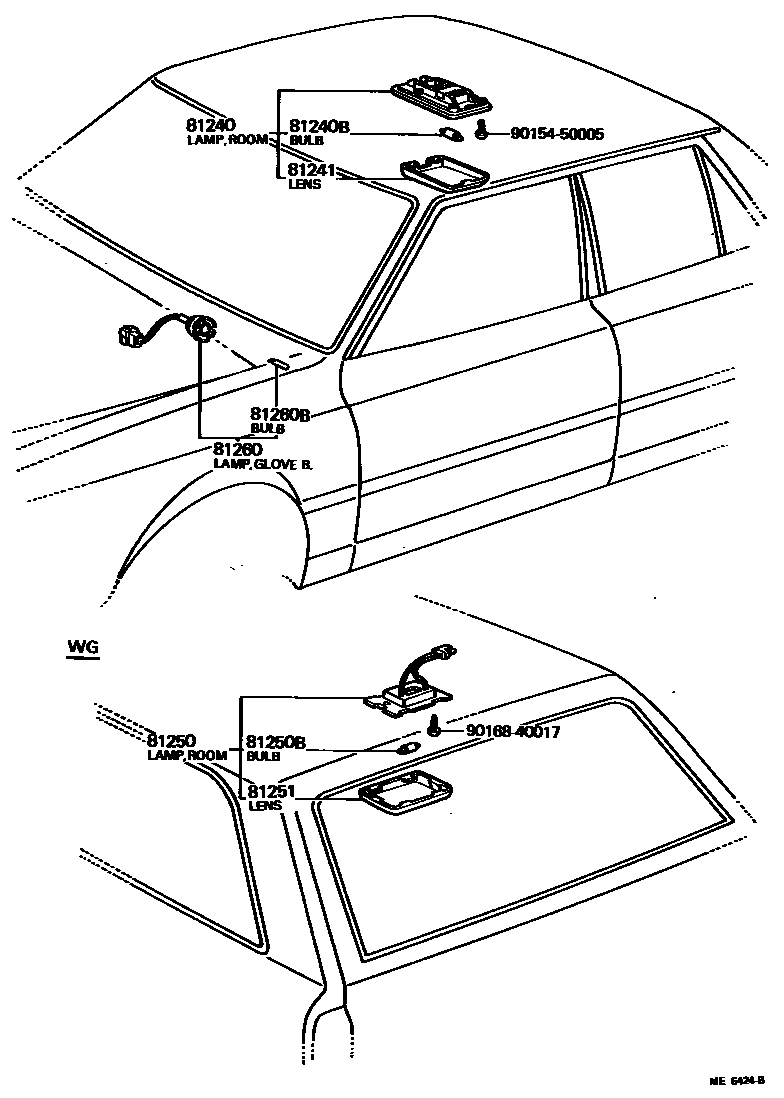

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-20060-03iTA4#197908-198008

GRAY,GRAY,TRIM2#

main81240-20060-05iTA4#197908-198107

BEIGE,BEIGE,TRIM4#

main81240-20060-08iTA4#198008-198107

IVORY,IVORY,TRIM2#

main81240-20060-14iTA4#197908-198107

BLUE,BLUE,TRIM8#

main81240-30040-04iTA40197708-197908

BLUE,BLUE,TRIM8#

main81240-30040-15iTA40197708-197908

LIGHT BROWN,BEIGE,TRIM4#

main81240-30040-23iTA40197708-197908

GRAY,GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iTA4#197708-198107

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-14010iTA40197708-197908

main81241-20060iTA4#197908-198107

81250LAMP ASSY, ROOM, NO.2

main81250-23010iTA4#..WG197708-198107

81250BBULB, ROOM LAMP, NO.2

main90981-11004iTA4#..WG197708-198107

12V 10W,12V 10W

81251LENS, ROOM LAMP, NO.2

main81251-23010iTA4#..WG197708-198107

81260LAMP ASSY, GLOVE BOX

main81260-22030iTA4#..DLX,GL,ST197708-198107

81260BBULB(FOR GLOVE BOX)

main90981-11018iTA4#..DLX,GL,ST197708-198107

12V 1.2W W/O SOCKET,12V 1.4W

9015450005

main90154-50005

9016840017

main90168-40017

10 parts on this diagram · 1 diagram in section
