SPEAKER

0001 1 0002 1 0003 1

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

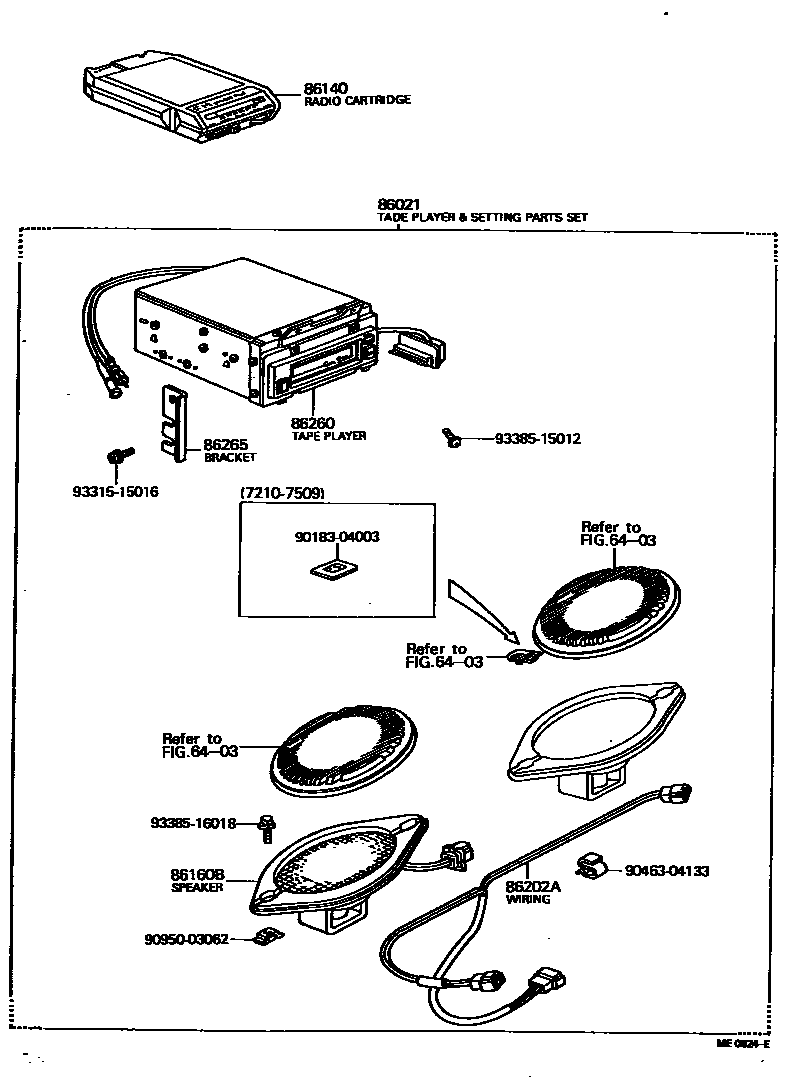

86021TAPE PLAYER AND SETTING PARTS SET

main86021-14010iTA1#197012-197207

main86021-14012iTA1#197208-197509

main86021-29015iTA14197510-197707

8 TRACK TYPE

86140RADIO CARTRIDGE ASSY, TAPE PLAYER (AM, FM STEREO PACK)

main86140-20020iTA1#197208-197707

FM

86160BSPEAKER ASSY, REAR

main86160-20050iTA1#197012-197707

86202AWIRE, SPEAKER, NO.2

main86202-14040iTA1#197302-197509

main86202-14041iTA14197510-197707

main86202-20010iTA1#197012-197302

86260TAPE PLAYER ASSY

main86260-14010iTA1#197012-197207

main86260-14012iTA1#197208-197509

main86260-20030iTA14197510-197707

8 TRACK TYPE

86265BRACKET, TAPE PLAYER, NO.1

main86211-20010iTA1#197012-197509

main86239-20010iTA14197510-197707

9018304003

main90183-04003

9046304133

main90463-04133

9095003062

main90950-03062

9331515016

main93315-15016

9338515012

main93385-15012

9338516018

main93385-16018

13 parts on this diagram · 3 diagrams in section
