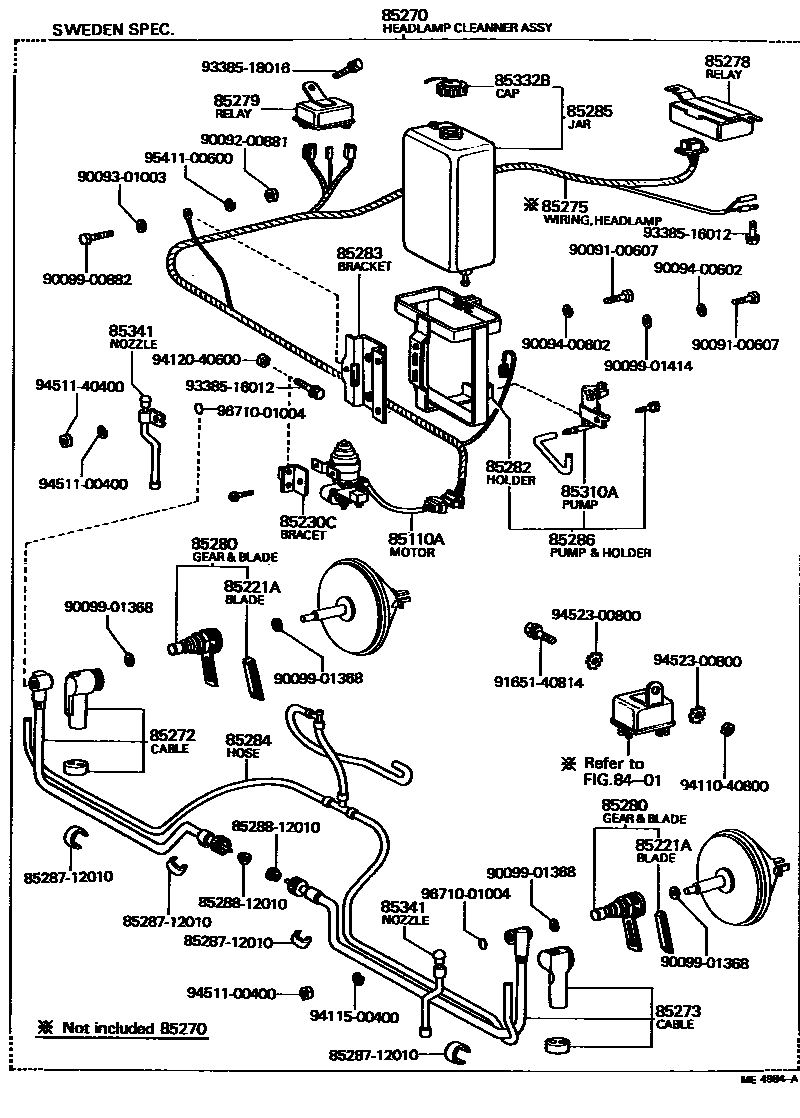

WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85110AMOTOR ASSY, HEADLAMP CLEANER

main85110-12110iTA12..LHD..4F..STD..2D197307-197509

85221ABLADE ASSY, HEADLAMP CLEANER

main85221-14040×2iTA12..LHD..4F..STD..2D197307-197509

85230CBRACKET ASSY, HEADLAMP CLEANER

main85230-14010iTA12..LHD..4F..STD..2D197307-197509

85270CLEANER ASSY, HEADLAMP

main85270-14010iTA12..LHD..4F..STD..2D197307-197508

SWEDEN SPEC.

85272CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-12010iTA12..LHD..4F..STD..2D197307-197509

85273CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-14010iTA12..LHD..4F..STD..2D197307-197509

85275WIRING SUB-ASSY, HEADLAMP CLEANER

main85275-14010iTA12..LHD..4F..STD..2D197307-197509

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85278-12010iTA12..LHD..4F..STD..2D197307-197509

85279RELAY ASSY, HEADLAMP CLEANER WASHER

main85279-22010iTA12..LHD..4F..STD..2D197307-197509

85280GEAR AND BLADE SUB-ASSY, HEADLAMP CLEANER

main85280-14010×2iTA12..LHD..4F..STD..2D197307-197509

85282HOLDER ASSY, HEADLAMP CLEANER WASHER JAR

main85282-14020iTA12..LHD..4F..STD..2D197307-197509

85283BRACKET, HEADLAMP CLEANER WASHER

main85283-22010iTA12..LHD..4F..STD..2D197307-197509

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main85284-14020iTA12..LHD..4F..STD..2D197307-197509

85285JAR, HEADLAMP CLEANER WASHER

main85285-14020iTA12..LHD..4F..STD..2D197307-197509

85286

main85286-14020iTA12197307-197509

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-23010iTA12..LHD..4F..STD..2D197307-197509

85332BLABEL, WASHER

main85332-22010iTA12..LHD..4F..STD..2D197307-197509

85341NOZZLE, HEADLAMP CLEANER WASHER

main85341-12030iTA12..LHD..4F..STD..2D; TA12..LHD..4F..STD..2D;TA12..LHD..3FC..DLX..4D197307-197509

RH; RH.

main85341-12040iTA12..LHD..4F..STD..2D; TA12..LHD..4F..STD..2D;TA12..LHD..3FC..DLX..4D197307-197509

LH; LH.

8528712010JOINT, HEADLAMP CLEANER HOSE, NO.1

main85287-12010

8528812010JOINT, HEADLAMP CLEANER HOSE NO.2

main85288-12010

9009100607

main90091-00607

9009200881

main90092-00881

9009301003

main90093-01003

9009400602

main90094-00602

9009900882

main90099-00882

9009901368

main90099-01368

9009901414

main90099-01414

9165140814

main91651-40814

9338516012

main93385-16012

9338518016

main93385-18016

9411040800

main94110-40800

9411500400

main94115-00400

9412040600

main94120-40600

9451100400

main94511-00400

9451140400

main94511-40400

9452300800

main94523-00800

9541100600

main95411-00600

9671001004

main96710-01004

39 parts on this diagram · 1 diagram in section
