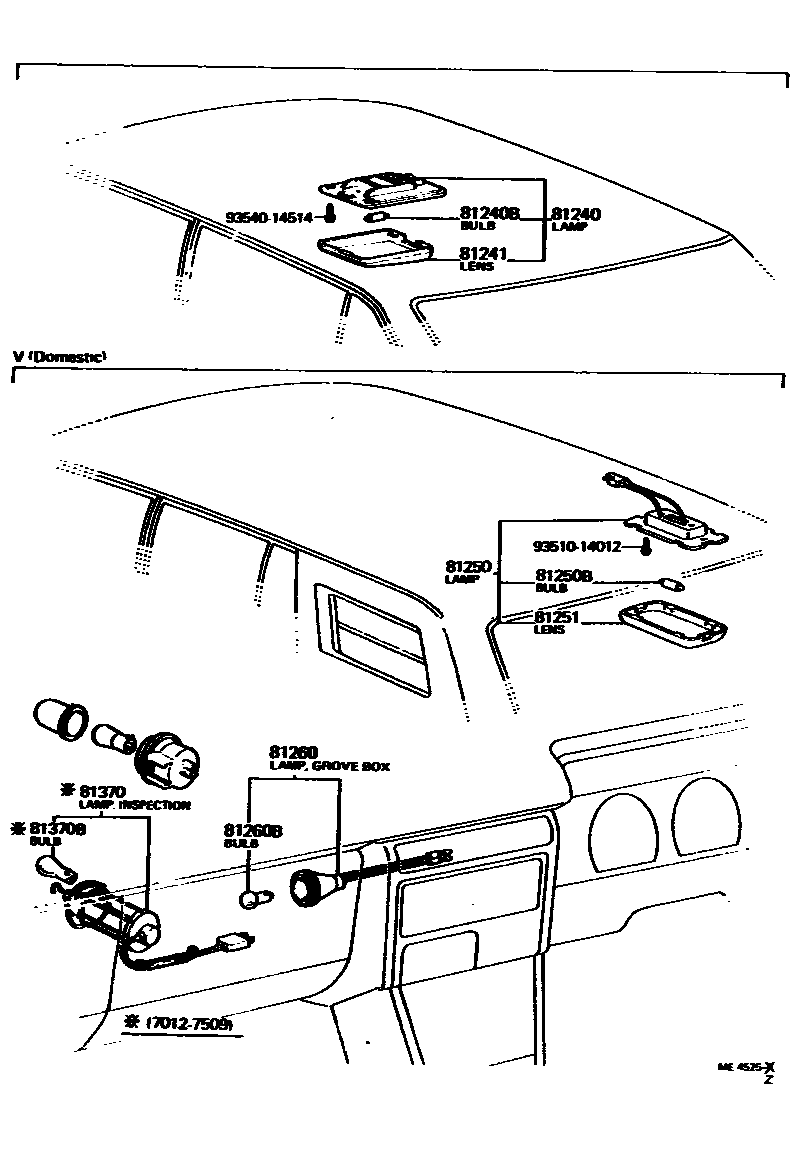

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-30040-01iTA12..ST; TA14197401-197707

BLACK,BLACK,TRIM2#,4#

main81240-30040-03iTA1#197012-197401

GRAY,GRAY,TRIM2#,4#,8#

main81240-30040-08iTA1#197401-197707

IVORY,IVORY,TRIM0#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-11015iTA1#197012-197306

12V 10W,12V 10W

main99132-12100iTA1#197306-197707

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-14010iTA1#197012-197707

81250LAMP ASSY, ROOM, NO.2

81250BBULB, ROOM LAMP, NO.2

81251LENS, ROOM LAMP, NO.2

81260LAMP ASSY, GLOVE BOX

main81260-14010iTA12..DLX197012-197103

main81260-14011iTA1#..DLX197103-197509

81260BBULB(FOR GLOVE BOX)

main99132-11034iTA1#..DLX197012-197509

12V 3.4W,12V 3.4W

81370LAMP ASSY, INSPECTION

main81370-30020iTA1#..DLX197012-197509

81370BBULB, INSPECTION LAMP

main99132-11230iTA1#..DLX197012-197509

12V 23W,12V 23W

9351014012

main93510-14012

9354014514

main93540-14514

12 parts on this diagram · 1 diagram in section
