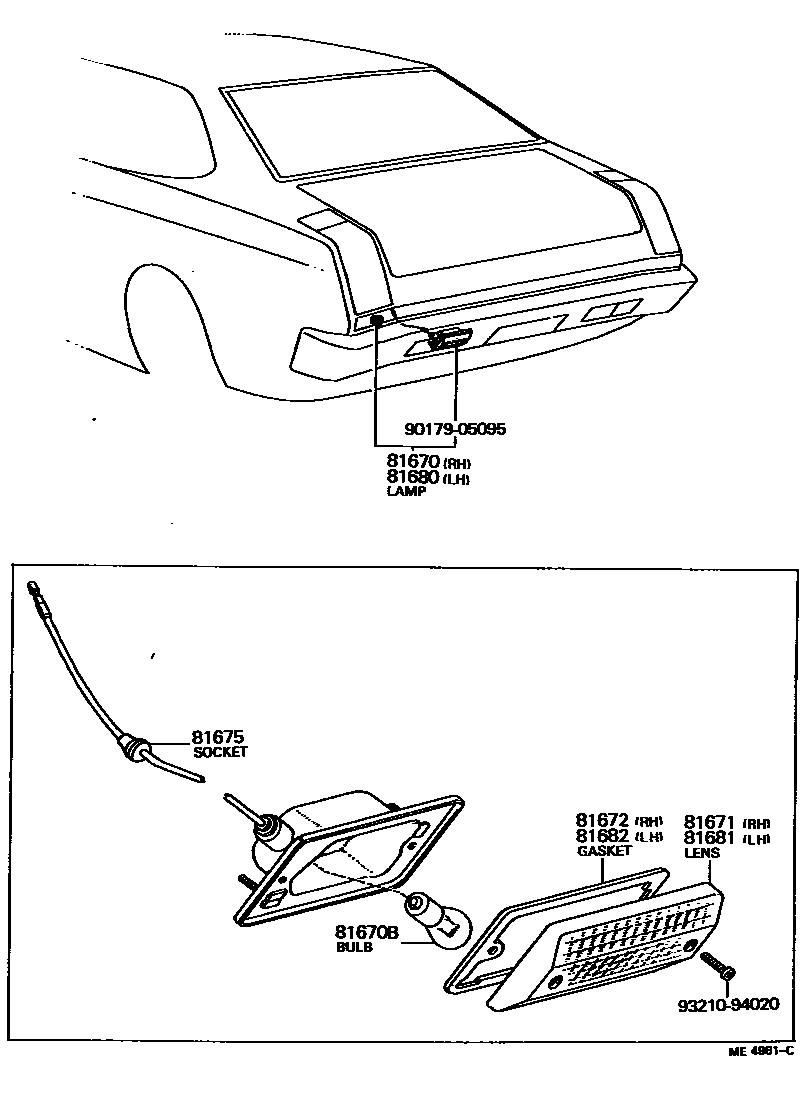

BACK UP LAMP

0001 1 0002 1

81670LAMP ASSY, BACK-UP, RH

main81670-19025iTA1#197012-197207

main81670-19026iTA1#197208-197501

main81670-19055iTA1#197501-197707

81670BBULB(FOR BACK-UP LAMP)

main99132-11210×2iTA14197510-197707

12V 21W,12V 21W

main99132-11230×2iTA1#197012-197509

12V 23W,12V 23W

81671LENS, BACK-UP LAMP, RH

main81671-14010iTA1#197012-197207

81672GASKET, BACK-UP LAMP LENS, RH

main81672-14010iTA1#197012-197207

81675SOCKET & WIRE, BACK-UP LAMP

main81675-14010×2iTA1#197012-197207

main81675-14011×2iTA1#197208-197509

main81675-14030×2iTA14197510-197707

81680LAMP ASSY, BACK UP, LH

main81680-19025iTA1#197012-197207

main81680-19026iTA1#197208-197501

main81680-19055iTA1#197501-197707

81681LENS, BACK-UP LAMP, LH

main81681-14010iTA1#197012-197207

81682GASKET, BACK UP LAMP LENS, LH

main81672-14010iTA1#197012-197207

9017905095

main90179-05095

9321094020

main93210-94020

10 parts on this diagram · 2 diagrams in section
