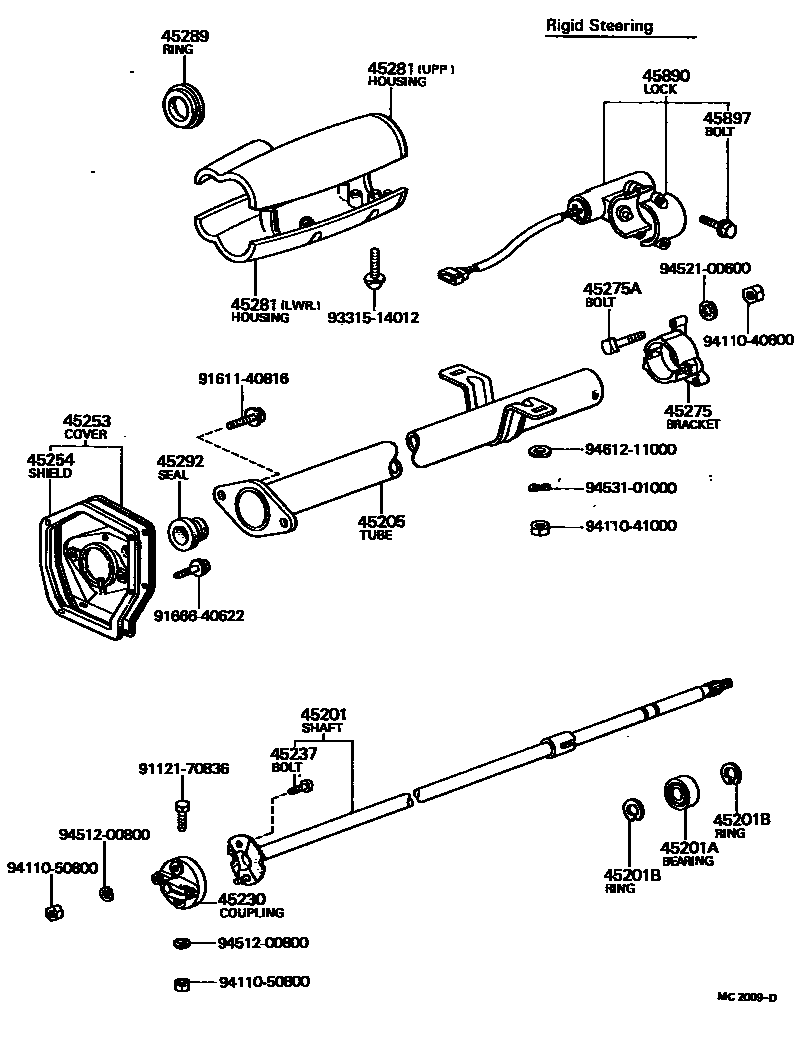

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
RIGID
RIGID
COLLAPSIBLE
COLLAPSIBLE
45201ABEARING(FOR STEERING MAIN SHAFT)
B18Z-1B1 C3
KOYO
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45205TUBE SUB-ASSY, STEERING COLUMN
RIGID
RIGID
RIGID
COLLAPSIBLE
COLLAPSIBLE
COLLAPSIBLE
45230COUPLING ASSY, FLEXIBLE
COLLAPSIBLE
RIGID
45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45275BRACKET, STEERING COLUMN, UPPER
45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
45281HOUSING, STEERING COLUMN
UPPER
UPPER
UPPER
UPPER
UPPER
UPPER
UPPER
UPPER
LOWER
LOWER,BLACK
LOWER
LOWER
LOWER
LOWER
LOWER
LOWER
45289RING, STEERING COLUMN COVER
45292SEAL, MAIN SHAFT LOWER DUST
RIGID
COLLAPSIBLE
COLLAPSIBLE
RIGID
COLLAPSIBLE
45890LOCK ASSY, STEERING
45897BOLT, STEERING LOCK SET
9112170836
main91121-70836
9161140816
main91611-40816
9166640622
main91666-40622
9331514012
main93315-14012
9411040600
main94110-40600
9411041000
main94110-41000
9411050800
main94110-50800
9451200800
main94512-00800
9452100600
main94521-00600
9453101000
main94531-01000
9461211000
main94612-11000
26 parts on this diagram · 9 diagrams in section
