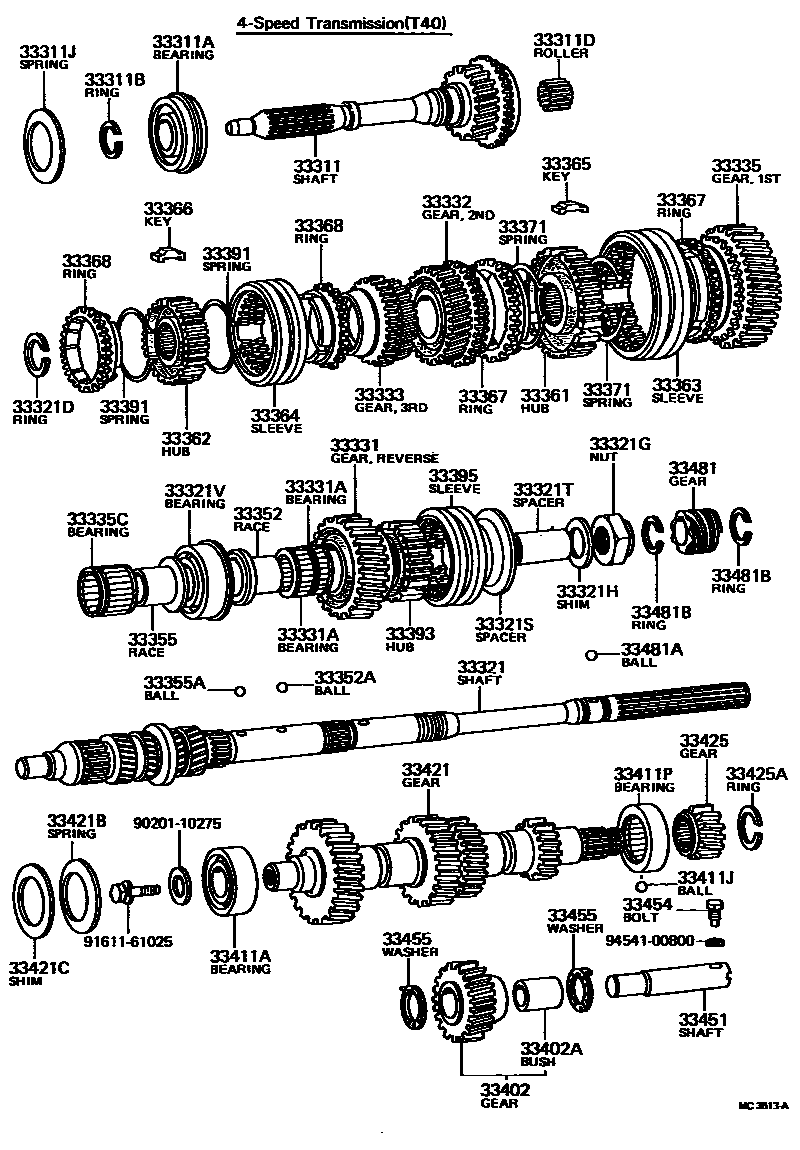

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
N=23
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.35-2.40
T=2.45-2.50
T=2.40-2.45,T=2.40-2.45
T=2.50-2.55
T=2.45-2.50,T=2.55-2.60
33311DBEARING, INPUT SHAFT
33311JSPRING, INPUT SHAFT THRUST CORN
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.95-2.00,T=1.95-2.00
T=2.00-2.05,T=2.00-2.05
T=2.05-2.10,T=2.05-2.10
T=2.10-2.15,T=2.10-2.15
T=2.15-2.20,T=2.15-2.20
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=0.3
33321SSPACER (FOR GEAR STOPPER)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
N=34
N=34
33331ABEARING (FOR REVERSE GEAR)
33333GEAR, 3RD
N=27
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33352RACE, REVERSE GEAR BEARING INNER
33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
N=21
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411JBALL, COUNTER GEAR CENTER BEARING STOPPER
33411PBEARING, COUNTERSHAFT CENTER
33421GEAR, COUNTER
N=33,28,22,14
N=33,28,22,14
33421BSPRING, COUNTER GEAR THRUST CORN
33421CSHIM(FOR COUNTER GEAR THRUST CORN SPRING)
33425GEAR, COUNTERSHAFT REVERSE
N=14
33425ARING, SHAFT SNAP (FOR COUNTER GEAR)
T=1.90-1.95
T=1.80-1.85
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
33455WASHER, REVERSE IDLER GEAR THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.6-1.7
9020110275
main90201-10275
9161161025
main91611-61025
9454100800
main94541-00800
53 parts on this diagram · 2 diagrams in section
