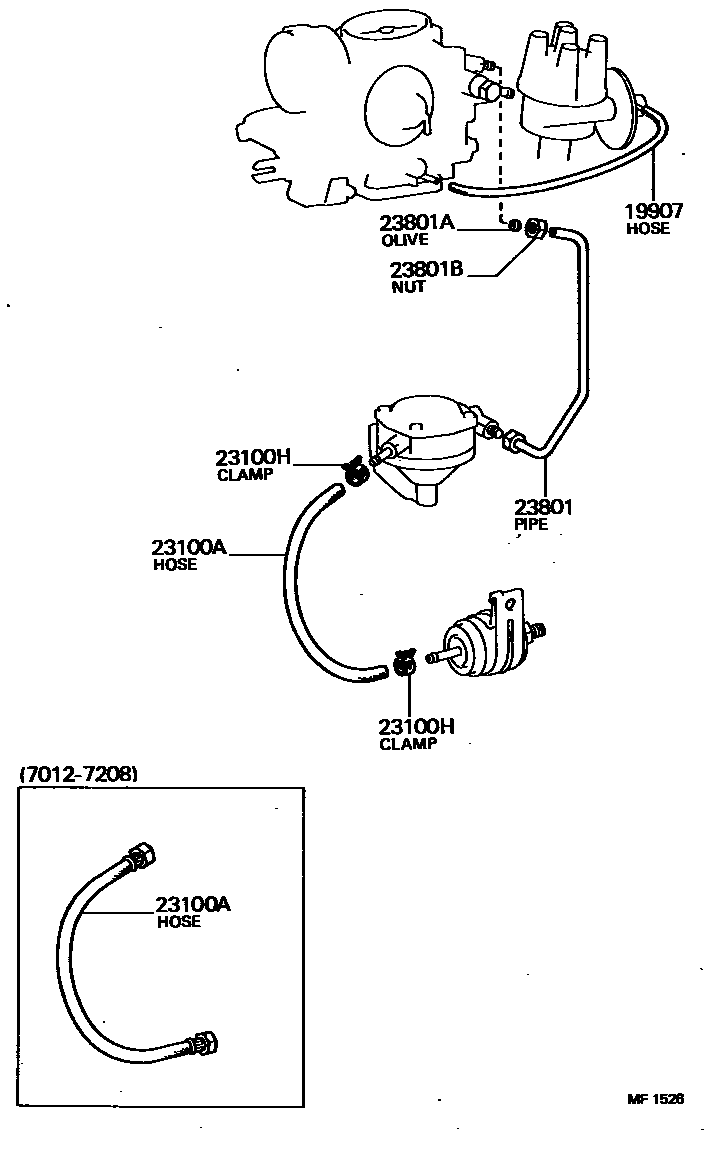

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

19907HOSE, VACUUM, NO.1

main90445-07127iT,2T..TA1#197208-197509

main90445-07136iT,2T..TA1#197012-197509

main95411-19930i2TB..TA14197510-197603

H,L=280

main95411-19960i2T..TA14197510-197707

H,L=360

23100AHOSE, FUEL

main90923-01137iT,2T..TA1#197012-197202

L=280

main95323-07030iT,2T..TA1#197202-197207

L=300

main95331-06026i2T#..TA14197510-197701

main95331-06030i2T#..TA14197701-197707

main95331-06030iT,2T#..TA1#197401-197509

L=300

main95331-08030iT,2T#..TA1#197208-197401

L=300

23100HCLIP(FOR FUEL HOSE)

main90467-12140iT,2T#..TA1#197401-197402

main90467-13130iT,2T#..TA1#197208-197212

main90467-13138iT,2T#..TA1#197212-197401

main96132-30600iT,2T#..TA1#197402-197707

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-25010iT,2T..TA1#197012-197401

main23811-26010i2TB..TA12197208-197401

main90445-12055i2T#..TA14197701-197707

main95331-06026i2TB..TA14197401-197701

*H,L=260

main95331-06030i2T..TA14197607-197701

*H,L=300

23801AOLIVE(FOR FUEL PIPE)

main96395-71400iT,2T#..TA1#197012-197401

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041iT,2T#..TA1#197012-197401

6 parts on this diagram · 5 diagrams in section
