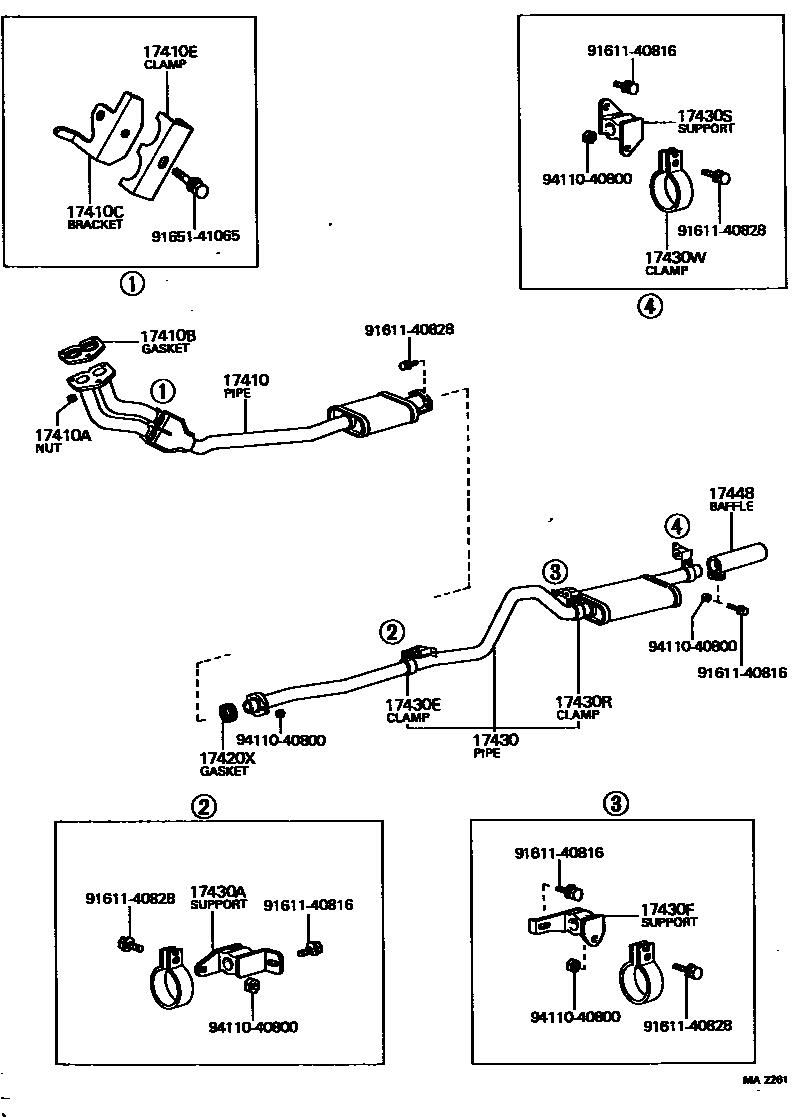

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-25020iT,2T..TA1#197012-197207

main17410-25021iT,2T..TA1#197208-197304

main17410-25022iT,2T..TA1#197304-197509

main17410-26010i2TB..TA12197208-197311

main17410-26011i2TB..TA12197311-197509

main17410-26100i2T#..TA14197510-197707

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-08169×3i2T#..TA14197510-197707

main90179-10118×3iT,2T#..TA1#197102-197509

main94181-11000×3iT,2T..TA1#197012-197102

17410BGASKET, EXHAUST PIPE

main17451-41010iT,2T#..TA1#197012-197304

main17451-41020iT,2T#..TA1#197304-197707

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-25010iT,2T..TA1#197012-197509

main17571-26010i2TB..TA12197208-197509

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17578-25010iT,2T..TA1#197012-197509

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06001iT,2T..TA1#197012-197509

main90917-06004i2TB..TA12197208-197509

17430PIPE ASSY, EXHAUST, TAIL

main17430-25020iT,2T..TA1#197012-197207

main17430-25070iT,2T..TA1#197303-197309

main17430-25071iT,2T..TA1#197309-197509

main17430-25080i2T..TA12..LHD197309-197509

ALUMINIZED

main17430-26011i2TB..TA12197208-197309

main17430-26012i2TB..TA12197309-197509

main17430-26090i2TB..TA12197309-197509

ALUMINIZED

main17430-26120i2T..TA14197510-197707

main17430-26130i2T..TA14197510-197707

ALUMINIZED

main17430-26140i2TB..TA14197510-197707

main17430-26230i2TB..TA14197510-197707

ALUMINIZED

main17430-34021iT,2T..TA1#197208-197303

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17507-26040i2T#..TA14197510-197707

main17561-25010iT,2T..TA1#197012-197207

main17561-25011iT,2T#..TA1#197208-197509

17430ECLAMP NO.2, EXHAUST TAILPIPE(FOR FRONT)

main90461-23556iT,2T..TA1#197012-197207

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17507-25010iT,2T#..TA1#197208-197509

main17562-25010iT,2T..TA1#197012-197207

17430RCLAMP NO.2, EXHAUST TAILPIPE (FOR CENTER)

main90461-23556iT,2T..TA1#197012-197207

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-25011iT,2T#..TA1#197208-197509

main17508-26040i2T#..TA14197510-197707

RH.

main17509-26010i2T#..TA14197510-197707

LH.

main17563-25010iT,2T..TA1#197012-197207

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-23556iT,2T..TA1#197012-197207

17448BAFFLE, TAILPIPE

main17448-25010iT,2T..TA1#..DLX197012-197401

9161140816

main91611-40816

9161140828

main91611-40828

9165141065

main91651-41065

9411040800

main94110-40800

18 parts on this diagram · 4 diagrams in section
