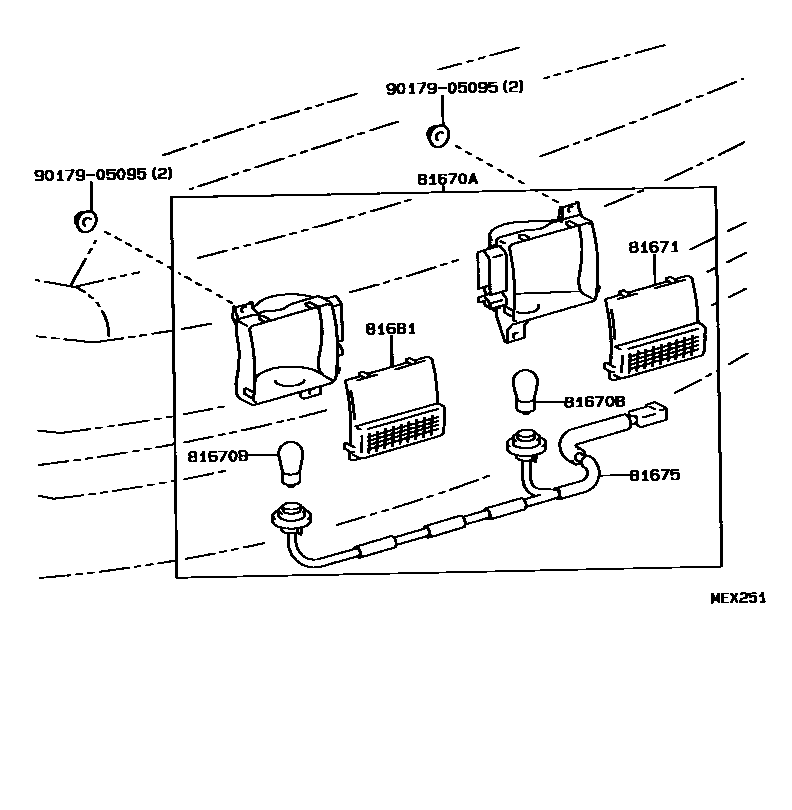

BACK UP LAMP

81670ALAMP ASSY, BACK-UP

main81670-17020iSW2#199311-199506

81670BBULB(FOR BACK-UP LAMP)

main99132-11270×2iSW2#199311-199506

12V 27W

81671LENS, BACK-UP LAMP, RH

main81671-17010iSW2#199311-199506

81675SOCKET & WIRE, BACK-UP LAMP

main81675-17020iSW2#199311-199506

81681LENS, BACK-UP LAMP, LH

main81672-17010iSW2#199311-199506

9017905095

main90179-05095

6 parts on this diagram · 1 diagram in section
