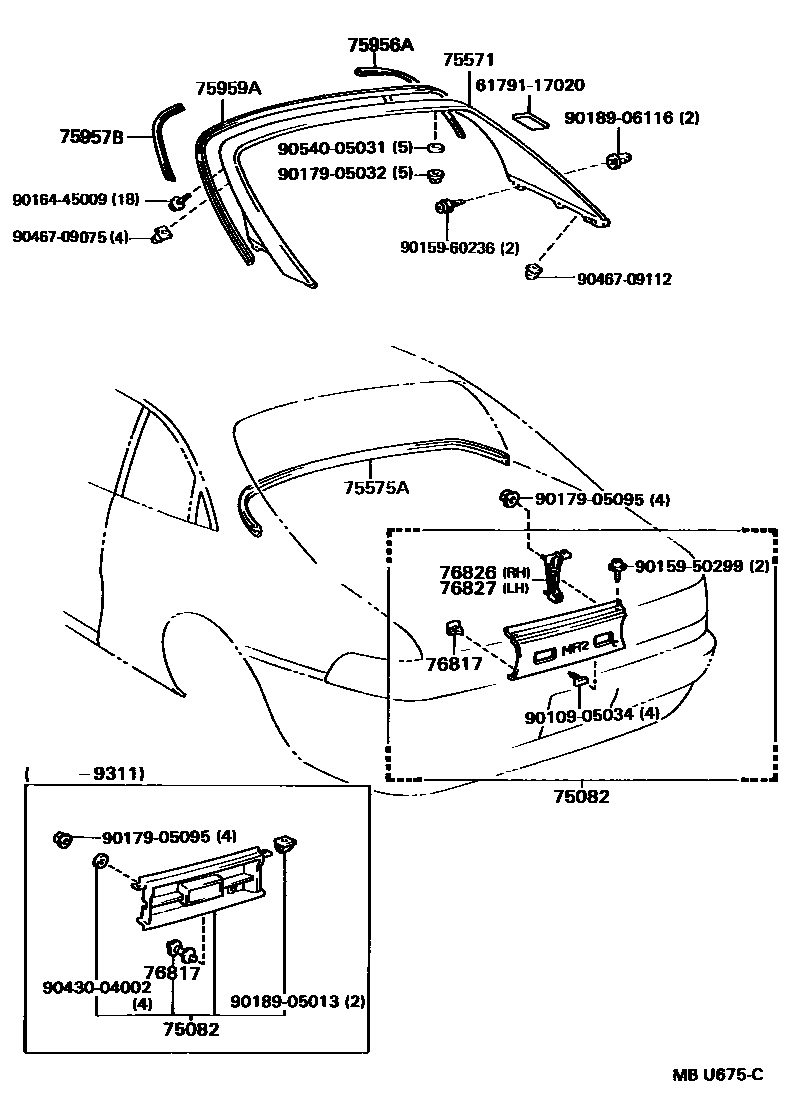

REAR MOULDING

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-17030iSW2#199001-199311

main75082-17050-A0iSW2#199311-199506

SUPER WHITE 2,040

main75082-17050-B0iSW2#199311-199506

BL.GRAY AMC,187

main75082-17050-C0iSW2#199311-199506

BLACK,202

main75082-17050-D0iSW2#199311-199506

SUPER RED 2,3E5

main75082-17050-F0iSW2#199311-199506

SUPER BRIGHT YELLOW,576

main75082-17050-G0iSW2#199311-199506

DK.GREEN MICA,6M1

main75082-17050-J0iSW2#199311-199506

STRONG BLUE M,8B6

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75507-17901iSW2#199001-199506

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-17010iSW2#199001-199506

75956APAD, BACK WINDOW MOULDING, NO.2

main75956-17010iSW2#199001-199506

75957BPAD, BACK WINDOW MOULDING, NO.3

main75957-17020iSW2#199001-199506

75959APAD, BACK WINDOW OUTSIDE MOULDING

main75959-17030-01iSW2#199001-199311

DARK GRAY M.,202

main75959-17030-02iSW2#199001-199201

SUPER RED 3,3J6

main75959-17030-03iSW2#199201-199311

DARK GRAY M.,187

main75959-17030-04iSW2#199001-199201

BLUE M,8H3

main75959-17030-07iSW2#199001-199201

DARK TURQUISE MICA,742

main75959-17030-08iSW2#199001-199201

SUPER WHITE 3,043

main75959-17030-09iSW2#199001-199311

GOLD MICA M.,567

main75959-17030-A0iSW2#199201-199311

LIGHT SILVER M.,040

main75959-17030-D0iSW2#199201-199311

MAROON M.,3E5

main75959-17030-H0iSW2#199201-199311

TURQUOISE MICA M.,746

main75959-17030-J0iSW2#199201-199311

BLUE M.,8J2

main75959-17040-A1iSW2#199311-199506

WHITE,040

main75959-17040-B0iSW2#199311-199506

GRAY,187

main75959-17040-C0iSW2#199311-199506

BLACK,202

main75959-17040-D0iSW2#199311-199506

RED,3E5

main75959-17040-F0iSW2#199311-199506

YELLOW,576

main75959-17040-G0iSW2#199311-199506

DK.GREEN,6M1

main75959-17040-J0iSW2#199311-199506

BLUE,8B6

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12040×2iSW2#199001-199311

main76817-17010×2iSW2#199311-199506

76826RETAINER, BACK DOOR GARNISH, NO.1

main76826-17010iSW2#199311-199506

76827RETAINER, BACK DOOR GARNISH, NO.2

main76827-17010iSW2#199311-199506

6179117020BRACE, QUARTER INNER PANEL

main61791-17020

9010905034

main90109-05034

9015950299

main90159-50299

9015960236

main90159-60236

9016445009

main90164-45009

9017905032

main90179-05032

9017905095

main90179-05095

9018905013

main90189-05013

9018906116

main90189-06116

9043004002

main90430-04002

9046709075

main90467-09075

9046709112

main90467-09112

9054005031

main90540-05031

22 parts on this diagram · 1 diagram in section
