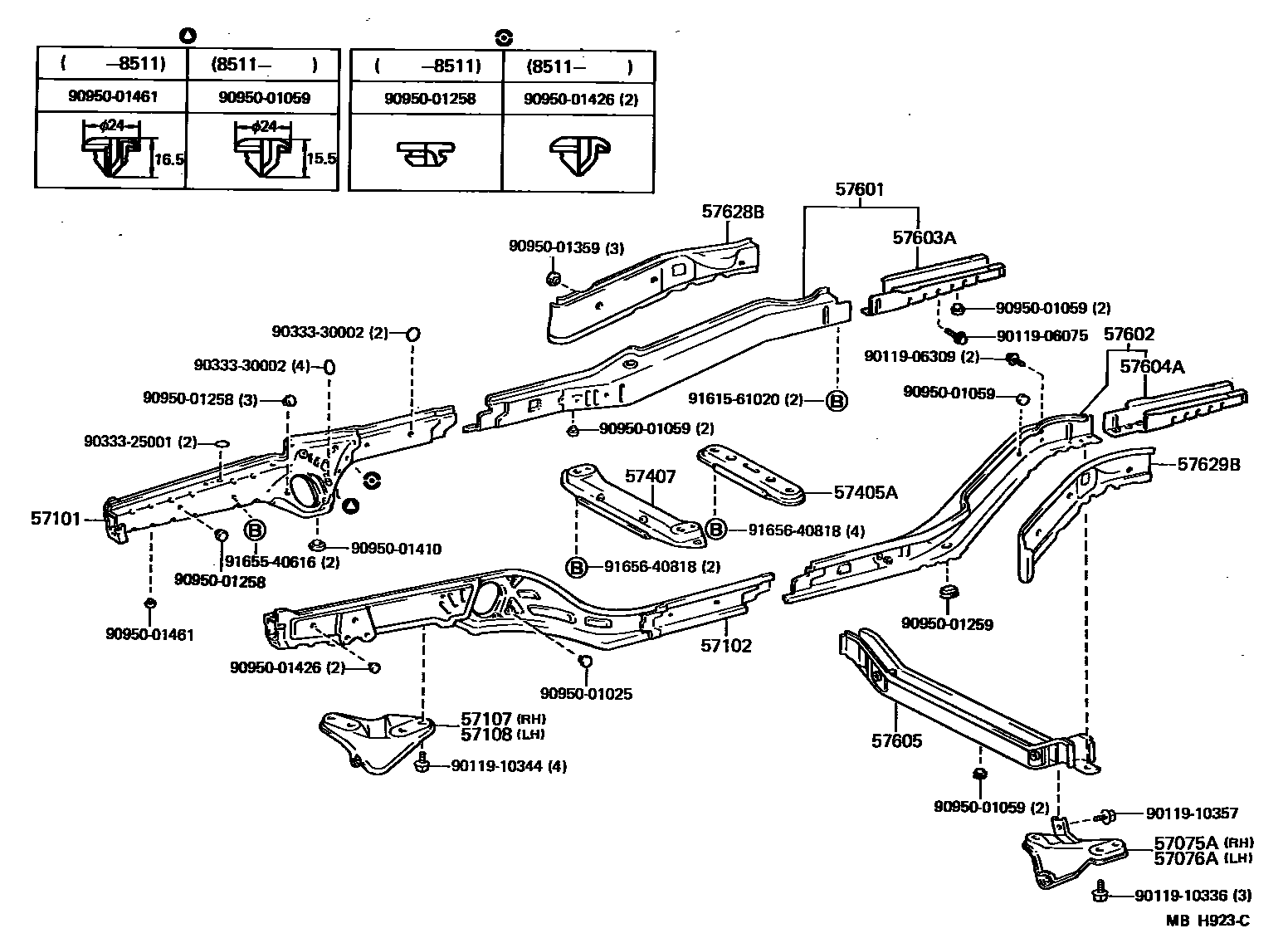

FLOOR SIDE MEMBER

0001 1 0002 1

57075ABRACKET SUB-ASSY, REAR SUSPENSION ARM, RH

main57075-17010iAW11198412-198608

main57075-17011iAW11198608-198912

57076ABRACKET SUB-ASSY, REAR SUSPENSION ARM, LH

main57076-17010iAW11198412-198608

main57076-17011iAW11198608-198912

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-17902iAW11198412-198608

main57101-17905iAW11198608-198912

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-17902iAW11198412-198608

main57102-17907iAW11198608-198912

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-17010iAW11198412-198705

main57107-17020iAW11198705-198912

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-17010iAW11198412-198705

main57108-17020iAW11198705-198912

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57459-17010iAW11198412-198912

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57408-17010iAW11198412-198912

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-17902iAW11198412-198608

main57601-17904iAW11..CP198608-198912

main57601-17906iAW11..TBR198608-198912

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-17902iAW11198412-198608

main57602-17905iAW11..CP..5F198608-198912

main57602-17906iAW11..CP..4FC198608-198912

main57602-17908iAW11..TBR..5F198608-198912

main57602-17909iAW11..5F..SPC;AW11..TBR..4FC198608-198912

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-17020iAW11198412-198608

main57603-17021iAW11198608-198912

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-17020iAW11198412-198608

main57604-17021iAW11198608-198912

57605CROSSMEMBER SUB-ASSY, REAR

main57605-17010iAW11198412-198608

main57605-17011iAW11198608-198912

main57605-17020iAW11..SPC198803-198912

57628BPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-17020iAW11198412-198912

57629BPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-17020iAW11198412-198912

9011906075

main90119-06075

9011906309

main90119-06309

9011910336

main90119-10336

9011910344

main90119-10344

9011910357

main90119-10357

9033325001

main90333-25001

9033330002

main90333-30002

9095001025

main90950-01025

9095001059

main90950-01059

9095001258

main90950-01258

9095001259

main90950-01259

9095001359

main90950-01359

9095001410

main90950-01410

9095001426

main90950-01426

9095001461

main90950-01461

9161561020

main91615-61020

9165540616

main91655-40616

9165640818

main91656-40818

33 parts on this diagram · 2 diagrams in section
