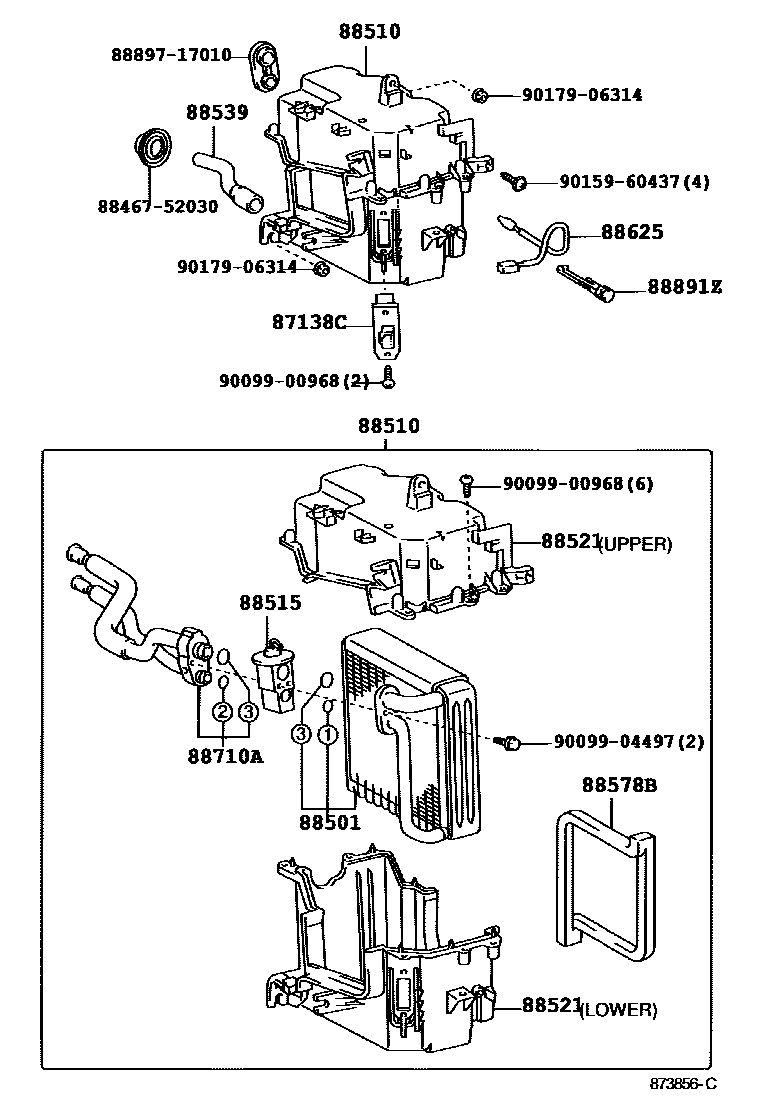

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

87138CRESISTOR, BLOWER

main87138-16140iZZW30199912-200006

main87138-17050iZZW30200006-200509

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-17070iZZW30..RHD199912-200509

main88501-17080iZZW30..LHD199912-200509

88510UNIT ASSY, COOLER

main88510-17290iZZW30..RHD199912-200509

main88510-17300iZZW30..LHD199912-200509

88515VALVE, COOLER EXPANSION

main88515-16060iZZW30199912-200310

main88515-16060iZZW30..EUR200208-200402

DEALER OPITON

main88515-28160iZZW30..EUR200402-200509

DEALER OPITON

main88515-28160iZZW30200311-200509

88521CASE, COOLER UNIT

main88521-17010iZZW30..RHD199912-200509

UPPER

main88521-17020iZZW30..RHD199912-200509

LOWER

main88521-17030iZZW30..LHD199912-200509

UPPER

main88521-17040iZZW30..LHD199912-200509

LOWER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-17050iZZW30..RHD199912-200509

main88539-17060iZZW30..LHD199912-200509

88578BPACKING, COOLING UNIT, NO.1

main88578-22210iZZW30199912-200509

88625THERMISTOR, COOLER, NO.1

main88625-17130iZZW30199912-200509

88710ATUBE ASSY, AIR CONDITIONER

main88710-17140iZZW30..RHD199912-200509

main88710-17150iZZW30..LHD199912-200509

88891ZBRACKET, COOLER THERMISTOR

main88891-20240iZZW30199912-200509

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8889717010VALVE, COOLER MAGNET

main88897-17010

9009900968

main90099-00968

9009904497

main90099-04497

9015960437

main90159-60437

9017906314

main90179-06314

16 parts on this diagram · 3 diagrams in section
