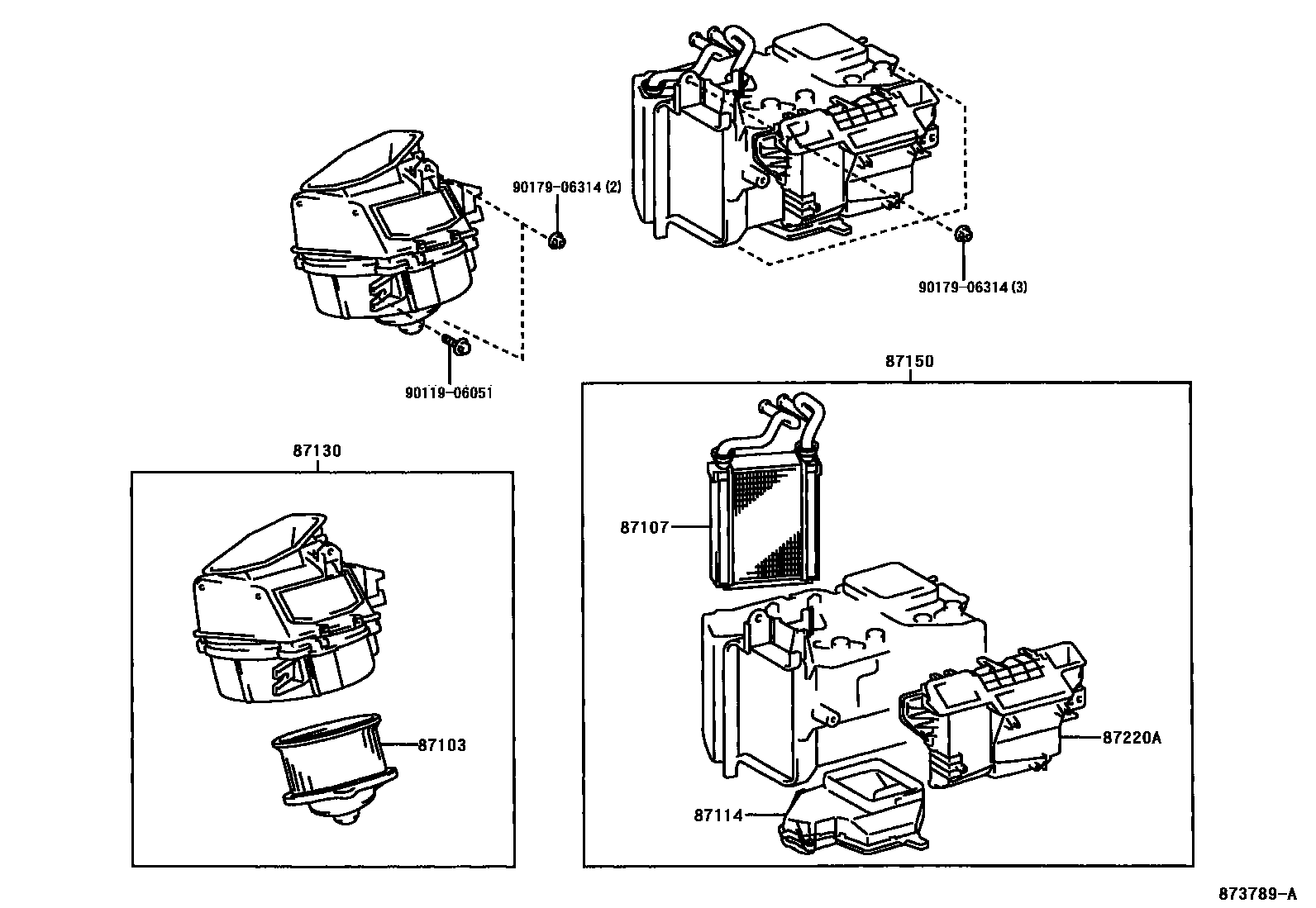

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-17030iZZW30..RHD199912-200509

main87103-17040iZZW30..LHD199912-200509

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-17090iZZW30..RHD199912-200509

main87107-17100iZZW30..LHD199912-200509

87114COVER, HEATER

main87114-17010iZZW30..RHD199912-200509

main87114-17020iZZW30..LHD199912-200509

87130BLOWER ASSY, HEATER, FRONT

main87130-17090iZZW30..RHD199912-200509

main87130-17100iZZW30..LHD199912-200509

87150RADIATOR ASSY, HEATER

main87150-17280iZZW30..RHD199912-200509

main87150-17290iZZW30..LHD199912-200509

87220ADUCT ASSY, HEATER RADIATOR AIR

main87220-17010iZZW30..RHD199912-200509

main87220-17020iZZW30..LHD199912-200509

9011906051

main90119-06051

9017906314

main90179-06314

8 parts on this diagram · 2 diagrams in section
