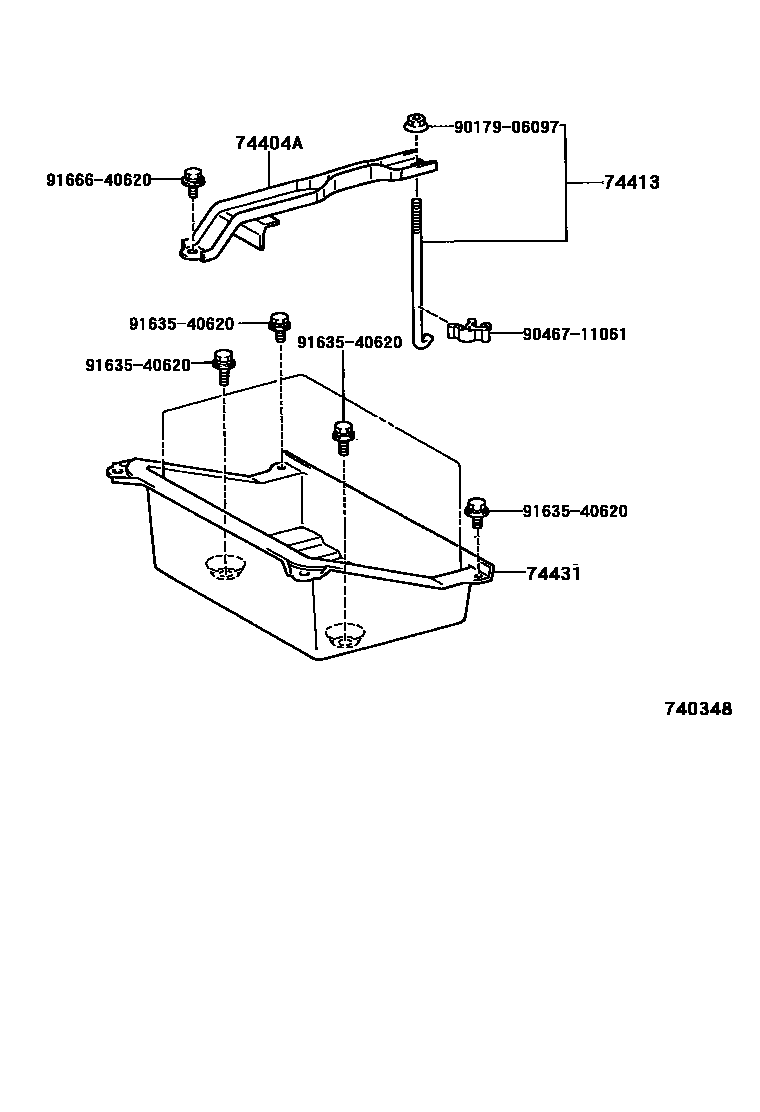

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-17070iSW20198912

main74404-17080iSW20..RHD..W198912-199208

W(55D23L BATTERY)

74413BOLT, BATTERY CLAMP

main74451-17010iSW20198912

74431TRAY, BATTERY

main74431-17010iSW20198912

9017906097

main90179-06097

9046711061

main90467-11061

9163540620

main91635-40620

9166640620

main91666-40620

7 parts on this diagram · 1 diagram in section
