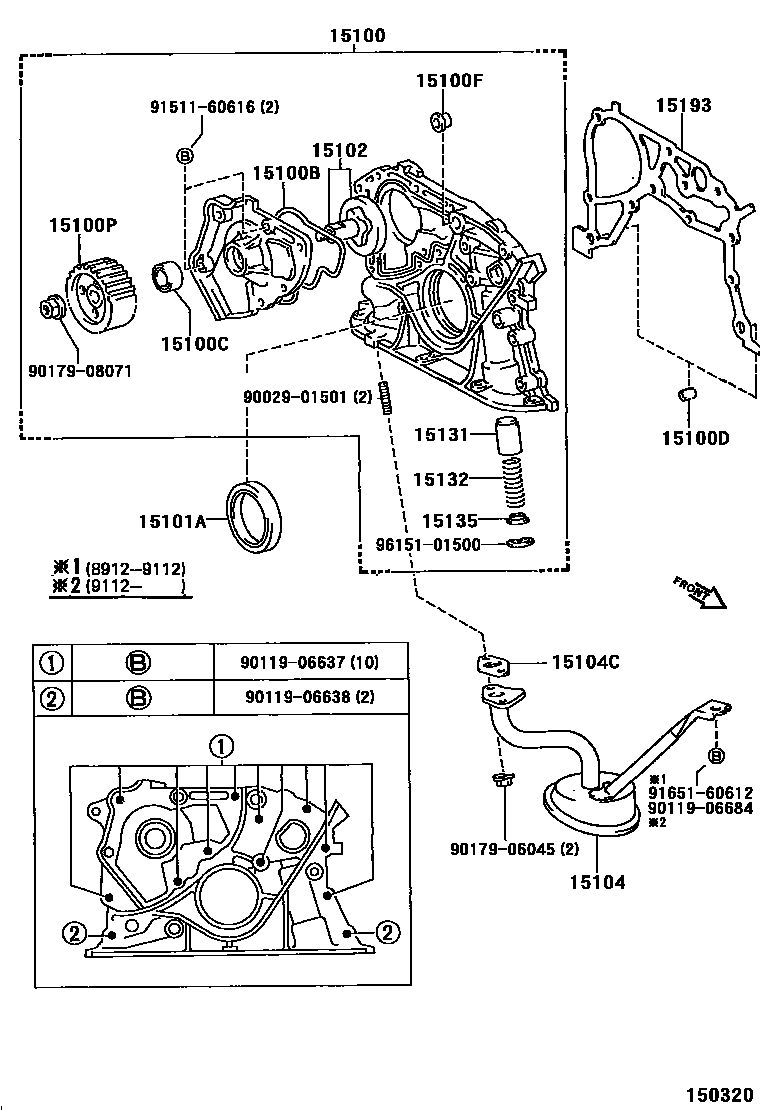

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-74010i3SFE..SW20198912-199208

main15100-88381i3SGE..SW20198912-199105

main15100-88382i3SGE..SW20199105-199311

main15100-88460i3SGE..SW20199311

15100BRING, O(FOR OIL PUMP)

main15188-63010i3S#..SW20198912-199105

main15188-88382i3SGE..SW20199105

15100CSEAL(FOR OIL PUMP)

main15165-70010i3S#..SW20198912-199105

main15165-88382i3SGE..SW20199105

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i3S#..SW20198912

15100FBUSH (FOR OIL PUMP)

main90029-38302i3S#..SW20198912-199511

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-74020i3SFE..SW20198912-199208

main13524-88360i3SGE..SW20198912-199311

main13524-88460i3SGE..SW20199311

15101ASEAL(FOR CRANKSHAFT)

main90311-42026i3S#..SW20198912

15102ROTOR SET, OIL PUMP

main15102-63010i3SFE..SW20198912-199208

15104STRAINER SUB-ASSY, OIL

main15104-88380i3S#..SW20198912-199311

main15104-88461i3SGE..SW20199311

15104CGASKET(FOR OIL STRAINER)

main15149-74020i3SFE..SW20198912-199208

main15149-88460i3SGE..SW20199311

main23293-88360i3SGE..SW20198912-199311

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE..SW20198912-199208

main15131-63010i3SGE..SW20198912-199311

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3SFE..SW20198912-199208

main15132-88380i3SGE..SW20198912-199311

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i3S#..SW20198912-199311

15193GASKET, OIL PUMP

main15197-63021i3S#..SW20198912-199311

main15197-88460i3SGE..SW20199311

9002901501

main90029-01501

9011906637

main90119-06637

9011906638

main90119-06638

9011906684

main90119-06684

9017906045

main90179-06045

9017908071

main90179-08071

9151160616

main91511-60616

9165160612

main91651-60612

9615101500

main96151-01500

23 parts on this diagram · 3 diagrams in section
