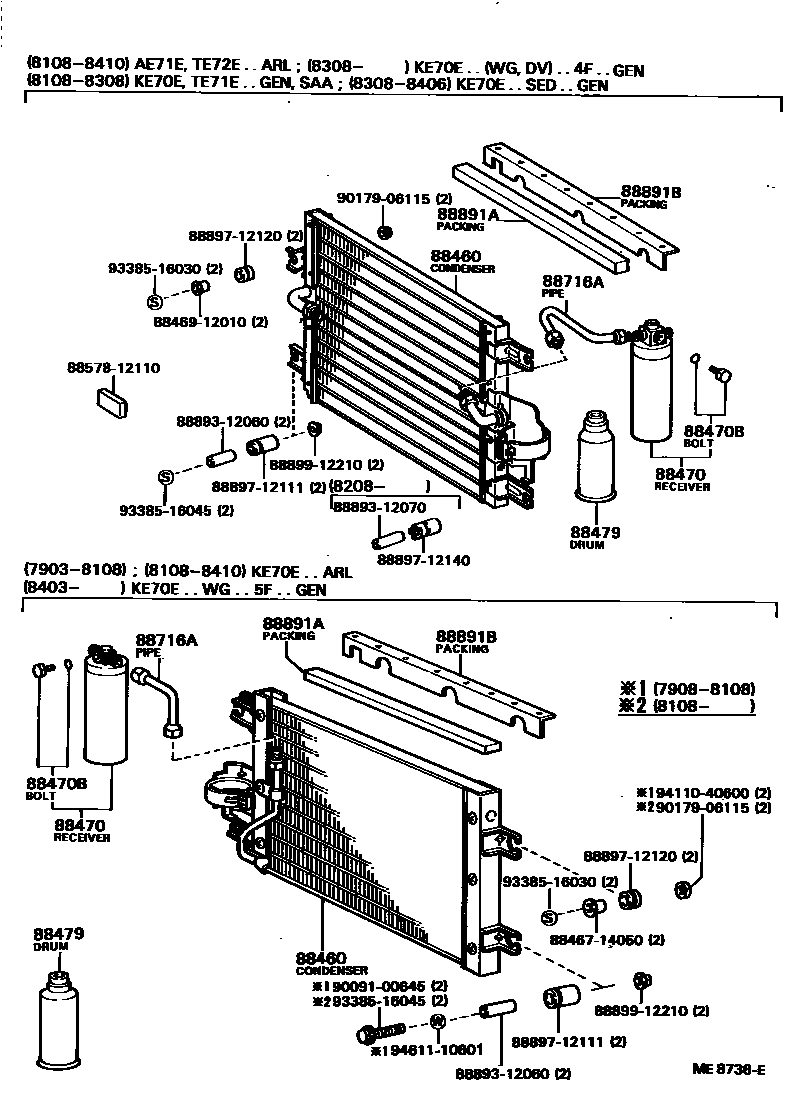

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0007 1 0009 1 0010 1 0011 1 0012 1

88460CONDENSER ASSY, COOLER

main88460-12110iKE70..LHD..DX198402-198707

main88460-12120iKE70..ARL198305-198410

main88460-12170iTE72..ARL198108-198305

main88460-12190iAE71..GEN198508-198707

88470RECEIVER & DRYER ASSY, COOLER

main88470-12050iKE70,TE71..GEN197908-198108

main88470-12061iKE70..LHD..DX198402-198404

main88470-12070iAE71198305-198410

main88470-14010iKE70..LHD..DX198404-198707

88470BBOLT, FUSE

main88475-12020iAE71,KE70..ARL198305-198410

main90099-04579iKE70..ARL198305-198410

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iTE72..ARL198108-198305

400G

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-12420iKE70..WG..5F..GEN198403-198707

main88716-12430iKE70..LHD..DX198402-198707

main88716-12540iKE70,TE71..(DX,GL)..GEN198308-198406

main88716-12630iAE71..GEN198508-198707

88891APACKING A (FOR COOLER)

main53291-12030iKE70..LHD..DX198402-198707

main53291-12050iKE70..SAA198305-198308

88891BPACKING B (FOR COOLER)

main53381-12110iKE70,TE71..GEN,SAA197908-198305

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8846912010SWITCH, PRESSURE CONTROL

main88469-12010

8857812110PAKING, COOLER AIR DUCT

main88578-12110

8889312060COLLAR (FOR COOLER IDLER PULLEY)

main88893-12060

8889312070COLLAR (FOR COOLER IDLER PULLEY)

main88893-12070

8889712111VALVE, COOLER MAGNET

main88897-12111

8889712120VALVE, COOLER MAGNET

main88897-12120

8889712140VALVE, COOLER MAGNET

main88897-12140

8889912210COVER, EVAPORATOR

main88899-12210

9009100645

main90091-00645

9017906115

main90179-06115

9338516030

main93385-16030

9338516045

main93385-16045

9411040600

main94110-40600

9461110601

main94611-10601

22 parts on this diagram · 9 diagrams in section
