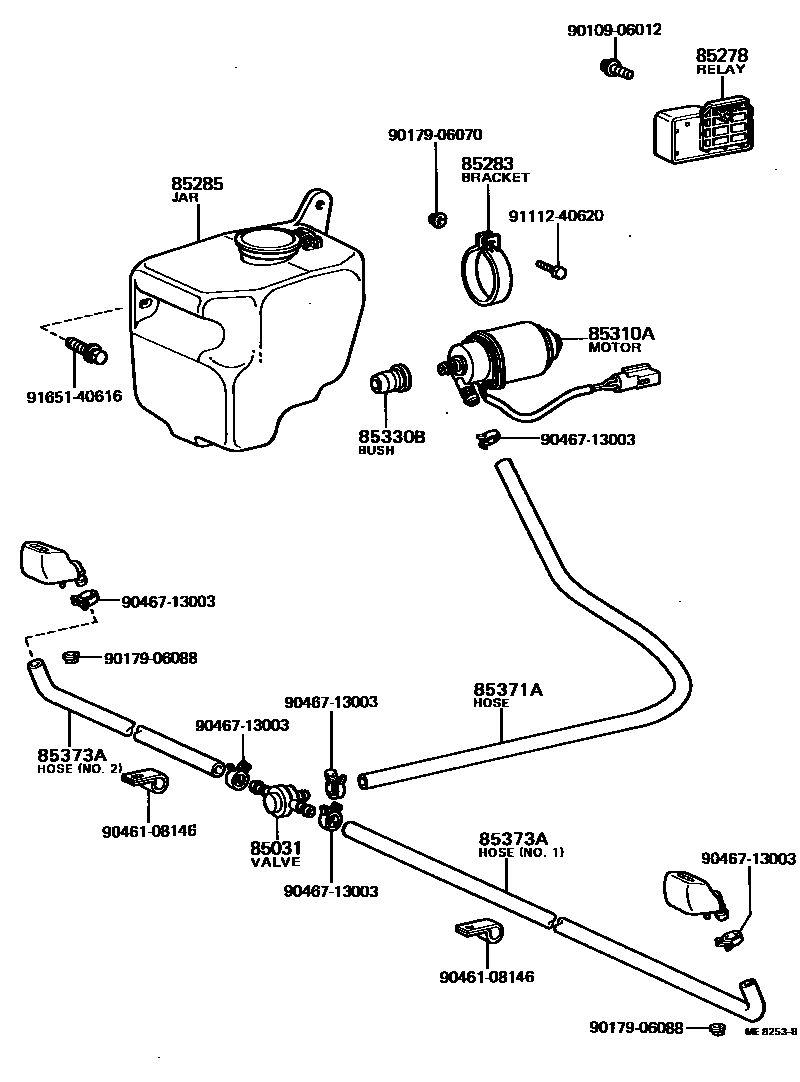

HEADLAMP CLEANER

0001 1 0004 1 0006 1 0007 1

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-12010iKE70..(DV,SED,WG)..LHD..EUG198003-198005

main85031-30020iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198305

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iKE70,TE72..SDN197908-198005

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-10070iKE70,TE7#..LHD..(DX,SR,STD,XE)..EUR198005-198108

85285JAR, HEADLAMP CLEANER WASHER

main85330-12140iKE70..(DV,SED,WG)..LHD..EUG198003-198005

main85330-12200iTE71..GT..EUG198108-198305

main85330-12260iCE70..LHD..DX198305-198707

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iCE70..LHD..DX; KE70..LHD..EUR198305-198707

main85310-16010iTE71..GT..EUG198108-198305

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main85336-10010iKE70,TE72..SDN197908-198005

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85271-87103iCE70..LHD..DX198305-198707

L=460

main90445-14036iKE70..LHD..EUR198305-198707

L=640(*H,L=460)

main90445-14060iTE71..GT..EUG198108-198305

L=115

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85271-12020iKE70..(DV,SED,WG)..LHD..EUG198003-198005

NO.2

main85271-12030iKE70..(DV,SED,WG)..LHD..EUG198003-198005

NO.1

main85271-22020iTE71..LHD..EUG;CE70,KE70,TE72..LHD..(DX,GL,STD)..EUR198108-198305

main85375-20190iCE70..LHD..DX; KE70..LHD..EUR198305-198707

L=90

main90445-14048iCE70..LHD..DX198305-198707

L=150

9010906012

main90109-06012

9017906070

main90179-06070

9017906088

main90179-06088

9046108146

main90461-08146

9046713003

main90467-13003

9111240620

main91112-40620

9165140616

main91651-40616

15 parts on this diagram · 4 diagrams in section
