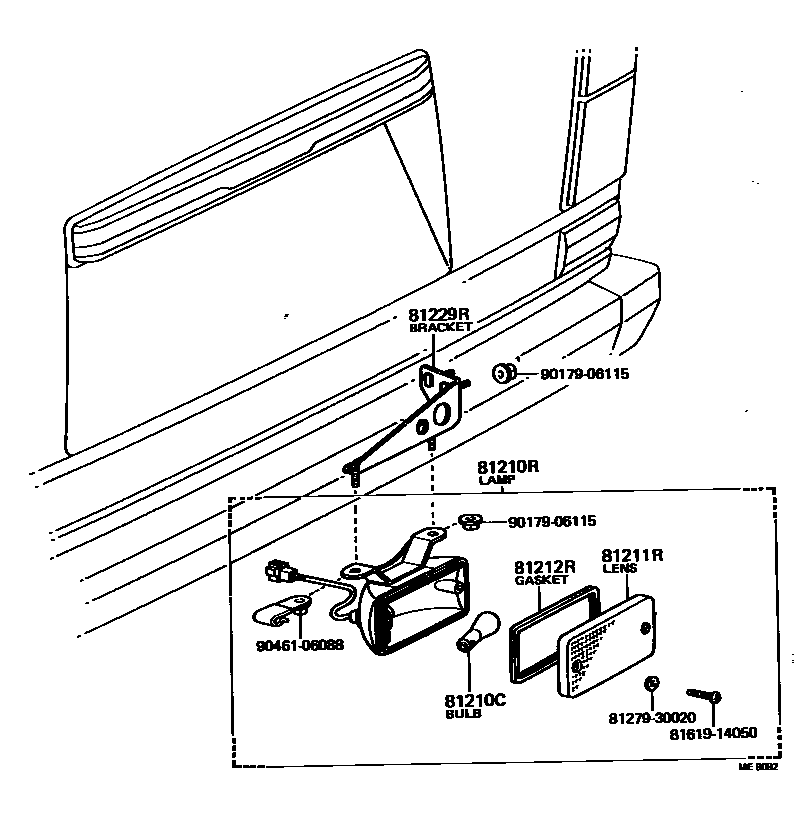

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210iCE70,KE70..WG..RHD..EUG197908-198707

12V 21W

81210RLAMP ASSY, REAR FOG

main81210-19035iCE70,KE70..WG..RHD..EUG197908-198707

81211RLENS, REAR FOG LAMP

main81211-95700iCE70,KE70..WG..RHD..EUG197908-198707

81212RGASKET, REAR FOG LAMP, NO.1

main81212-95700iCE70,KE70..WG..RHD..EUG197908-198707

81229RBRACKET, REAR FOG LAMP

main81481-12010iCE70,KE70..WG..RHD..EUG197908-198707

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8161914050

main81619-14050

9017906115

main90179-06115

9046106088

main90461-06088

9 parts on this diagram · 1 diagram in section
