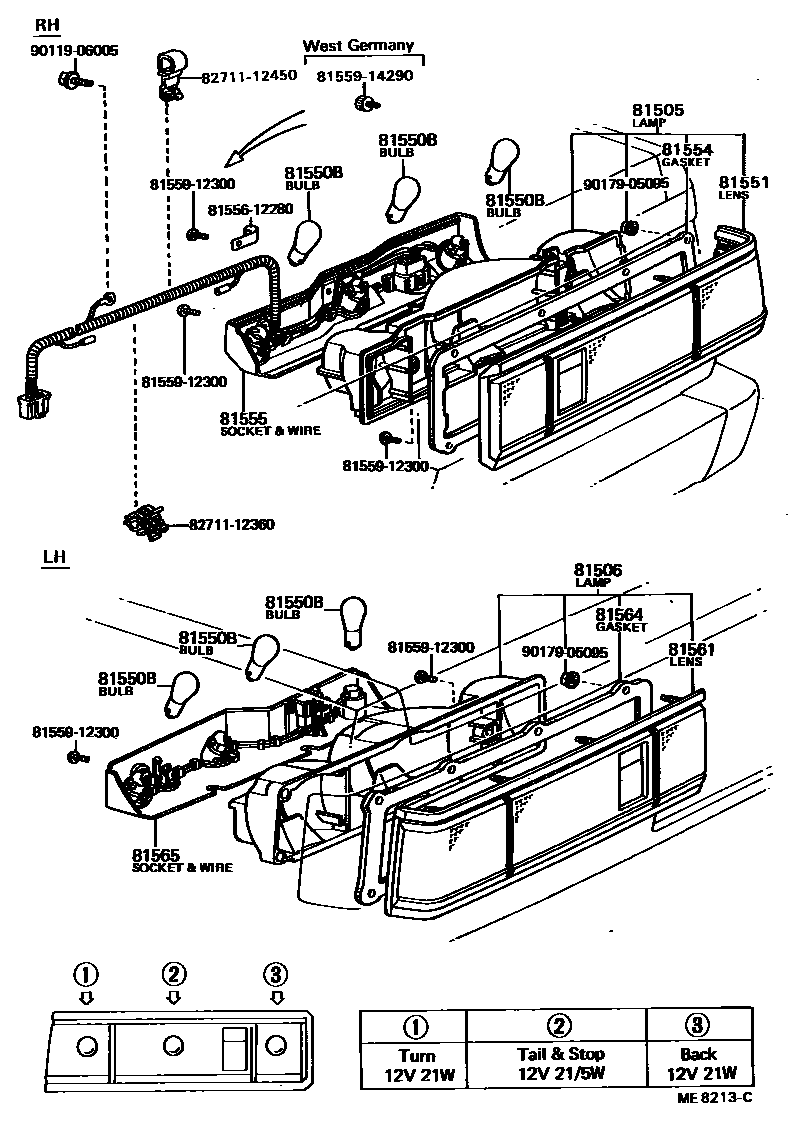

REAR COMBINATION LAMP

0001 1 0004 1 0006 1 0007 1 0008 1 0010 1 0012 1 0014 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-19236iKE70,TE7#..SED..SA198204-198502

main81505-19415iKE70,TE7#..SED..(ARL,SA)198108-198204

KOITO

main81505-19416iCE70,KE70..SED..EUR198108-198305

main81505-19425iKE70..SED..ARL198204-198305

IKI

main81505-19455iKE70,TE71..CP..DX197908-198002

CHROME PLATED

main81505-19465iKE70,TE71..CP198002-198108

BLACK

main81505-19485iKE70,TE7#..LB197908-198108

main81505-19545iKE70,TE71..CP..EUG198108-198305

main81505-19555iKE70,TE7#..LB..(ARL,GEN,SAA)198108-198406

main81505-19575iKE70,TE7#..LB..(EUG,SDN)198108-198305

main81505-19635iKE70,TE71..CP..GEN198108-198305

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-19106iKE70,TE7#..SED..SA198204-198502

main81506-19285iKE70,TE7#..SED..(ARL,SA)198108-198204

KOITO

main81506-19286iCE70,KE70..SED..EUR198108-198305

main81506-19295iKE70,TE7#..SED..(ARL,SA)198108-198204

IKI

main81506-19325iKE70,TE71..CP..DX197908-198002

CHROME PLATED

main81506-19335iKE70,TE71..CP198002-198108

BLACK

main81506-19355iKE70,TE7#..LB197908-198108

main81506-19405iKE70,TE71..CP..EUG198108-198305

main81506-19415iKE70,TE7#..LB..(ARL,GEN,SAA)198108-198406

main81506-19435iKE70,TE7#..LB..(EUG,SDN)198108-198305

main81506-19495iKE70,TE71..CP..GEN198108-198305

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80056iAE71,KE70..WG..ARL198108-198410

main81550-80057iKE70,TE71..DV,WG197908-198108

IKI

main81550-80121iAE71,KE70..2D..ARL198108-198406

main81550-80122iKE70..2D..ARL198108-198309

IKI

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iAE71,CE70,KE70,TE72..(DX,GL,SE,STD)..(ARL,EUR); AE71,KE70,TE71..(DV,WG)..SA198204-198707

12V 21W,12V 21W

main99132-11230×6iKE70,TE71..SED..SA;TE72..(GL,SE,XE)..(EUR,SA)198204-198502

12V 23W,12V 23W

main99132-21210×4iAE71,CE70,KE70,TE7#198108-198707

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-12511iKE70,TE71..SED..(GEN,SAA)198108-198406

main81551-12680iKE70,TE71..CP..DX197908-198002

CHROME PLATED

main81551-12690iKE70,TE71..CP198002-198108

BLACK

main81551-12750iTE7#..SE..SA198108-198204

main81551-12760iAE71,KE70..SED..ARL198204-198410

KOITO

main81551-12761iCE70,KE70..SED..EUR198108-198305

main81551-12790iKE70,TE7#..SED..(ARL,SA)198108-198204

IKI

main81551-13160iAE71,KE70..WG..ARL198108-198410

KOITO

main81551-13161iAE71,KE70..2D..ARL198108-198406

KOITO

main81551-13201iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

IKI

main81551-13260iKE70..WG..ARL198108-198305

IKI

main81551-1A030iKE70,TE71..CP..GEN198108-198305

main81551-1A050iKE70,TE71..CP..EUG198108-198305

IKI

main81551-1A070iKE70,TE7#..LB..(ARL,GEN,SAA)198108-198406

main81551-1A090iKE70,TE7#..LB..(EUG,SDN)198108-198305

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-12510iKE70,TE7#..SED..(ARL,SA)198108-198204

KOITO

main81554-12511iCE70,KE70,TE71..SED..(EUR,GEN,SAA)198108-198406

main81554-12520iKE70,TE7#..SED..(ARL,SA)198108-198204

IKI

main81554-12640iKE70,TE71..CP197908-198305

main81554-12710iTE7#..SE..SA198108-198204

main81554-13160iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

KOITO

main81554-13201iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

IKI

main81554-13210iAE71,KE70..WG..ARL198108-198410

KOITO

main81554-13220iKE70,TE71..DV,WG197908-198108

IKI

main81554-1A030iKE70,TE71..CP198108-198305

IKI

main81554-1A070iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)198108-198406

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-12512iKE70,TE7#..SED..SA198204-198502

main81555-12680iKE70,TE71..CP197908-198108

main81555-12750iTE7#..SE..SA198108-198204

main81555-12760iKE70,TE7#..SED197908-198108

KOITO

main81555-12761iCE70,KE70..SED..EUR198108-198305

main81555-12790iKE70,TE7#..SED..(ARL,SA)198108-198204

IKI

main81555-12840iKE70..RHD..5F..4D..GEN;KE70..LHD..4F..4D..DX..GEN198001-198011

W/URETHANE BUMPER

main81555-12841iKE70..RHD..5F..4D..GEN;KE70..SED..LHD..4F..4D..GEN198011-198108

W/URETHANE BUMPER

main81555-12850iTE71..5F..DX;KE70..LB..RHD..5F197912-198008

W/URETHANE BUMPER

main81555-12851iKE70..LB..RHD..5F;TE71..5F..(DX,XE)..GEN198008-198011

W/URETHANE BUMPER

main81555-13250iKE70,TE71..DV,WG197908-198108

KOITO

main81555-13251iAE71,KE70..2D..ARL198108-198406

KOITO

main81555-13260iKE70,TE71..DV,WG197908-198108

IKI

main81555-1A030iKE70,TE71..CP..GEN198108-198305

main81555-1A050iKE70,TE71..CP..EUG198108-198305

IKI

main81555-1A070iKE70,TE7#..LB..(ARL,GEN,SAA)198108-198406

main81555-1A090iKE70,TE7#..LB..(EUG,SDN)198108-198305

81561LENS, REAR COMBINATION LAMP, LH

main81561-12511iKE70,TE71..SED..(GEN,SAA)198108-198406

main81561-12680iKE70,TE71..CP..DX197908-198002

CHROME PLATED

main81561-12690iKE70,TE71..CP198002-198108

BLACK

main81561-12750iKE70,TE7#..LB197908-198108

main81561-12760iAE71,KE70..SED..ARL198204-198410

KOITO

main81561-12761iCE70,KE70..SED..EUR198108-198305

main81561-12790iKE70,TE7#..SED..(ARL,SA)198108-198204

IKI

main81561-13160iAE71,KE70..WG..ARL198108-198410

KOITO

main81561-13161iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

KOITO

main81561-13201iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

IKI

main81561-13260iKE70..WG..ARL198108-198305

IKI

main81561-1A030iKE70,TE71..CP..GEN198108-198305

main81561-1A050iKE70,TE71..CP..EUG198108-198305

IKI

main81561-1A070iKE70,TE7#..LB..(ARL,GEN,SAA)198108-198406

main81561-1A090iKE70,TE7#..LB..(EUG,SDN)198108-198305

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-12510iAE71,KE70..SED..ARL198204-198410

KOITO

main81554-12511iCE70,KE70,TE71..SED..(EUR,GEN,SAA)198108-198406

main81554-12710iKE70,TE7#..LB197908-198108

main81554-13160iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

KOITO

main81554-13210iAE71,KE70..WG..ARL198108-198410

KOITO

main81554-1A070iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..LB..(EUR,GEN,SAA)198108-198406

main81564-12520iKE70,TE7#..SED..(ARL,SA)198108-198204

IKI

main81564-12640iKE70,TE71..CP197908-198108

main81564-13201iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

IKI

main81564-13220iKE70..WG..ARL198108-198305

IKI

main81564-1A030iKE70,TE71..CP198108-198305

IKI

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-13250iAE71,KE70..WG..ARL198108-198410

KOITO

main81555-13251iAE71,CE70,KE70,TE71..(DV,WG)..(EUR,GEN,SA,SAA)198108-198707

KOITO

main81555-13260iKE70,TE71..DV,WG197908-198108

IKI

main81565-12511iKE70,TE71..SED..(GEN,SAA)198108-198406

main81565-12680iKE70,TE71..CP197908-198108

main81565-12750iTE7#..SE..SA198108-198204

main81565-12760iKE70,TE7#..SED197908-198108

KOITO

main81565-12761iCE70,KE70..SED..EUR198108-198305

main81565-12790iKE70,TE7#..SED..(ARL,SA)198108-198204

IKI

main81565-1A030iKE70,TE71..CP..GEN198108-198305

main81565-1A050iKE70,TE71..CP..EUG198108-198305

IKI

main81565-1A070iKE70,TE7#..LB..(ARL,GEN,SAA)198108-198406

main81565-1A090iKE70,TE7#..LB..(EUG,SDN)198108-198305

8155612280RIM, REAR COMBINATION LAMP, RH

main81556-12280

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

8155914290MOULDING, REAR COMBINATION LAMP, RH

main81559-14290

8271112360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12360

8271112450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12450

9011906005

main90119-06005

9017905095

main90179-05095

17 parts on this diagram · 8 diagrams in section
