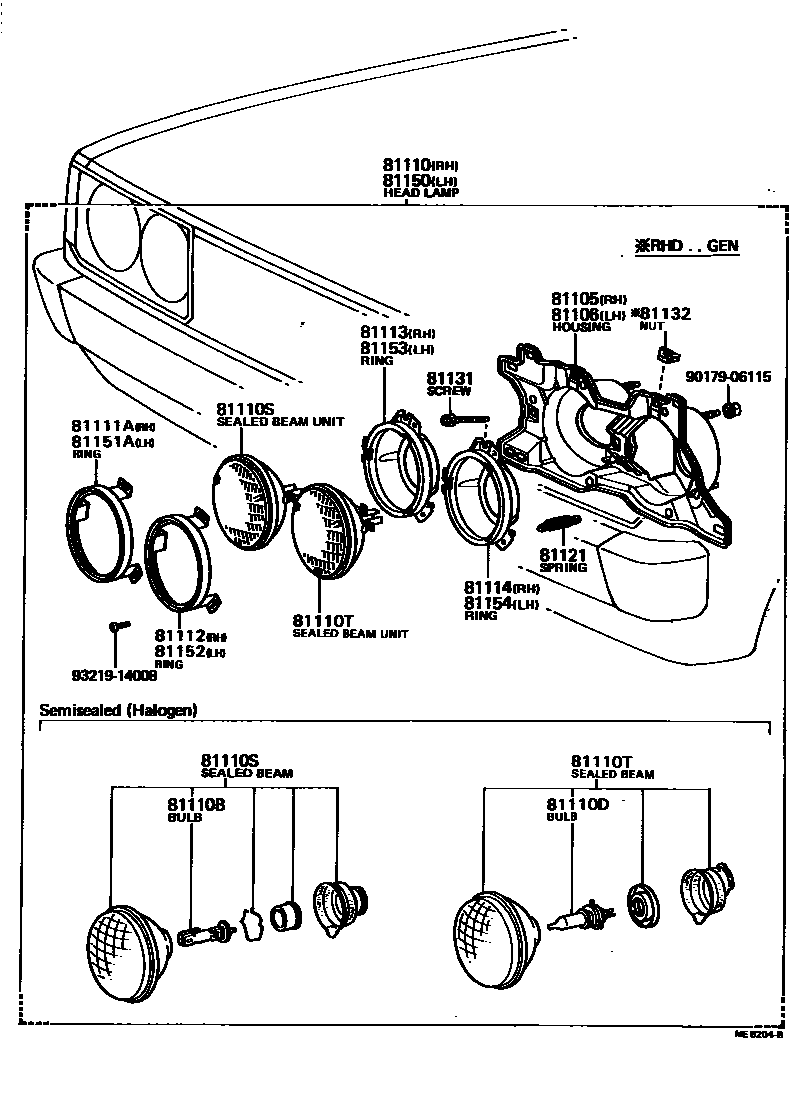

HEADLAMP

0001 1 0002 1 0006 1 0010 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-12550iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

main81105-12560iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-12480iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

main81106-12490iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

81110HEADLAMP ASSY, RH

main81110-80021iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

KOITO

main81110-80022iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

IKI

main81110-80023iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN)197908-198008

KOITO

main81110-80024iKE70,TE7#..SED..SA198007-198204

IKI

main81110-80025iKE70..DX..SA198011-198204

HALOGEN

main81110-80029iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

KOITO

main81110-80030iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

IKI

main81110-80031iKE70,TE71..LHD..GEN198008-198108

KOITO

main81110-80032iKE70,TE71..(CP,LB)..LHD..GEN197908-198008

IKI

main81110-80033iKE70,TE71..RHD..EUG197908-198108

SEMI-SEALED TYPE,WHITE

main81110-80034iKE70,TE71..(CP,LB)..LHD..GEN; KE70,TE71..LHD..(DX,SR,STD,XE)..EUG197908-198008

SEMI-SEALED TYPE,WHITE

main81110-80035iKE70,TE7#..LHD..EUR197908-198108

HALOGEN,WHITE

main81110-80036iKE70,TE71..(CP,LB)..LHD..GEN; KE70,TE71..LHD..(DX,SR,STD,XE)..EUG197908-198008

SEMI-SEALED TYPE,WHITE; SEMI-SEALED TYPE,YELLOW

main81110-80037iKE70,TE71..RHD..EUG197908-198002

HALOGEN,WHITE

main81110-80038iKE70,TE71..LHD..EUG197908-198108

HALOGEN,YELLOW

main81110-80058iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

SEMI-SEALED TYPE,WHITE

main81110-80059iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

SEMI-SEALED TYPE,YELLOW

main81110-80123iKE70..(DX,GL)..ARL198108-198305

KOITO

main81110-80154iKE70..2D..ARL198108-198309

main81110-80158iCE70,KE70,TE71..(DV,SED,WG)..RHD..(EUR,GEN)198108-198305

main81110-80159iKE70..SAA198305-198308

main81110-80160iKE70..SAA198305-198308

HALOGEN,WHITE

main81110-80161iCE70,KE70..(DV,SED,WG)..LHD..EUG198108-198305

SEMI-SEALED TYPE,YELLOW

main81110-80162iKE70,TE7#..4D..SA198204-198305

HALOGEN

main81110-80163iCE70,TE71..LHD..EUG198205-198305

HALOGEN,YELLOW

main81110-80165iKE70,TE71..STD..SA198305-198707

main81110-80166iAE71,KE70..(DX,GL)..ARL198305-198410

KOITO

main81110-80169iTE71..SAA198305-198308

HALOGEN,WHITE

main81110-80170iKE70,TE71..(CP,LB)..LHD..(DX,XE)..EUG198108-198305

SEMI-SEALED TYPE,YELLOW

main81110-80171iKE70,TE71..(CP,LB)..LHD..EUG; KE70..(CP,LB)..LHD..GEN198108-198305

HALOGEN,YELLOW

main81110-80172iKE70,TE71..(CP,LB)..RHD..(EUR,GEN)198108-198406

main81110-80173iTE72..(SE,XE)..(EUR,SA)198204-198401

HALOGEN

main81110-80174iTE71..SAA198305-198308

main81110-80333iCE70,KE70..RHD..(EUR,GEN)198305-198707

main81110-80334iKE70..4D..STD198508-198707

HALOGEN,WHITE,BAHAMA SPEC

main81110-80335iCE70,KE70..RHD..EUG198308-198707

NATO SPEC

main81110-80336iAE71,CE70,KE70..LHD..(EUR,GEN)198305-198707

HALOGEN,WHITE

main81110-80337iAE71,CE70,KE70..LHD..(EUR,GEN)198305-198707

HALOGEN,YELLOW

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iKE70,TE71..(DX,SR,STD,XE)..EUG; KE70,TE71..LHD..GEN197908-198108

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014×2iTE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE)197908-198108

12V 45/40W,YELLOW,12V 45/40W,YELLOW

main90981-13015×2iAE71,KE70..(DX,GL)..ARL198305-198410

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

main90981-13016×2iKE70,TE71..LHD..EUG197908-198108

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

main90981-13022×2iKE70,TE71..STD..SA;KE70..4D..STD..ARL198305-198707

12V 65/60W,WHITE,12V 65/60W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13013×2iKE70,TE71..LHD..GEN197908-198008

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014×2iKE70,TE71..LHD..GEN197908-198008

12V 45/40W,YELLOW,12V 45/40W,YELLOW

81110SSEALED BEAM UNIT, NO.1

main90981-02011×2iKE70,TE71..(DV,SED,WG)..GEN197908-198008

12V 37.5W,*WB,12V 37.5W,KOITO

main90981-02018×2iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED

main90981-02020×2iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW

main90981-02039×2iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

12V 37.5W,*WB,12V 37.5W,IKI

main90981-02044×2iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

12V 37.5W,IKI

main90981-04001×2iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN)197908-198008

12V 65/55W,*WB,12V 65/55W, KOITO

main90981-04002×2iKE70,TE7#..(CP,LB)..RHD..(ARL,GEN)197908-198008

12V 65/55W,IKI

main90981-04003×2iKE70,TE71..(CP,LB)..LHD..GEN197908-198008

12V 65/55W,*WB,12V 65/55W,IKI

main90981-04004×2iKE70,TE71..(CP,LB)..LHD..GEN197908-198008

12V 65/55W,*WB,12V 65/55W,KOITO

main90981-04005×2iKE70,TE71..RHD..EUG197908-198108

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-04006×2iKE70,TE71..(CP,LB)..LHD..GEN; TE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE)197908-198108

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-04007×2iTE71..GT..GEN;KE70..(CP,DV,LB)..LHD;KE70..(SED,WG)..LHD..GEN;KE70..(SED,WG)..LHD..EUG;TE71..LHD..(DX,SE,SR,STD,XE)197908-198108

12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW

main90981-04008×2iKE70,TE7#..LHD..EUR197908-198108

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

main90981-04009×2iKE70,TE71..LHD..EUG197908-198108

12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW

main90981-04010×2iTE7#..(GL,SE)..SA198007-198204

12V 60/55W,*HWS,12V 60/55W,HALOGEN

main90981-04011×2iKE70,TE71..RHD..EUG197908-198002

12V 60/55W,*HWS,12V 60/55W,HALOGEN,WHITE

main90981-04015×2iKE70..(DX,GL)..ARL198108-198305

12V 65/55W,*WB,12V 65/55W, HALOGEN

81110TSEALED BEAM UNIT, NO.2

main90981-02012×2iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

main90981-02013×2iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

main90981-02019×2iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

12V 45/40W,*WSB,12V 45/40W,SEMI-SEALED,WHITE

main90981-02021×2iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

12V 45/40W,*YSB,12V 45/40W,SEMI-SEALED,YELLOW

main90981-02040×2iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

12V 37.5/50W,*WB,12V 37.5/50W,IKI

main90981-02041×2iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

12V 37.5/50W,*WB,12V 37.5/50W,IKI

81111RING, SEALED BEAM RETAINING

main81111-16010iKE70..4D..STD..ARL198108-198305

IKI

main81111-16020×2iKE70..(DX,GL)..ARL; KE70..4D..STD..ARL198108-198305

KOITO

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14261iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81111-20280iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-14261iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81111-20280iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-12571iKE70..2D..ARL198108-198309

main81113-14260iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81113-20100iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

main81153-16010iKE70,TE7#..ARL,EUR,SA;KE70,TE71..(CP,LB)..GEN197908-198008

IKI

main81153-16020iKE70..(DX,GL)..ARL; KE70..4D..STD..ARL198108-198305

KOITO

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81154-14260iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81154-20100iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

81121SPRING, HEADLAMP TENSION

main81121-12570×2iKE70..2D..ARL198108-198309

main81121-16010×2iKE70,TE7#..SA198108-198204

IKI

main81121-16020×2iKE70,TE7#..ARL,EUR,SA;KE70,TE71..(CP,LB)..GEN197908-198008

KOITO

main81121-20100×4iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

main90506-18018×4iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4iKE70..(DX,GL)..ARL; KE70..4D..STD..ARL198108-198305

KOITO

main81131-16010×4iKE70..4D..STD..ARL198108-198305

IKI

main81131-20043×8iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

main81131-20053×8iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

81132NUT, HEADLAMP SELF LOCKING

main81132-20380×8iKE70,TE71..(DV,SED,WG)..GEN197908-198008

main90189-05013×4iKE70,TE7#..ARL,EUR,SA;KE70,TE71..(CP,LB)..GEN197908-198008

main90189-05015×4iKE70,TE7#198008-198305

81150HEADLAMP ASSY, LH

main81150-80021iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

KOITO

main81150-80022iKE70,TE71..(DV,SED,WG)..RHD..GEN197908-198008

IKI

main81150-80023iKE70,TE7#..RHD..(ARL,GEN)198008-198108

KOITO

main81150-80024iKE70..4D..STD..ARL198108-198305

IKI

main81150-80025iTE7#..(GL,SE)..SA198007-198204

SEMI-SEALED TYPE,HALOGEN

main81150-80029iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

KOITO

main81150-80030iKE70,TE71..(DV,SED,WG)..LHD..GEN197908-198008

IKI

main81150-80031iKE70,TE71..(CP,LB)..LHD..GEN197908-198008

KOITO

main81150-80032iKE70,TE71..LHD..GEN198008-198108

IKI

main81150-80033iKE70,TE71..RHD..EUG197908-198108

SEMI-SEALED TYPE,WHITE

main81150-80034iKE70,TE71..(CP,LB)..LHD..GEN; KE70,TE71..LHD..(DX,SR,STD,XE)..EUG197908-198008

SEMI-SEALED TYPE,WHITE

main81150-80035iKE70,TE7#..LHD..EUR197908-198108

HALOGEN,WHITE

main81150-80036iTE71..GT..GEN;KE70..LHD..4D..EUG;KE70..SED..LHD..2D..EUG;KE70..(SED,WG)..LHD..GEN;TE71..LHD..(DX,SE,SR,STD,XE);KE70..(CP,DV,LB,WG)..LHD..2D198008-198108

SEMI-SEALED TYPE,YELLOW

main81150-80037iKE70,TE7#..RHD..(ARL,EUR)198002-198108

HALOGEN,WHITE

main81150-80038iKE70,TE71..LHD..EUG197908-198108

HALOGEN,YELLOW

main81150-80055iKE70,TE71..(DV,SED,WG)..LHD197908-198008

SEMI-SEALED TYPE,WHITE

main81150-80056iKE70,TE71..(DV,SED,WG)..LHD197908-198008

SEMI-SEALED TYPE,YELLOW

main81150-80120iKE70..(DX,GL)..ARL198108-198305

main81150-80151iKE70..2D..ARL198108-198309

main81150-80155iKE70,TE71..STD..SA198204-198305

main81150-80156iTE71..(SED,WG)..LHD;KE70..LHD..(GL,STD,XL);CE70,KE70..(SED,WG)..LHD..DX..EUG;KE70..(SED,WG)..LHD..DX..(GEN,SAA)198108-198305

main81150-80157iCE70,KE70,TE71..(DV,SED,WG)..LHD198108-198305

HALOGEN,WHITE

main81150-80158iCE70,KE70..(DV,SED,WG)..LHD..EUG198108-198305

SEMI-SEALED TYPE,YELLOW

main81150-80159iKE70,TE7#..4D..SA198204-198305

HALOGEN

main81150-80160iKE70..SED..LHD..DX..GEN;KE70..(SED,WG)..LHD..DX..EUG;KE70..LHD..(GL,STD,XL)..(EUR,GEN)198108-198305

HALOGEN,YELLOW

main81150-80162iKE70..4D..STD..ARL198305-198410

main81150-80163iAE71,KE70..(DX,GL)..ARL198305-198410

main81150-80166iTE71..SAA198305-198308

HALOGEN,WHITE

main81150-80167iKE70,TE71..(CP,LB)..LHD..(DX,XE)..EUG198108-198305

SEMI-SEALED TYPE,YELLOW

main81150-80168iKE70,TE71..(CP,LB)..LHD..EUG; KE70..(CP,LB)..LHD..GEN198108-198305

HALOGEN,YELLOW

main81150-80169iKE70,TE71..(CP,LB)..RHD..(EUR,GEN)198108-198406

main81150-80170iTE72..(SE,XE)..(EUR,SA)198204-198401

HALOGEN

main81150-80171iTE71..SAA198305-198308

main81150-80330iAE71,KE70..LHD..GEN198308-198707

BAHAMA SPEC

main81150-80331iKE70..LHD..GEN198308-198707

HALOGEN,WHITE,BAHAMA SPEC

main81150-80332iCE70,KE70..RHD..EUG198308-198707

NATO SPEC

main81150-80333iCE70,KE70..RHD..EUG198308-198707

HALOGEN,WHITE,NATO SPEC

main81150-80334iAE71,CE70,KE70..LHD..(EUR,GEN)198305-198707

HALOGEN,YELLOW

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14261iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81111-20280iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-14261iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81111-20280iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16010iKE70,TE7#..ARL,EUR,SA;KE70,TE71..(CP,LB)..GEN197908-198008

IKI

main81113-16020iKE70,TE7#..SA198108-198204

KOITO

main81153-12501iKE70..2D..ARL198108-198309

IKI

main81153-14260iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81153-20100iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-14260iKE70,TE71..(DV,SED,WG)..GEN197908-198008

IKI

main81114-20100iKE70,TE71..(DV,SED,WG)..GEN197908-198008

KOITO

9017906115

main90179-06115

9321914008

main93219-14008

22 parts on this diagram · 4 diagrams in section
