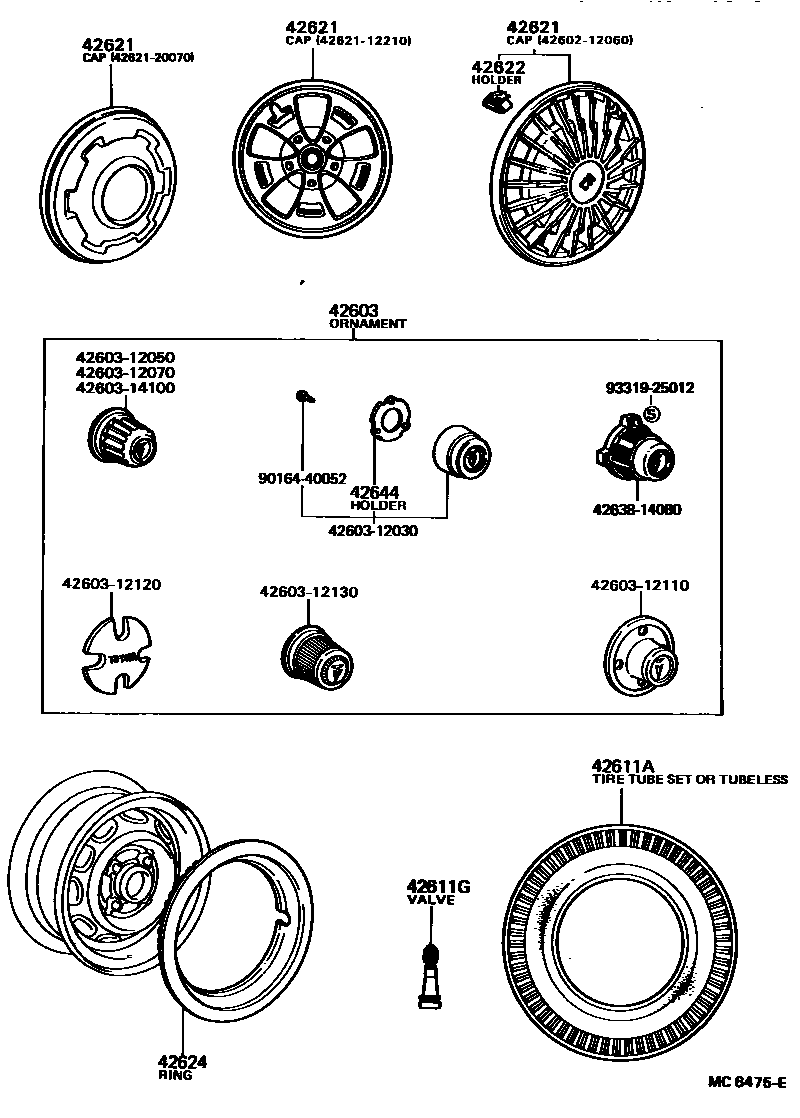

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030×4iTE71..GT,SE,SR,XE197908-198305

5J-13 DISC WHEEL

main42603-12050×4iAE71,KE70,TE71..(DV,WG)..(GEN,SAA); CE70,KE70..(DV,WG)..STD..EUG198108-198707

MAROON

main42603-12070×4iKE70..(LB,SED)..(DX,STD)..(GEN,SAA)198204-198406

MAROON

main42603-12110×4iKE70..GL;KE70..SDN,SDZ; TE71..SR,XE;TE72..ARL,EUR198108-198305

main42603-12120×4iTE71..GT,SR,XE198108-198204

ALUMI WHEEL

main42603-12130×4iKE70,TE71..DX..SA198204-198502

main42603-14100×4iKE70,TE71..(CP,LB)..(DX,SE,SR,XE); KE70,TE71..SED..(EUR,GEN)197908-198108

BLACK

main42638-14080×4iAE71,KE70..GL..ARL198108-198410

ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-10060×4iKE70198508-198707

155SR13,W/T

main42605-12030×4iTE7#198007-198305

175/70HR13,W/T

main42605-12040×4iKE70197908-198508

155SR13,W/T

main42605-12050×4iKE70197908-198406

6.15-13-4,W/T,*(Y)

main42605-14012×4iTE72197908-198108

165SR13,W/T

main42605-16030×4iTE71197908-198108

6.15-13-4,W/T,*(B),*(D),*(T)

main42605-22110×4iTE72198305-198404

185/70HR13,W/T

main42652-12100×4iKE70197908-198406

6.15-13-4,T/L,*(Y)

main42652-12170×4iTE72..ARL198003-198007

185/70HR13,T/L

main42652-12220×4iAE71,KE70197908-198707

155SR13,T/L

main42652-12390×4iTE72198007-198305

185/70SR13

main42652-12490×4iAE71,KE70198108-198406

155SR13,T/L

main42652-12500×4iTE72198108-198305

165SR13,T/L

main42652-12680×4iAE71,KE70198508-198707

155SR13

main42652-13010×4iAE71,KE70198108-198707

6.15-13-6,T/L

main42652-14140×4iCE70,TE7#197908-198305

165SR13,T/L,*(B),*(D),*(T)

main42652-14170×4iTE71197908-198208

185/70HR13,T/L,*(D)

main42652-14180×4iTE71;TE72..4FC,5F198208-198305

185/70HR13,T/L,*(B),*(T),*(Y)

main42652-14290×4iCE70198305-198707

165SR13,T/L,*(Y)

main42652-16030×4iKE70197908-198406

6.15-13-4,T/L,*(B),*(D),*(T)

main98021-61133×4iAE71,KE70198108-198707

6.15-13-6,W/T

main98938-65130×4iAE71,TE7#197908-198707

165SR13,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iKE70..SAA198108-198308

42621CAP, WHEEL

main42602-12060×4iAE71..SA198501-198707

main42621-12210×4iKE70..LB..LHD..5F..GEN198112-198305

main42621-20070×4iKE70,TE71..2D..SA198211-198707

42622HOLDER, WHEEL CAP

main42622-14010×32iKE70,TE71..GL..GEN; KE70..LB..LHD..5F198208-198305

42624RING, WHEEL CAP

main42624-12011×4iTE7#..GL,SE,SR,XE198012-198104

main42624-12012×4iTE7#..GL,SE,SR,XE198104-198108

main42624-14023×4iTE71..GT,SE,SR,XE197908-198104

5J-13 DISC WHEEL

main42624-14024×4iTE71..GT,SE,SR,XE; TE72..ARL198104-198112

5J-13 DISC WHEEL

main42624-14025×4iTE71..GT,SR,XE; TE72..(SE,XE)..(ARL,EUR)198112-198305

5J-13 DISC WHEEL

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14041×4iTE71..GT,SE,SR,XE197908-198305

5J-13,WHEEL DISC

4260212060CAP SUB-ASSY, WHEEL

main42602-12060

4260312030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12030

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070

4260312110ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12110

4260312120ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12120

4260312130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12130

4260314100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14100

4262112210CAP, WHEEL

main42621-12210

4262120070CAP, WHEEL

main42621-20070

4263814080

main42638-14080

9016440052

main90164-40052

9331925012

main93319-25012

20 parts on this diagram · 2 diagrams in section
