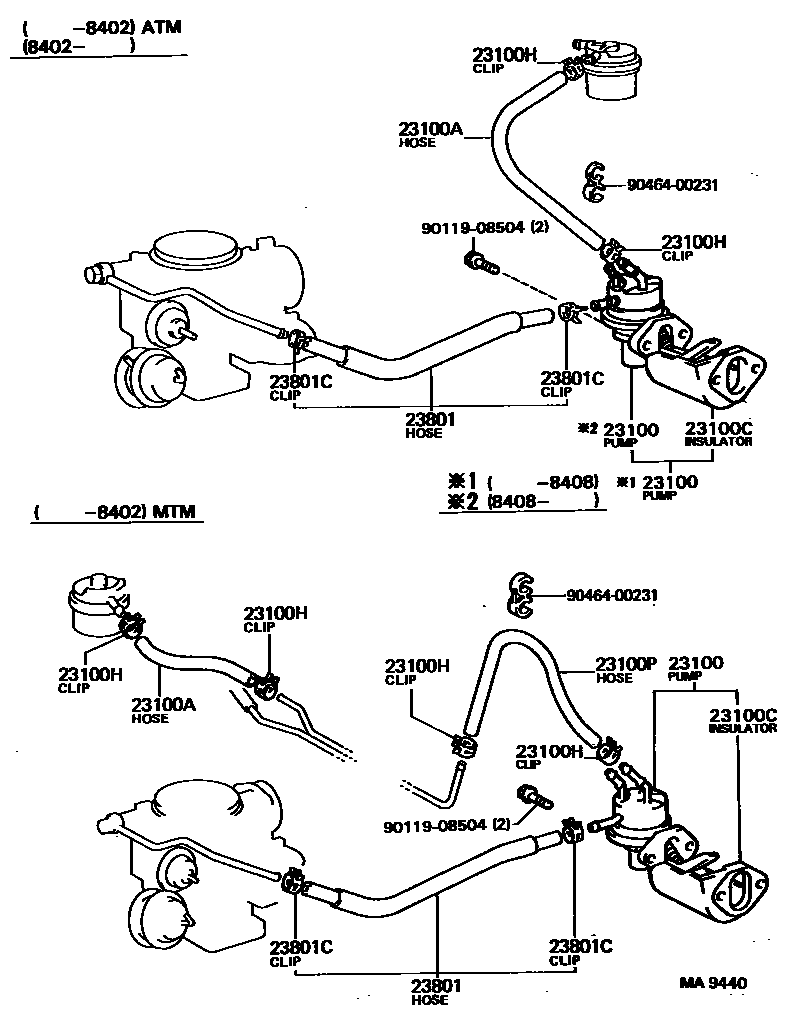

FUEL PUMP & PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

23100PUMP ASSY, FUEL

main23100-15042i4A#..AE71198408-198707

main23100-19086i4KC..KE70..2D..ARL198108-198202

main23100-19087i4KC..KE70..2D..ARL198202-198309

main23100-19106i2T,2TB..TE71..EUR,SAA198108-198305

main23100-19125i4K#..KE70197908-198108

main23100-19126i4K..KE70..SAA198305-198308

main23100-19145i4AC..AE71198305-198311

main23100-19146i4AC..AE71198311-198408

main23100-19215i4K#..KE70..EUR,GEN,SA198305-198707

main23100-29096i2TG..TE71197908-198108

main23100-29097i2TG..TE71198108-198305

main23100-29195i4KC..KE70..4D..ARL198108-198305

main23100-29196i4KC..KE70..4D..ARL198305-198410

main23100-29295i3TC..TE72197908-198108

main23100-29296i3TC..TE72198108-198305

main23100-29305i2T,2TB,3T..TE7#197908-198108

main23100-29306i2T,2TB,3T..TE7#..GEN,SA198108-198502

23100AHOSE, FUEL

main23271-28040i3TC..TE72197908-198305

L=340

main95332-06020i4AC..AE71..MTM198305-198402

*H,L=150

main95332-06030i4A..AE71..GEN; 4A..AE71..SA198508-198701

*H,L=220; *H,L=260

main95332-06040i2TG..TE71197908-198305

*H,L=320

main95333-06030i4A..AE71..GEN; 4A..AE71..SA198701-198707

*H,L=220; *H,L=260

main95333-06040i4K#..KE70198701-198707

*H,L=320

23100CINSULATOR, FUEL PUMP

main23915-15010i4A#..AE71198305-198502

main23915-15011i4A..AE71198502-198707

main90923-06001i2T#,3T#..TE7#197908-198502

main90923-06003i4K#..KE70197908-198707

23100HCLIP(FOR FUEL HOSE)

main96132-30600×4i2T#,3T#..TE7#; 4A#..AE71; 4K#..KE70..EUR,GEN,SA,SAA197908-198707

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06030i4AC..AE71..MTM198305-198402

*H,L=280

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23271-15010i4A#..AE71198305-198707

main23801-13030i4KC..KE70..2D..ARL198108-198202

main23801-13050i4KC..KE70..2D..ARL198202-198309

main23801-13051i4KC..KE70..SDZ;4K..KE70..GEN,SA198308-198612

main23801-13120i4K#..KE70198612-198707

main23801-24061i4K..KE70..EUG198308-198612

main23811-88220i2TG..TE71197908-198305

main95332-06030i2TB..TE71197908-198305

L=300(*H,L=260)

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i2T,2TB,3T#..TE7#; 4A#..AE71; 4K#..KE70197908-198707

9011908504

main90119-08504

9046400231

main90464-00231

9 parts on this diagram · 5 diagrams in section
