ANTENNA

0001 1 0002 1 0003 1 0004 1

86101CORD SUB-ASSY, ANTENNA

main86101-02310iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201407

LIGHT GRADE

main86101-02310iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201407

LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS

main86101-02310iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201407

ANTENNA-POLE ANTENNA & WITHOUT(CABLE)

main86101-02311iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201408-201505

LIGHT GRADE

main86101-02311iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201408-201505

ANTENNA-POLE ANTENNA & WITHOUT(CABLE)

main86101-02311iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201408-201505

LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS

main86101-02311iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD201505

LIGHT GRADE&AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86101-02320iZWE186..RHD..G201210-201505

ANTENNA-POLE ANTENNA & WITHOUT(CABLE)

main86101-02320iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201505

LIGHT GRADE

main86101-02320iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201505

LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS

main86101-02320iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD201505

LIGHT GRADE&AUDIO-RADIO LESS & WITHOUT(SPEAKER)

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-02280iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505

LIGHT GRADE&AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86101-02280iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

main86101-02480iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

LIGHT GRADE&AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86101-02480iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02270iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

main86300-02300iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

main86300-02500-A0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505

SUPER WHITE 2,040

main86300-02500-A1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505

WHITE PEARL CS.,070

main86300-02500-B0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505

SILVER ME.,1F7

main86300-02500-B1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505

GRAY ME.,1G6

main86300-02500-B2iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505-201710

DK. STEEL MC.,1H2

main86300-02500-B3iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201604

GRAY ME.,1G2

main86300-02500-B4iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201710

CEMENT GRAY ME.,1H5

main86300-02500-C0iNDE180,NRE185,WWE185,ZRE185,ZWE186..HB..S201505

BLACK MC.,209 ,2KR ,2PN ,2PP ,2QS ,2QT

main86300-02500-C0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB..(D,G,N)201505

BLACK MC.,209

main86300-02500-D0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505-201610

RED M.M.,3R3

main86300-02500-D1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201610

RED MC.,3T3

main86300-02500-E0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505-201604

AVANT-GARDE BRONZE ME.,4V8

main86300-02500-J0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505

DK.BLUE MC.,8T5

main86300-02500-J1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201505

BLUE ME.,8U6

main86300-02500-J2iNDE180,NRE18#,WWE185,ZRE185,ZWE186..HB201604

DK.BLUE,8Q4

main86300-02510-A0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

SUPER WHITE 2,040

main86300-02510-A1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

WHITE PEARL CS.,070

main86300-02510-B0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

SILVER ME.,1F7

main86300-02510-B1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

GRAY ME.,1G6

main86300-02510-B2iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505-201710

DK. STEEL MC.,1H2

main86300-02510-B3iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201604

GRAY ME.,1G2

main86300-02510-B4iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201710

CEMENT GRAY ME.,1H5

main86300-02510-C0iNDE180,NRE185,WWE185,ZRE185,ZWE186..WG..S201505

BLACK MC.,209 ,2KR ,2PN ,2PP ,2QS ,2QT

main86300-02510-C0iNDE180,NRE185,WWE185,ZRE185,ZWE186..WG..S201505

BLACK MC.,209

main86300-02510-D0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505-201610

RED M.M.,3R3

main86300-02510-D1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201610

RED MC.,3T3

main86300-02510-E0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505-201604

AVANT-GARDE BRONZE ME.,4V8

main86300-02510-J0iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

DK.BLUE MC.,8T5

main86300-02510-J1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

BLUE ME.,8U6

main86300-02510-J2iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201604

DK.BLUE,8Q4

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-05050iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

main86309-0D110iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

86396NUT, ANTENNA

main86396-47010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

90119W0017

main90119-W0017

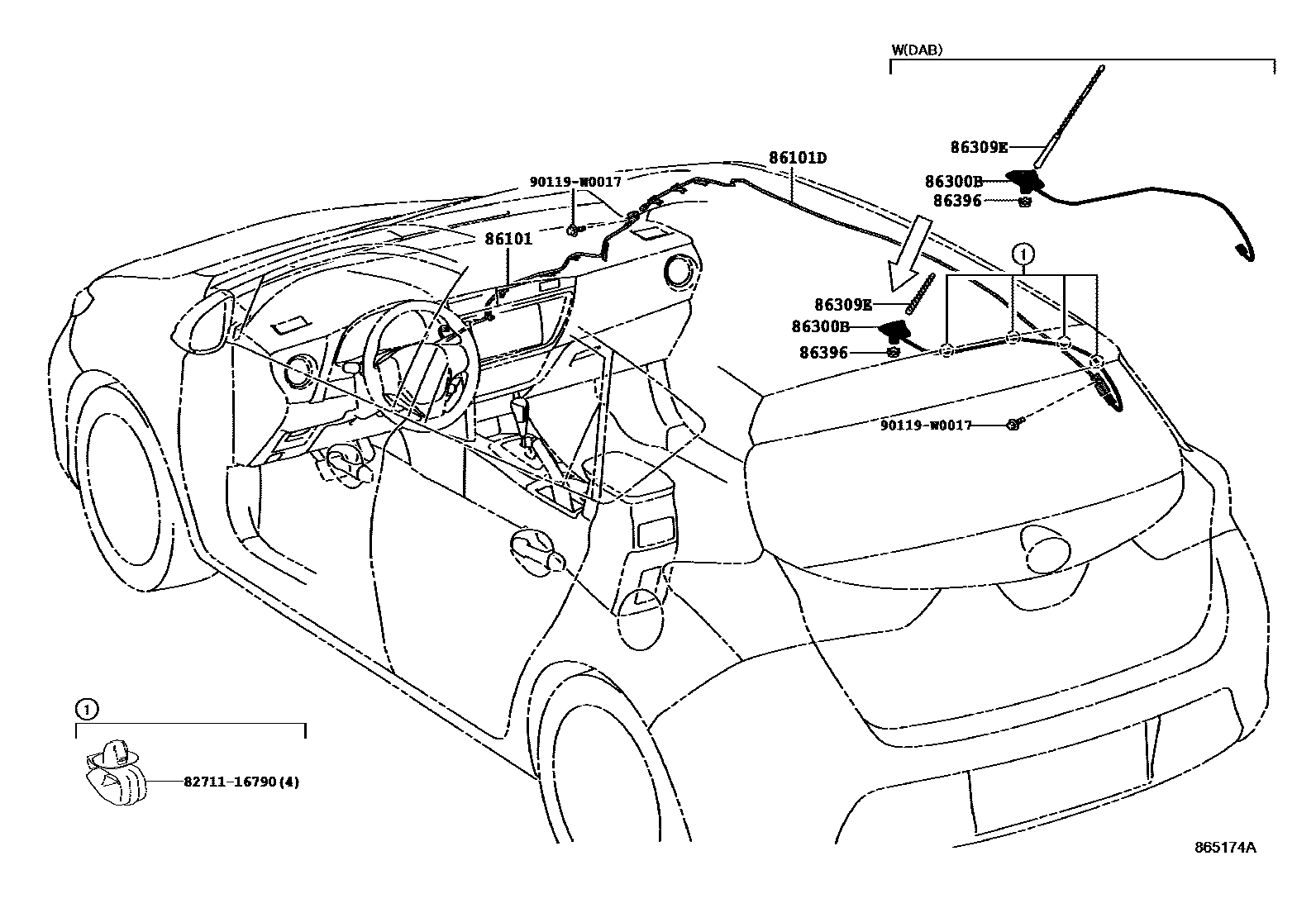

7 parts on this diagram · 4 diagrams in section
