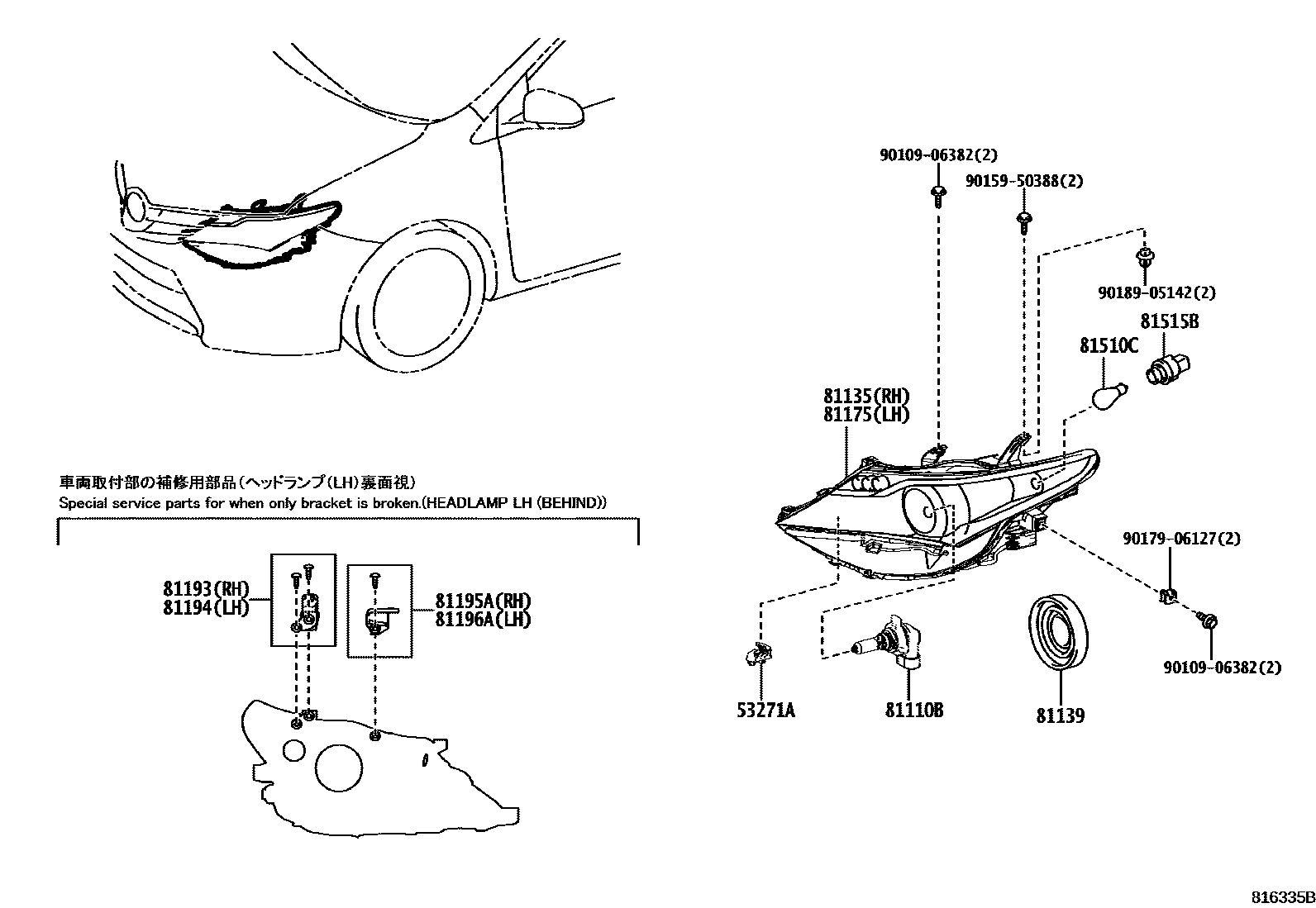

HEADLAMP
53271ABRACKET, HEADLAMP MOUNTING
81110BBULB(FOR HEADLAMP, NO.1)
12V 55W,HALOGEN
81135UNIT ASSY, HEADLAMP, RH
main81130-02K30supersedes 81130-02K60iNDE180,NRE185,ZWE186..LHD..G; NRE180,ZRE185..LHD;NDE180,NRE185,ZWE186..LHD..(D,N,S)201505
HEADLAMP-HALOGEN; HEADLAMP-HALOGEN & WITH(AUTOMATIC HIGH BEAM)
main81130-02K40supersedes 81130-02K70iNDE180,NRE18#,ZRE185,ZWE186..RHD..(D,N,S); NRE185,ZWE186..RHD..G201505
LIGHT GRADE&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN
HEADLAMP-DISCHARGE & AFS; HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
81139COVER, HEADLAMP SOCKET
81175UNIT ASSY, HEADLAMP, LH
main81170-02K30supersedes 81170-02K60iNDE180,NRE185,ZWE186..LHD..G; NRE180,ZRE185..LHD;NDE180,NRE185,ZWE186..LHD..(D,N,S)201505
HEADLAMP-HALOGEN; HEADLAMP-HALOGEN & WITH(AUTOMATIC HIGH BEAM)
main81170-02K40supersedes 81170-02K70iNDE180,NRE18#,ZRE185,ZWE186..RHD..(D,N,S); NRE185,ZWE186..RHD..G201505
LIGHT GRADE&PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HALOGEN
main81170-02E40iNDE180..LHD..6F..N;ADE186,NRE180,ZRE185,ZWE186..LHD..(G,N); ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N201210-201505
HEADLAMP-DISCHARGE & AFS; HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
main81170-02K60iNDE180,NRE185,ZWE186..LHD..G; ZRE185..LHD..(G,N,S);NDE180,NRE185,ZWE186..LHD..(N,S)201505
HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W
81515BSOCKET, FRONT TURN SIGNAL LAMP
main90069-81052×2iADE186,NDE180,NRE180,ZRE185,ZWE186; NDE180..LHD..6F..N;ADE186,NRE180,ZRE185,ZWE186..LHD..(G,N); ZRE185,ZWE186..LHD..N;ADE186,NDE180,NRE180..LHD..6F..N201210-201505
HEADLAMP-DISCHARGE & AFS; HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM
9010906382
main90109-06382
9015950388
main90159-50388
9017906127
main90179-06127
9018905142
main90189-05142
15 parts on this diagram · 4 diagrams in section
