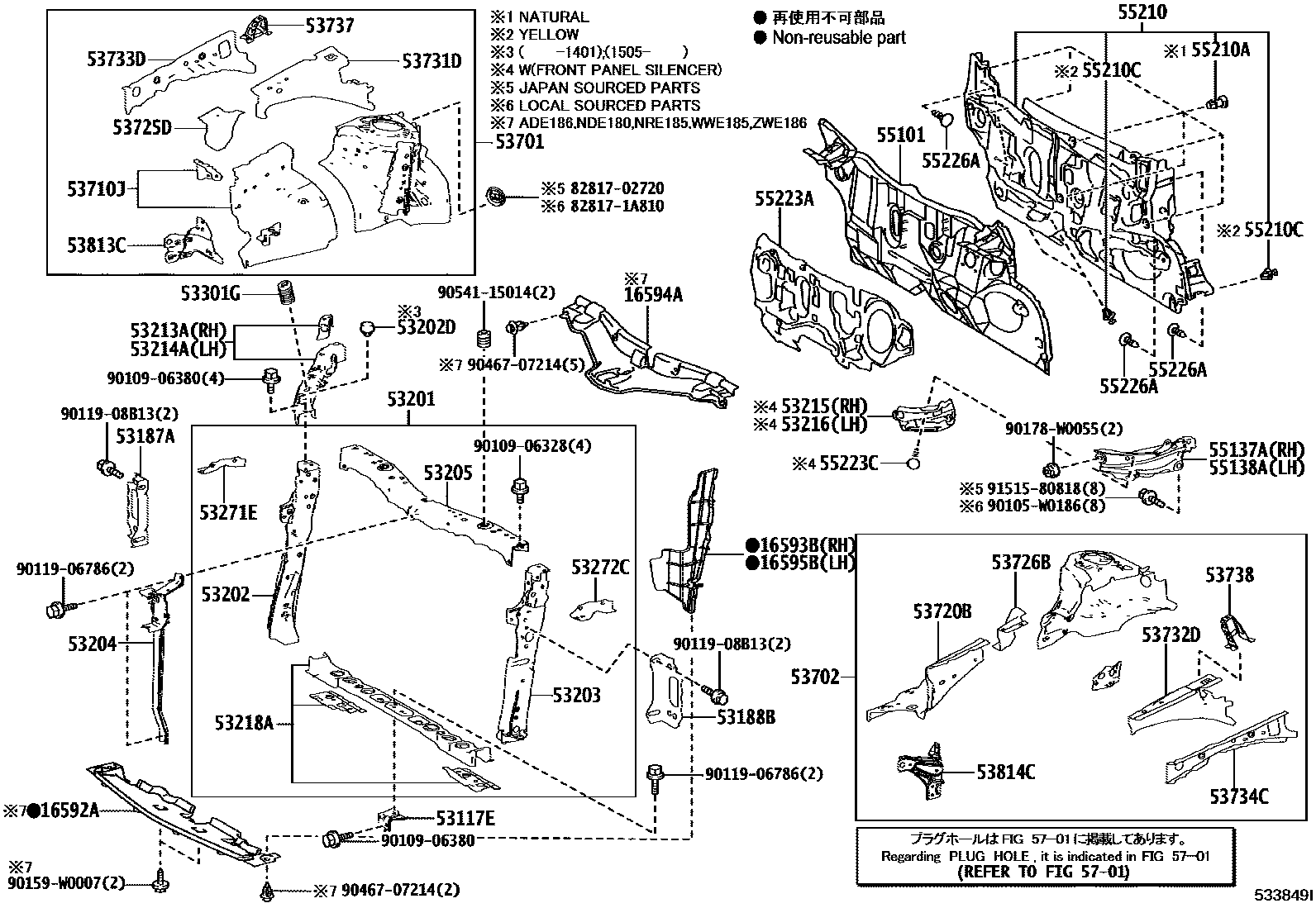

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

16592AGUIDE, RADIATOR AIR, NO.3

main16592-0N010i1ADFTV,1NDTV,2ZRFXE..ADE186,NDE180,ZWE186201210-201505

main16592-0Y010i1WW..WWE185201505-201804

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0N010i1NDTV..NDE180201210-201505

main16593-0N020i1NDTV..NDE180201505

main16593-0R010i1ADFTV..ADE186201210-201505

main16593-0T030i2ZRFXE..ZWE186201505

main16593-0X010i1WW..WWE185201505-201804

main16593-0Y010i1NRFE,1ZRFAE..NRE180,ZRE185201210-201505

main16593-0Y020i2ZRFXE..ZWE186201210-201505

main16593-0Y060i1NRFE,1ZRFAE..NRE180,ZRE185201505

main16593-0Y070i8NRFTS..NRE185201505

16594AGUIDE, RADIATOR AIR, NO.2

main16594-0N010i1ADFTV,1NDTV,2ZRFXE..ADE186,NDE180,ZWE186201210-201505

main16594-0Y010i1WW..WWE185201505-201804

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-0N010i1NDTV..NDE180201210-201505

main16595-0N020i1NDTV..NDE180201505

main16595-0R010i1ADFTV..ADE186201210-201505

main16595-0T030i2ZRFXE..ZWE186201505

main16595-0X010i1WW..WWE185201505-201804

main16595-0Y010i1NRFE,1ZRFAE..NRE180,ZRE185201210-201505

main16595-0Y020i2ZRFXE..ZWE186201210-201505

main16595-0Y040i1NRFE,1ZRFAE..NRE180,ZRE185201505

main16595-0Y050i8NRFTS..NRE185201505

53117EBRACKET, RADIATOR GRILLE, LOWER

main53117-02020iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53187ASTAY, RADIATOR SUPPORT, RH

main53187-02010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53188BSTAY, RADIATOR SUPPORT, LH

main53188-02010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02904iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-02140iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53202DCUSHION, RADIATOR SUPPORT

main90541-09117×2iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201401

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-02150iWWE185201505-201804

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53209-02060iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main53209-02061iWWE185201506-201804

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02200iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53213ASUPPORT, RADIATOR, UPPER RH

main53107-02010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53214ASUPPORT, RADIATOR, UPPER LH

main53108-02010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53215SILENCER, FRONT PANEL, RH

main55211-02180iWWE185201505-201804

53216SILENCER, FRONT PANEL, LH

main55212-02010iWWE185201505-201804

53218ASUPPORT, RADIATOR, LOWER

main53218-02901iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-02060iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-02060iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53301GCUSHION, HOOD BUMPER

main53384-50010×2iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02290iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02210iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53710JAPRON ASSY, FRONT FENDER, RH

main53710-02030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53720BAPRON ASSY, FRONT FENDER, LH

main53720-02030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-02010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-02010iNDE180,NRE18#,ZRE185,ZWE186201505

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-02020iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-02020iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-02010iNDE180,NRE18#,ZRE185,ZWE186201505

(L)

main53733-12070iWWE185201505-201804

(J)

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-02010iNDE180,NRE18#,ZRE185,ZWE186201505

(L)

main53734-12070iWWE185201505-201804

(J)

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-02110iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-02090iWWE185201505-201804

53813CEXTENSION, FRONT FENDER, RH

main53813-02100iWWE185201505-201804

53814CEXTENSION, FRONT FENDER, LH

main53814-02100iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

55101PANEL SUB-ASSY, DASH

main55101-05560iNRE185,ZRE185,ZWE186..LHD..CVT201505

main55101-05570iADE186,NDE180,NRE180,ZRE185..LHD..6F201210-201505

main55101-05580iNDE180..RHD..6FS;ZRE185,ZWE186..RHD..CVT201210-201505

main55101-05590iNDE180,NRE180,ZRE185..RHD..6F201210-201505

55137ABRACE, DASH TO FRAME, RH

main55137-02090iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

55138ABRACE, DASH TO FRAME, LH

main55138-02080iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

55210INSULATOR ASSY, DASH PANEL

main55210-02370iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201505

main55210-02400iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201505

55210ACLIP

main90467-11122×6iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

55210CCLIP

main90467-11127×3iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

55223AINSULATOR, DASH PANEL, OUTER

main55223-02120iADE186,NDE180,NRE180,ZRE185..LHD201210-201505

main55223-02160iNDE180,NRE180,ZRE185..RHD201210-201505

main55223-02270iZWE186..LHD201210-201505

main55223-02280iZWE186..RHD201210-201505

55223CCLIP

main90467-08186-C0×2iNDE180,NRE185,WWE185,ZWE186..G,N,S201505-201610

BLACK

main90467-08186-C3×2iNDE180,NRE185,WWE185,ZWE186..G,N,S201610

BLACK

55226ACLIP

main90467-08186-C0×4iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

BLACK

main90467-08186-C3×4iNDE180,NRE18#,WWE185,ZRE185,ZWE186201610

BLACK

5701HOLE PLUG

→ Go to FIG 57-01

8281702720PROTECTOR, WIRING HARNESS, NO.1

main82817-02720

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

90105W0186

main90105-W0186

9010906328

main90109-06328

9010906380

main90109-06380

9011906786

main90119-06786

9011908B13

main90119-08B13

90159W0007

main90159-W0007

90178W0055

main90178-W0055

9046707214

main90467-07214

9054115014

main90541-15014

9151580818

main91515-80818

57 parts on this diagram · 2 diagrams in section
