FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

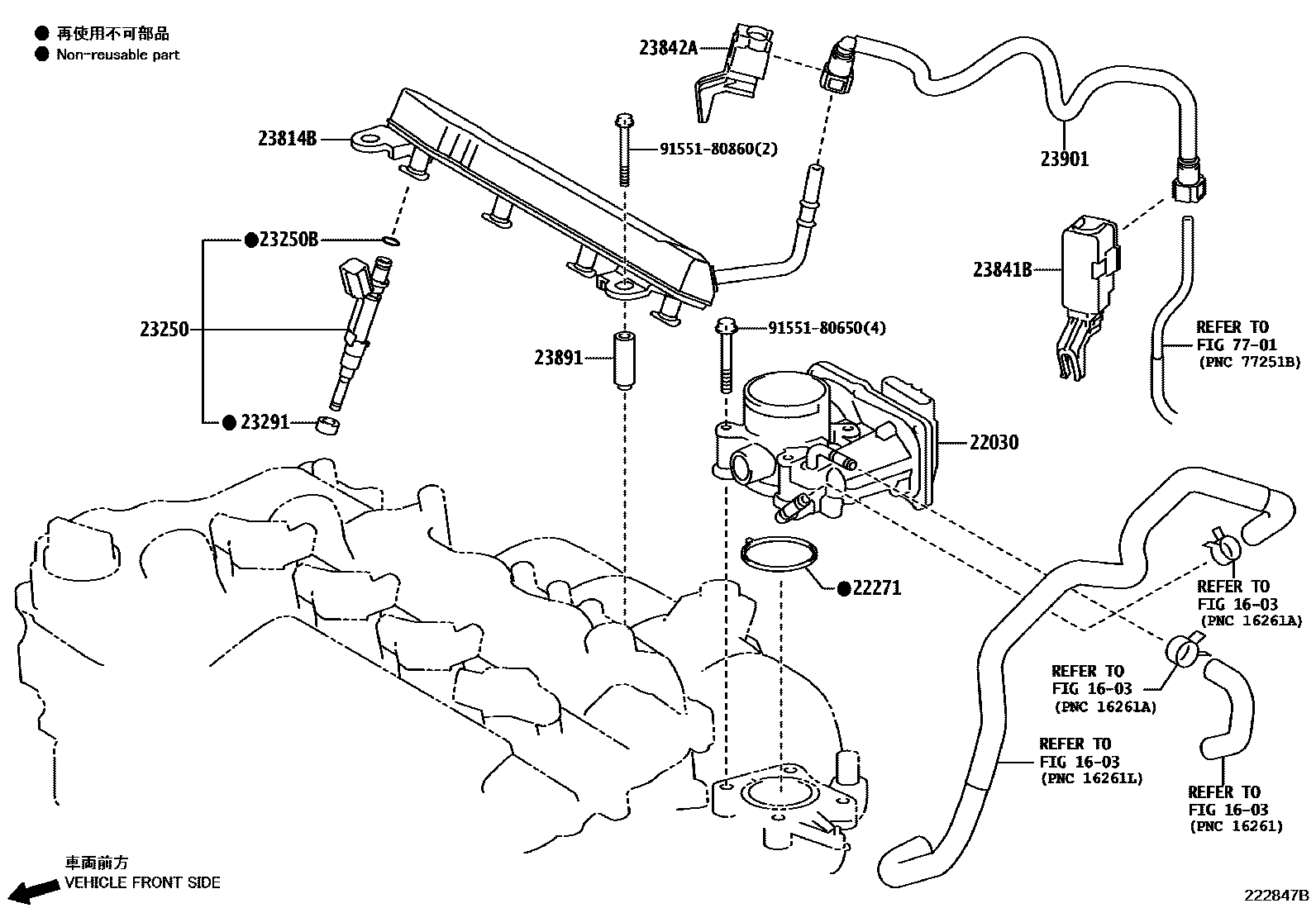

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-47010i1NRFE..NRE180201210-201505

main22030-47080i8NRFTS..NRE185201505

main22030-WA010i1WW..WWE185201505-201506

main22030-WA011i1WW..WWE185201506-201804

22271GASKET, THROTTLE BODY

main22271-0T020i1ZRFAE..ZRE185201210-201409

(L)

main22271-0T021i1ZRFAE..ZRE185201505

(L)

main22271-0T030i2ZRFXE..ZWE186201404-201505

(L)

main22271-37010i2ZRFXE..ZWE186201210-201211

main22271-47010i1NRFE..NRE180201210-201505

main22271-47060×2i8NRFTS..NRE185201505

main22271-75031i1ZRFAE..ZRE185201210-201505

(J)

23250INJECTOR ASSY, FUEL

main23209-09130×4i1ZRFAE,2ZRFXE..ZRE185,ZWE186201210-201505

(L)

main23209-39145×4i1ZRFAE,2ZRFXE..ZRE185,ZWE186201505

(J)

main23209-47070-01×4i8NRFTS..NRE185201505-201805

MARK 1,MARK23250-47070,*RRM

main23209-47070-02×4i8NRFTS..NRE185201505-201805

MARK 2,MARK23250-47070,*RRM

main23209-47070-03×4i8NRFTS..NRE185201505-201805

MARK 3,MARK23250-47070,*RRM

main23209-47100-01×4i8NRFTS..NRE185201805

MARK 1,MARK23250-47100,*RRM

main23209-47100-02×4i8NRFTS..NRE185201805

MARK 2,MARK23250-47100,*RRM

main23209-47100-03×4i8NRFTS..NRE185201805

MARK 3,MARK23250-47100,*RRM

main23209-47100-04×4i8NRFTS..NRE185201805

MARK 4,MARK23250-47100,*RRM

main23209-47100-05×4i8NRFTS..NRE185201805

MARK 5,MARK23250-47100,*RRM

main23209-47100-06×4i8NRFTS..NRE185201805

MARK 6,MARK23250-47100,*RRM

main23209-47100-07×4i8NRFTS..NRE185201805

MARK 7,MARK23250-47100,*RRM

main23209-47100-08×4i8NRFTS..NRE185201805

MARK 8,MARK23250-47100,*RRM

main23209-47100-09×4i8NRFTS..NRE185201805

MARK 9,MARK23250-47100,*RRM

main23209-49205×4i1NRFE..NRE180201505

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×4i8NRFTS..NRE185201505-201805

main90301-05013×4i8NRFTS..NRE185201805

main90301-07037×4i1ZRFAE,2ZRFXE..ZRE185,ZWE186201210-201505

main90301-07042×4i1NRFE..NRE180201505

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NRFE..NRE180; 1ZRFAE,2ZRFXE..ZRE185,ZWE186201505

main23291-31020×4i8NRFTS..NRE185201505

23814BPIPE, FUEL DELIVERY

main23800-47020i8NRFTS..NRE185201505-201805

PAINTED=WHITE

main23800-47030i8NRFTS..NRE185201805

PAINTED=PINK

main23814-47020i1NRFE..NRE180201210-201407

main23814-47050i1NRFE..NRE180201407-201505

main23814-47051i1NRFE..NRE180201806

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i1NRFE..NRE180; 1ZRFAE,2ZRFXE..ZRE185,ZWE186201210-201211

main23841-37090i1NRFE..NRE180; 1ZRFAE,2ZRFXE..ZRE185,ZWE186..HB201305-201505

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0T020i1NRFE..NRE180201505

main23842-28010i1ZRFAE,2ZRFXE..ZRE185,ZWE186201505

23891SPACER, FUEL DELIVERY

main23891-47010×2i1NRFE..NRE180201210-201302

main23891-47030×2i1NRFE..NRE180201302-201505

23901TUBE SUB-ASSY, FUEL

main23901-0D090i1ZRFAE..ZRE185201210-201505

main23901-0Y020i1NRFE..NRE180201505

main23901-0Y110i8NRFTS..NRE185201505-201803

main23901-0Y310i8NRFTS..NRE185201803

main23901-37200i2ZRFXE..ZWE186201210-201505

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180650

main91551-80650

9155180860

main91551-80860

14 parts on this diagram · 5 diagrams in section
