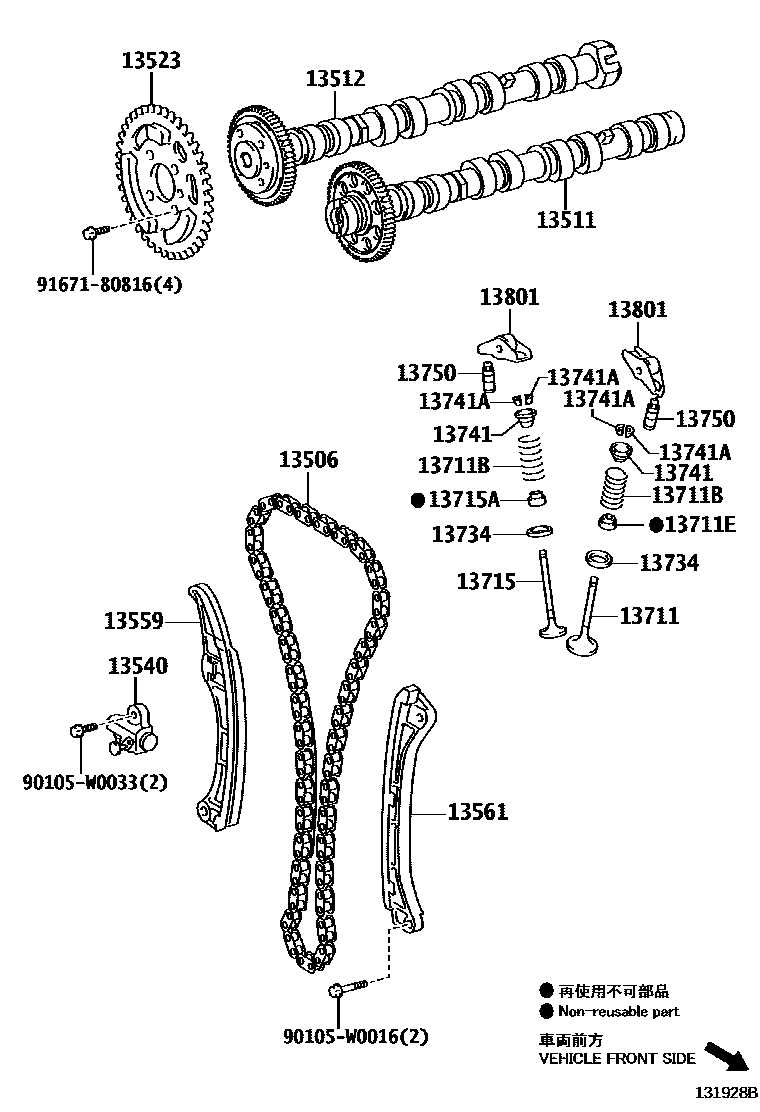

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
(L)
(L)
(J)
(J)
13511CAMSHAFT
(L)
(J)
13512CAMSHAFT, NO.2
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
MADE IN EUROPE
(L)
MADE IN EUROPE
(J)
MADE IN JAPAN
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
MADE IN EUROPE
(L)
(L)
(J)
(J)
MADE IN JAPAN
(J)
(J)
MADE IN JAPAN
13711VALVE, INTAKE
(L)
(J)
13711BSPRING, COMPRESSION(FOR INNER)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
L=51.88
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715VALVE, EXHAUST
(L)
(L)
(J)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
(L)
PNC 13711C=TYPE A
TYPE A:REFER ILLUST.
(J)
TYPE B:REFER ILLUST.
PNC 13711C=TYPE B
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
(L)
(L)
(J)
PNC 13711C=TYPE B
PNC 13711C=TYPE A
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(L)
(J)
(J)
(J)
PNC 13711C=TYPE B
PNC 13711C=TYPE A
90105W0016
main90105-W0016
90105W0033
main90105-W0033
9167180816
main91671-80816
20 parts on this diagram · 7 diagrams in section
