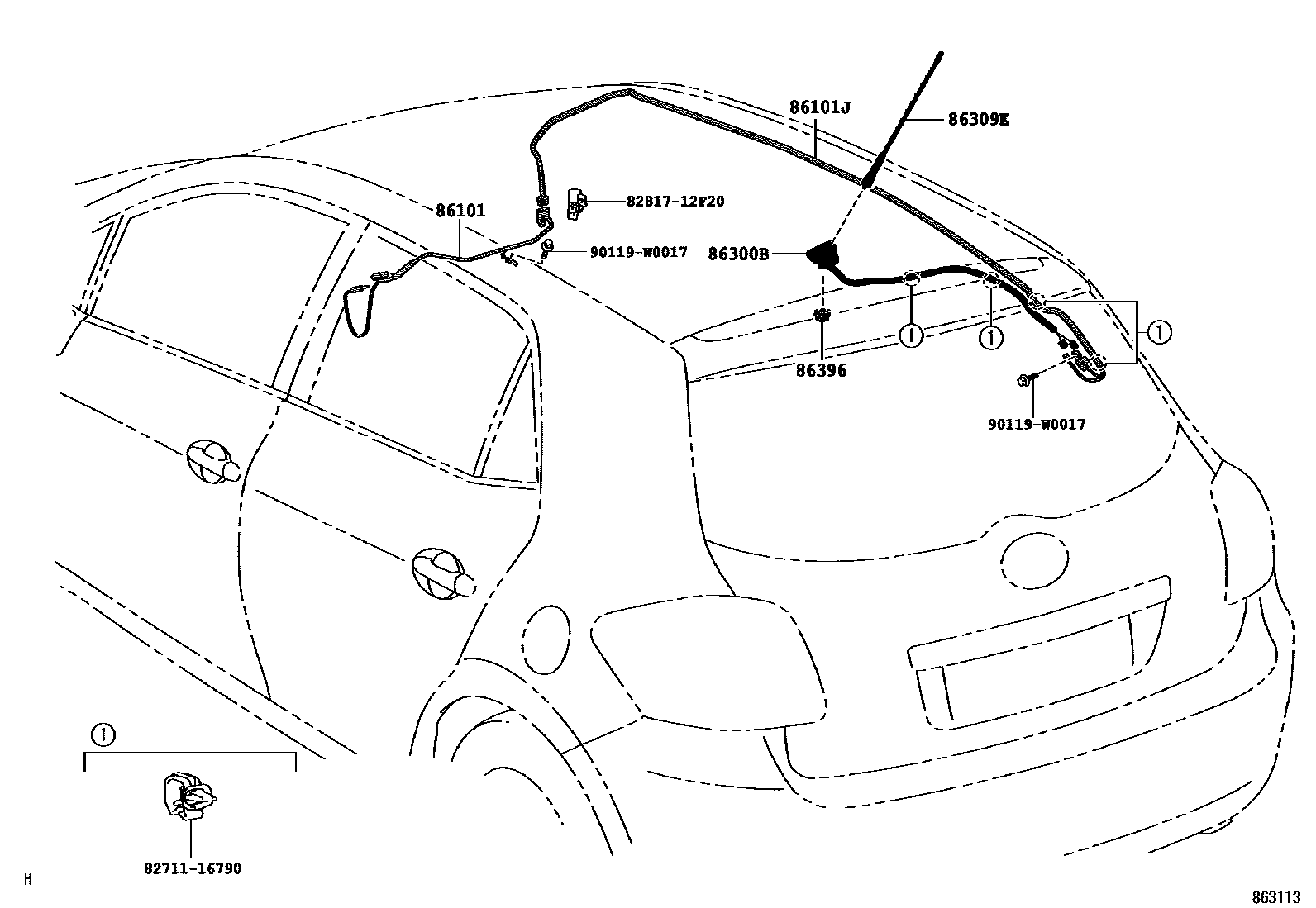

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-02120iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912

LUXURY&CD BLUETOOTH 6SPEAKER(MULTI)

main86101-02120iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912

MID&CD BLUETOOTH 6SPEAKER(MULTI)

main86101-02120iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912

LCA&CD BLUETOOTH 6SPEAKER(MULTI)

main86101-02120iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912

CD 4SPEAKER(MULTI)

main86101-02120iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912

CD 6SPEAKER(MULTI)

main86101-02170iADE150,NDE150,NRE150,ZRE15#,ZWE150..LHD..(G,SOL)200912

RADIOLESS 6SPEAKER

main86101-02170iNDE150,ZRE151..LHD200702-201001

main86101-02170iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912

LIGHT&RADIOLESS SPEAKERLESS

main86101-02180iNDE150..RHD..E200912

LIGHT&RADIOLESS SPEAKERLESS

main86101-02180iNDE150..RHD..E200912

RADIOLESS 6SPEAKER

main86101-02180iZZE150..RHD200702-201001

main86101-02410iNDE150..RHD..E200912

CD 6SPEAKER(MULTI)

main86101-02410iNDE150,NRE150,ZRE151,ZWE150..RHD..(G,SOL)200912

LUXURY&CD BLUETOOTH 6SPEAKER(MULTI)

main86101-02410iNDE150,NRE150,ZRE151,ZWE150..RHD..(G,SOL)200912

MID&CD BLUETOOTH 6SPEAKER(MULTI)

main86101-02410iNDE150,NRE150,ZRE151,ZWE150..RHD..(G,SOL)200912

LCA&CD BLUETOOTH 6SPEAKER(MULTI)

main86101-02410iNDE150,NRE150,ZRE151,ZWE150..RHD..(G,SOL)200912

CD 4SPEAKER(MULTI)

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-02130iZZE150200702-201001

main86101-02130iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

LIGHT

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02180iZZE150200702-201001

main86300-02310iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-02040iZZE150200702-201001

main86309-05050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

86396NUT, ANTENNA

main86396-02020iZZE150200702-201001

main86396-20040iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8281712F20PROTECTOR, WIRING HARNESS, NO.1

main82817-12F20

90119W0017

main90119-W0017

8 parts on this diagram · 1 diagram in section
