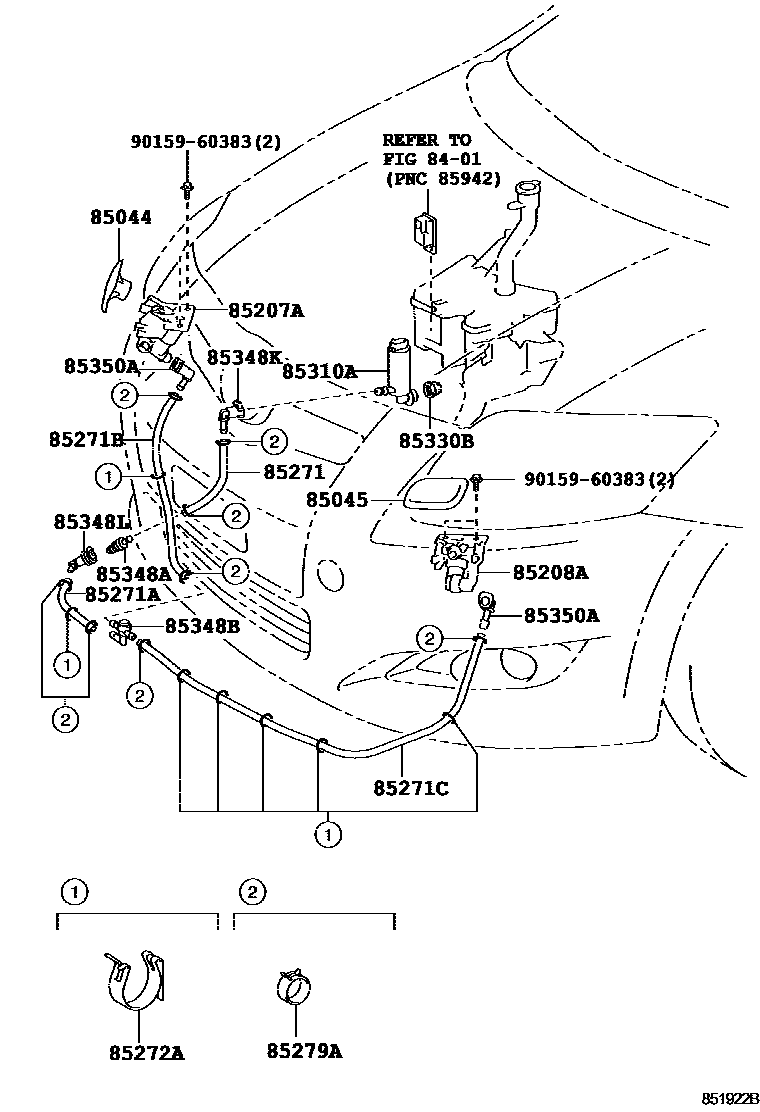

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
main85044-02907iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305
HEAD LAMP CLEANER-WITH
HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
main85045-02908iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305
HEAD LAMP CLEANER-WITH
HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
main85207-02070iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305
HEAD LAMP CLEANER-WITH
HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
main85208-02070iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305
HEAD LAMP CLEANER-WITH
HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE
85271HOSE, HEADLAMP CLEANER, NO.1
*H,L=440,HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; *H,L=440,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; *H,L=440,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
*H,L=1290,HEAD LAMP CLEANER-WITH
main85275-05100iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201109
*H,L=1290,HEAD LAMP CLEANER-WITH
85271AHOSE, HEADLAMP CLEANER, NO.2
*H,L=71,HEAD LAMP CLEANER-WITH; *H,L=71,HEADLAMP-DISCHARGE
*H,L=1290,HEAD LAMP CLEANER-WITH
main85275-05100iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201109
*H,L=1290,HEAD LAMP CLEANER-WITH
L=300,HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; L=300,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; L=300,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; L=300,HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH; L=300,HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
*H,L=71,HEAD LAMP CLEANER-WITH; *H,L=71,HEADLAMP-DISCHARGE
85271BHOSE, HEADLAMP CLEANER, NO.3
*H,L=188,HEAD LAMP CLEANER-WITH; *H,L=188,HEADLAMP-DISCHARGE
*H,L=440,HEAD LAMP CLEANER-WITH
*H,L=188,HEAD LAMP CLEANER-WITH; *H,L=188,HEADLAMP-DISCHARGE
*H,L=440,HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; *H,L=440,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; *H,L=440,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85271CHOSE, HEADLAMP CLEANER, NO.4
*H,L=1702,HEAD LAMP CLEANER-WITH; *H,L=1702,HEADLAMP-DISCHARGE
*H,L=1430,HEAD LAMP CLEANER-WITH
*H,L=1702,HEAD LAMP CLEANER-WITH; *H,L=1702,HEADLAMP-DISCHARGE
L=1380,HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; L=1380,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; L=1380,HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; L=1380,HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH; L=1380,HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
main90069-16012iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201109
*H,L=1430,HEAD LAMP CLEANER-WITH
85272ACLAMP, HEADLAMP CLEANER, NO.1
HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85279AJOINT, HEADLAMP CLEANER HOSE
HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
main85280-02030iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001
HEAD LAMP CLEANER-WITH
HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
main90069-20005iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001
HEAD LAMP CLEANER-WITH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
main90069-44021iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305
HEAD LAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE
main85286-02060iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912-201305
HEAD LAMP CLEANER-WITH
HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE(FOR PREMIUM ACTIVE)&HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
HEAD LAMP CLEANER-WITH&DAYTIME RUNNING LIGHT SYSTEM-WITH
9015960383
main90159-60383
19 parts on this diagram · 3 diagrams in section
