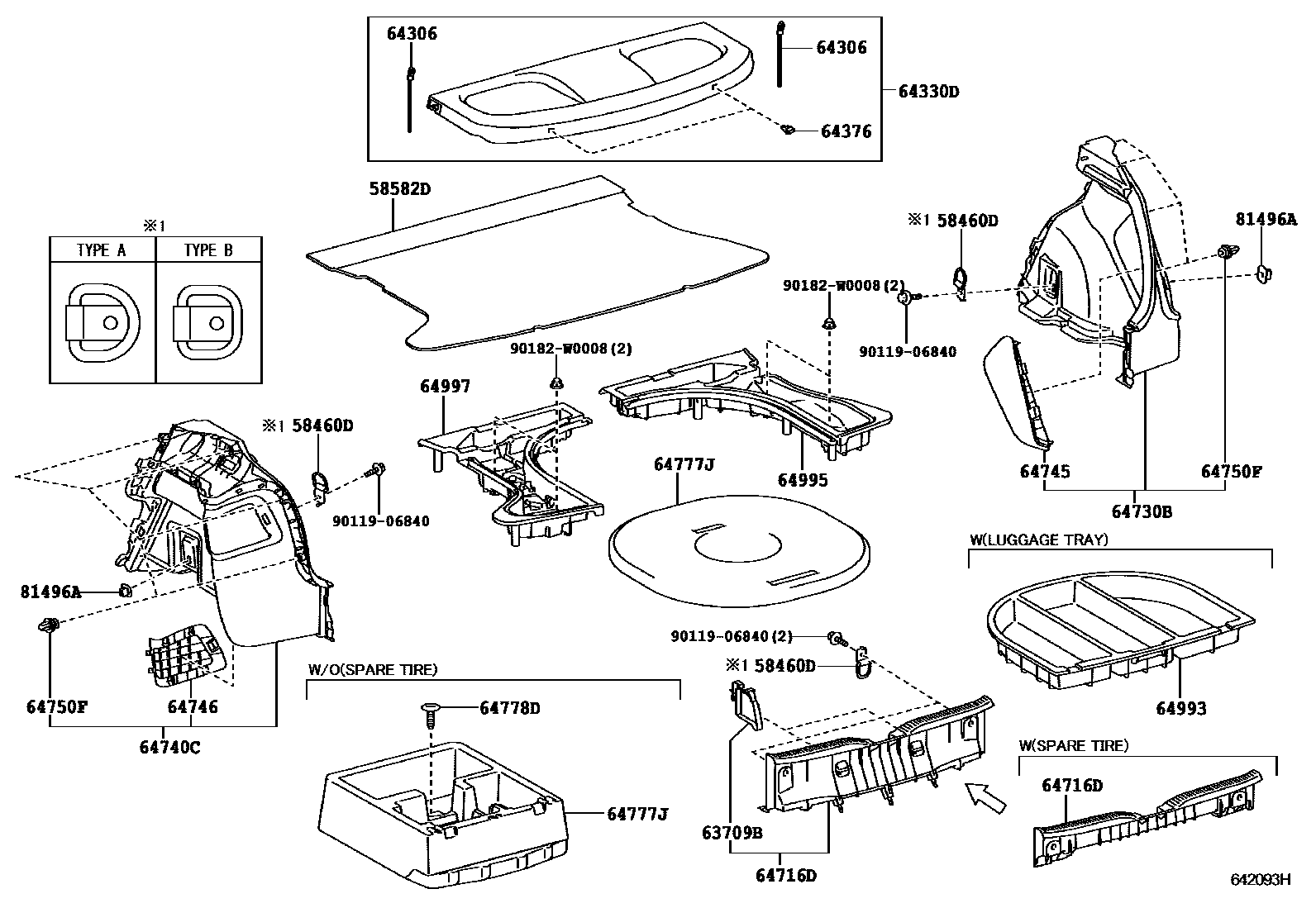

DECK BOARD & DECK TRIM COVER
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201109
TYPE A:REFER ILLUST.
main66310-13010iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001
TYPE B:REFER ILLUST.
58582DMAT, REAR FLOOR, REAR
N1 PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15)&LUGGAGE TRAY-WITH(RH & LH),BLACK,TRIM1#
N1 PACKAGE&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#,4#
N1 PACKAGE&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM1#
N1 PACKAGE,BLACK,TRIM1#,4#
N1 PACKAGE,BLACK,TRIM1#
N1 PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),BLACK,TRIM1#,4#
N1 PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),BLACK,TRIM1#
N1 PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15)&LUGGAGE TRAY-WITH(RH & LH),BLACK,TRIM1#,4#
SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,4#
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT),BLACK,TRIM1#,4#
LIGHT&SPARE TIRE-WITHOUT,BLACK,TRIM1#,4#
SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#
N1 PACKAGE&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
TURKEY SPEC,BLACK,TRIM1#,4#
TURKEY SPEC&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#,4#
N1 PACKAGE,BLACK,TRIM1#,4#
N1 PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),BLACK,TRIM1#,4#
N1 PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
SPARE TIRE-WITHOUT(WITH/REPAIR KIT),BLACK,TRIM1#
SPARE TIRE-WITHOUT(WITH/REPAIR KIT),BLACK,TRIM1#,4#
BLACK,TRIM1#
63709BBAND SUB-ASSY, ROOM RACK
BLACK,TRIM1#
BLACK,TRIM1#,4#
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT),BLACK,TRIM1#,4#
LIGHT&SPARE TIRE-WITHOUT,BLACK,TRIM1#,4#
BLACK,TRIM1#
SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),BLACK,TRIM1#
TURKEY SPEC,BLACK,TRIM1#,4#
TURKEY SPEC&LUGGAGE TRAY-WITH(RH & LH & CENTER),BLACK,TRIM1#,4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
N1 PACKAGE
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT
N1 PACKAGE
main64306-02031iNDE150..5D..(E,SOL);ADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#..5D..MTM200902-201305
64330DPANEL ASSY, PACKAGE TRAY TRIM
N1 PACKAGE,BLACK,TRIM0#,1#,4#
BLACK,TRIM1#
BLACK,TRIM0#,1#,4#
BLACK,TRIM1#,4#
N1 PACKAGE,BLACK,TRIM1#
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,BLACK,TRIM1#
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT,BLACK,TRIM0#,1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,4#
N1 PACKAGE,BLACK,TRIM1#,4#
N1 PACKAGE,BLACK,TRIM1#
LIGHT,BLACK,TRIM1#,4#
BLACK,TRIM1#
PKG.TRAY TRIM&TONNEAU CVR.-WITHOUT,BLACK,TRIM1#
BLACK,TRIM1#
64376SPACER, PACKAGE TRAY TRIM, NO.2
N1 PACKAGE
PACKAGE TRAY TRIM & TONEAU COVER-WITHOUT
main64376-02010iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-201305
64716DCOVER, DECK TRIM, REAR
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
TURKEY SPEC,DK.GRAY,TRIM1#,4#
TURKEY SPEC&LUGGAGE TRAY-WITH(RH & LH & CENTER),DK.GRAY,TRIM1#,4#
SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),DK.GRAY,TRIM1#
SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15),DK.GRAY,TRIM1#,4#
LIGHT&SPARE TIRE-WITHOUT(WITH/REPAIR KIT),DK.GRAY,TRIM1#,4#
LIGHT&SPARE TIRE-WITHOUT,DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-02090-B0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201305
DK.GRAY,TRIM1#,*154
main64730-02090-B0iNDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(4FC,6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201210
DK.GRAY,TRIM1#,4#,*154
DK.GRAY,TRIM0#,1#,4#,*154
DK.GRAY,TRIM1#,4#,*153
DK.GRAY,TRIM1#,*153
DK.GRAY,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
DK.GRAY,TRIM1#,4#,*154
DK.GRAY,TRIM1#,*154
DK.GRAY,TRIM1#,4#,*154
DK.GRAY,TRIM1#,*154
DK.GRAY,TRIM1#,4#,*153
DK.GRAY,TRIM1#,*153
DK.GRAY,TRIM1#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,1#,4#,*154
BLACK,TRIM1#,4#,*154
BLACK,TRIM1#,*154
BLACK,TRIM1#,4#,*153
BLACK,TRIM1#,*153
64746COVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,4#,*154
BLACK,TRIM1#,*154
BLACK,TRIM1#,4#,*154
BLACK,TRIM1#,*153
BLACK,TRIM1#,4#,*153
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64777JCUSHION, SPARE WHEEL
N1 PACKAGE
N1 PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15)
N1 PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&LUGGAGE TRAY-WITH(RH & LH & CENTER)
N1 PACKAGE&LUGGAGE TRAY-WITH(RH & LH & CENTER)
TURKEY SPEC
SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
TURKEY SPEC&LUGGAGE TRAY-WITH(RH & LH & CENTER)
64778DPROTECTOR, SPARE WHEEL
N1 PACKAGE&LUGGAGE TRAY-WITH(RH & LH & CENTER)
SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
TURKEY SPEC
TURKEY SPEC&LUGGAGE TRAY-WITH(RH & LH & CENTER)
N1 PACKAGE
N1 PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL 195/65R15)
N1 PACKAGE&SPARE TIRE-TEMPORARY(T125/70D17)&LUGGAGE TRAY-WITH(RH & LH & CENTER)
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
81496AGUIDE, REAR COMBINATION LAMP
9011906840
main90119-06840
90182W0008
main90182-W0008
20 parts on this diagram · 2 diagrams in section
