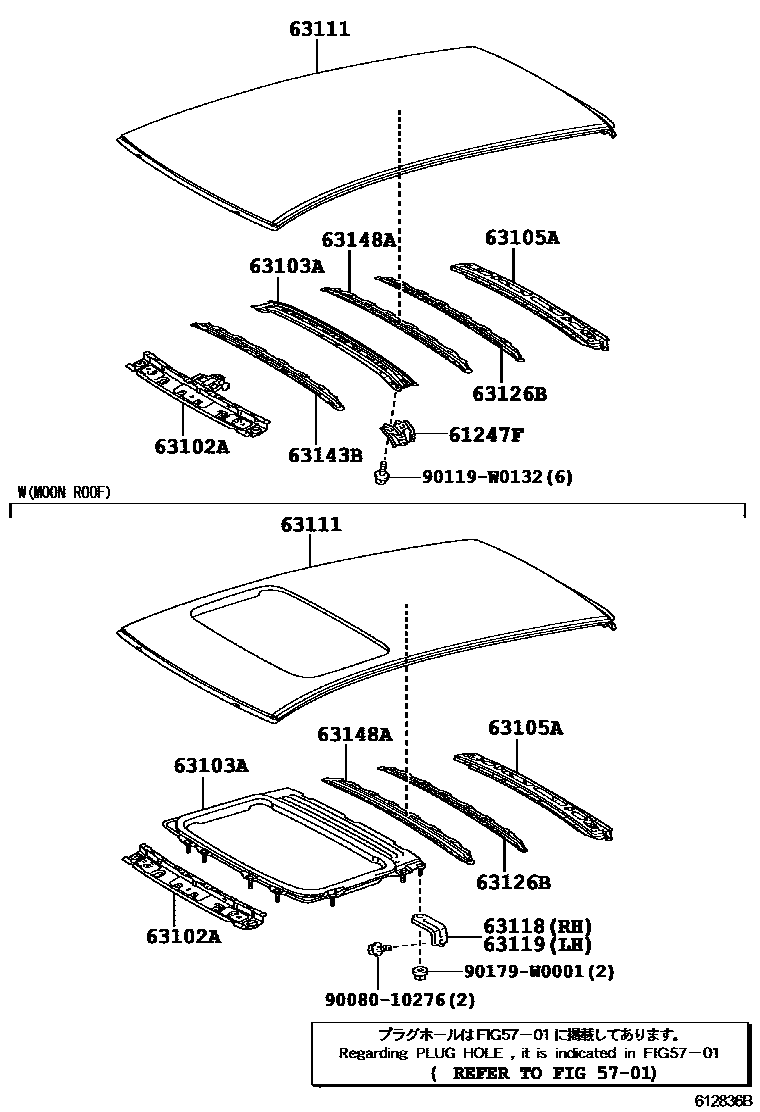

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

5701HOLE PLUG

→ Go to FIG 57-01

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-02020×2iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-200903

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02040iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201305

main63102-02060iZRE151..SOL200702-200902

MOON ROOF-WITH,(L)

main63102-12220iZRE151..SOL200702-200902

MOON ROOF-WITH,(J)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63141-02060iADE15#200702-200903

(L)

main63141-12280iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

(J)

main63103-02020iZRE151..4FC..SOL;ADE150..RHD..DCRL;ADE150..LHD..3D..SOL..DCRL;ADE157,NRE150,ZRE15#..3D..(6F,6FS)..SOL200811-201001

MOON ROOF-WITH

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-02060iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

63111PANEL, ROOF

main63111-02220iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

main63111-02230iZRE151..SOL200702-200902

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-02010iZZE150..SOL200702-200811

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-02010iZZE150..SOL200702-200811

MOON ROOF-WITH

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-02020iZZE150200702-200811

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02030iZZE150200702-200811

(L)

main63143-12120iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

(J)

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-02030iZZE150200702-200811

(L)

main63148-12050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

(J)

main63144-12100iZRE151..4FC..SOL;ADE150..RHD..DCRL;ADE150..LHD..3D..SOL..DCRL;ADE157,NRE150,ZRE15#..3D..(6F,6FS)..SOL200811-201001

MOON ROOF-WITH

9008010276

main90080-10276

90119W0132

main90119-W0132

90179W0001

main90179-W0001

14 parts on this diagram · 2 diagrams in section
