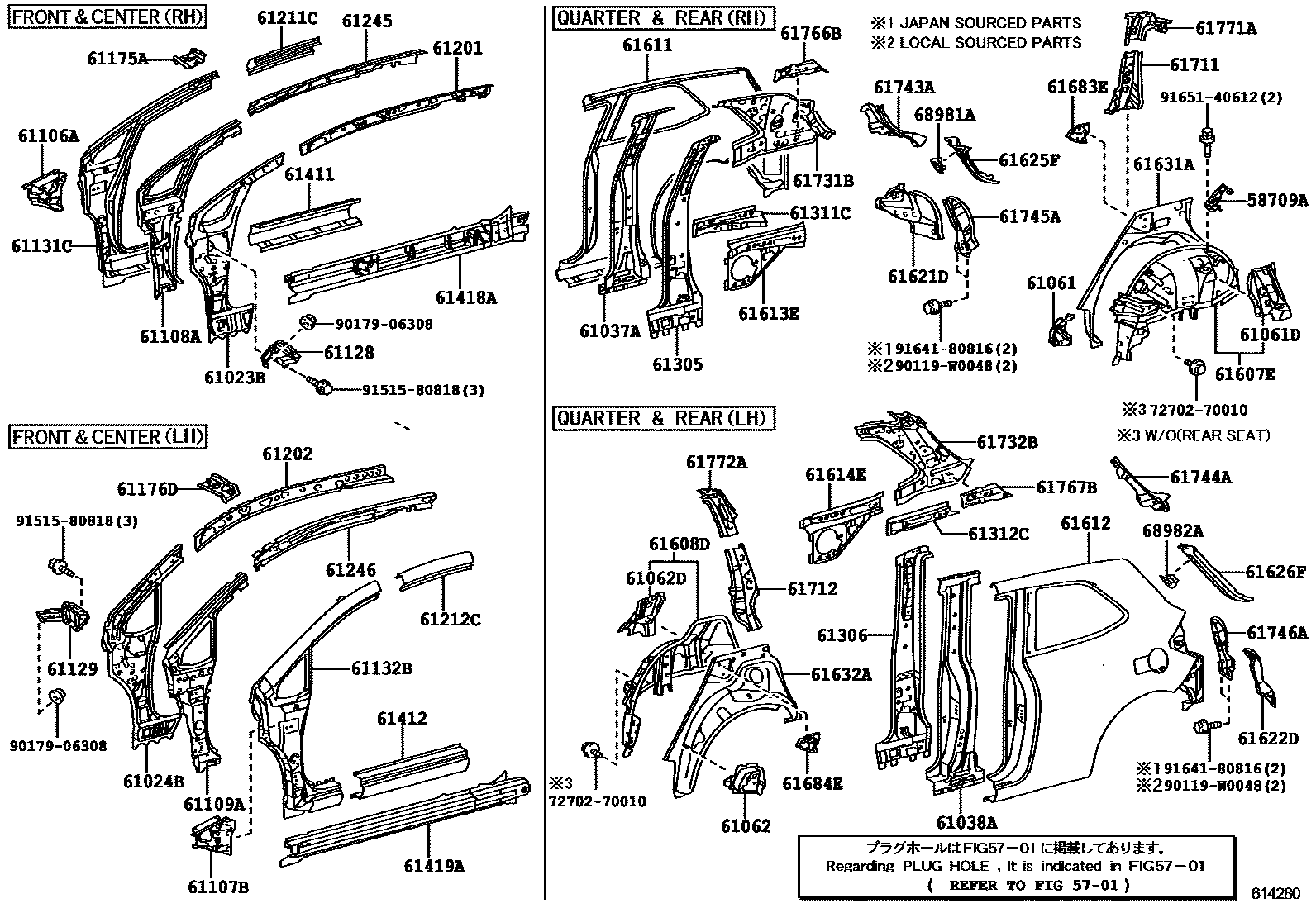

SIDE MEMBER

0001 1 0002 1 0003 1PROTECTOR,SEAL

5701HOLE PLUG

→ Go to FIG 57-01

58709ACARRIER SUB-ASSY, JACK

main58709-02010iADE15#200702-201001

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-02150iZZE150200702-201305

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-02130iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201305

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-02082iADE15#..5D200707-201001

main61037-02908iADE15#,NDE150,ZRE151,ZZE150..5D200702-200707

main61037-02909iADE15#..3D200702-201001

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-02082iNDE150,ZRE151..5D200707-201001

main61038-02908iADE15#,NDE150,ZRE151,ZZE150..5D200702-200707

main61038-02909iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-02020iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201001

61061DGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH

main61063-02010iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main61063-02030iZWE150201006

61062REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH

main61062-02020iZZE150200702-201001

61062DGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.2

main61064-02020iZZE150200702-201001

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-02020iADE15#200702-201001

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-02020iNDE150,ZRE151200702-201001

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-02090iZZE150200702-201001

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-02090iZZE150200702-201001

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-02070iZZE150200702-201001

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-02070iZZE150200702-201001

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02170iNDE150,ZRE151..5D200702-201001

main61131-02180iADE15#..3D200702-201001

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02200iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201001

main61132-02210iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-02050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201001

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-02050iZZE150200702-201001

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-02050iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201001

main61201-02070iZZE150..3D200702-201001

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-02050iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main61202-02070iZZE150..3D200702-201001

61211CRAIL, ROOF SIDE, RH

main61211-02110iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201001

main61311-02220iNDE150,ZRE151..3D200702-201001

61212CRAIL, ROOF SIDE, LH

main61212-02110iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main61312-02220iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-02070iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201001

main61245-02090iADE15#..3D200702-201001

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-02080iADE15#..5D200702-201001

main61246-02090iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-02020iZZE150..5D200702-201001

main61305-02031iZZE150..3D200702-201001

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-02020iNDE150,ZRE151..5D200702-201001

main61306-02031iNDE150,ZRE151..3D200702-201001

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02130iZZE150..3D200702-201001

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02130iZZE150..3D200702-201001

61411PANEL, ROCKER, OUTER RH

main61411-02100iZZE150..3D200702-201001

61412PANEL, ROCKER, OUTER LH

main61412-02100iZZE150..3D200702-201001

61418AREINFORCEMENT, ROCKER PANEL, RH

main61403-02050iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201001

main61403-02060iADE15#..3D200702-201001

61419AREINFORCEMENT, ROCKER PANEL, LH

main61404-02050iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;ADE157,NRE150,ZRE15#,ZWE150..5D200702-201001

main61404-02060iADE15#..3D200702-201001

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02352iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201305

main61607-02530iZWE150201006-201211

61608DPANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-02282iZZE150200702-201305

main61608-02480iZWE150201006-201211

61611PANEL, QUARTER, RH

main61601-02250iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main61601-02260iADE15#,NDE150,NRE150,ZRE15#..3D200702-201001

61612PANEL, QUARTER, LH

main61602-02260iNDE150,ZRE151..5D200702-201001

main61602-02270iNDE150,ZRE151..3D200702-201001

61613EPANEL, QUARTER, INNER RH

main61613-02020iNDE150,ZRE151..3D200702-201001

61614EPANEL, QUARTER, INNER LH

main61614-02020iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

61621DTROUGH, BACK DOOR OPENING, RH

main61621-02050iZZE150200702-201001

61622DTROUGH, BACK DOOR OPENING, LH

main61622-02050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200702-201001

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-02050iZZE150200702-201001

61626FEXTENSION, QUARTER PANEL, UPPER LH

main61626-02050iZZE150200702-201001

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02080iZZE150200702-201001

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-02080iZZE150200702-201001

61683EPLATE, QUARTER PANEL, LOWER NO.3

main72607-02010iZZE150200702-201001

61684EPLATE, QUARTER PANEL, LOWER NO.4

main72608-02010iZZE150200702-201001

61711PANEL, ROOF SIDE, OUTER RH

main61711-02020iNDE150,ZRE151200702-201001

61712PANEL, ROOF SIDE, OUTER LH

main61712-02020iZZE150200702-201001

61731BPANEL, ROOF SIDE, INNER RH

main61731-02130iNDE150,ZRE151..5D200702-201001

main61731-02140iNDE150..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

61732BPANEL, ROOF SIDE, INNER LH

main61732-02130iZZE150..5D200702-201001

main61732-02140iZZE150..3D200702-201001

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-02030iADE15#200702-201001

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-02030iNDE150,ZRE151200702-201001

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-02020iZZE150200702-201001

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-02020iZZE150200702-201001

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-02020iZZE150200702-201001

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-02020iZZE150200702-201001

61771AGUSSET, BACK WINDOW OPENING, RH

main61771-02030iZZE150..5D200702-201001

*153

main61771-12070iZZE150..3D200702-201001

*154

main61771-12070iADE15#,NDE150,NRE150,ZRE15#..3D201001

61772AGUSSET, BACK WINDOW OPENING, LH

main61772-02030iZZE150..5D200702-201001

*153

main61772-12070iNDE150,ZRE151..5D200702-201001

*154

main61772-12070iADE15#,NDE150,NRE150,ZRE15#..3D201001

68981ARETAINER, BACK DOOR STAY, RH

main68981-02040iZZE150200702-201001

68982ARETAINER, BACK DOOR STAY, LH

main68982-02030iZZE150200702-201001

7270270010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-70010

90119W0048

main90119-W0048

9017906308

main90179-06308

9151580818

main91515-80818

9164180816

main91641-80816

9165140612

main91651-40612
