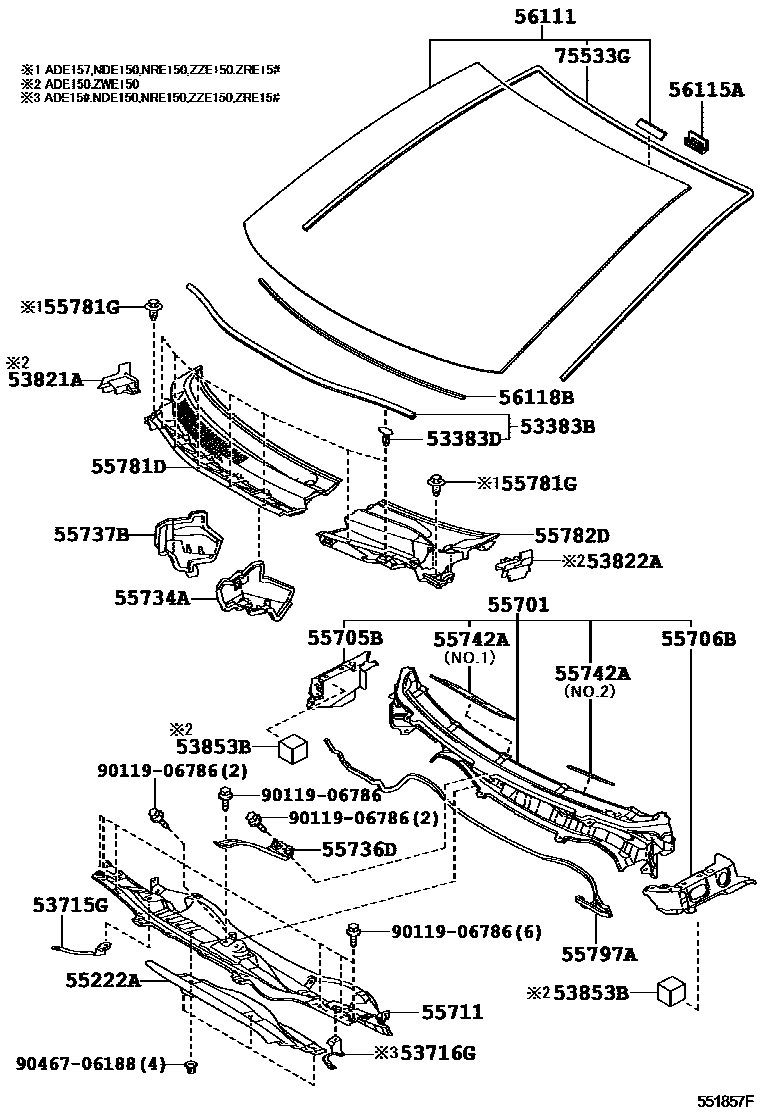

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
main53383-02100iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
main67867-12150×7iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
53715GEXTENSION, FRONT FENDER APRON, REAR RH
main53715-02011iNRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;ADE15#,ZWE150..LHD200912
53716GEXTENSION, FRONT FENDER APRON, REAR LH
main53716-02011iADE15#..LHD;ZWE150..RHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912
53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH
53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH
53853BPAD, FRONT WHEEL OPENING EXTENSION, NO.1
55222AINSULATOR, DASH PANEL, OUTER CENTER
main55224-02030iADE15#..LHD;ZRE152..LHD..SOL;NDE150..6F..TERRA;NDE150,NRE150,ZRE151,ZWE150..E,G,SOL; NDE150..E200912
LIGHT
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
main55705-02020iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55734APLATE, WATER GUARD, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55742ASHEET, COWL TOP INSULATOR
main55742-02050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
NO.1:REFER ILLUST.
main55743-02070iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
NO.2:REFER ILLUST.
55781DLOUVER, COWL TOP VENTILATOR, RH
*154
*154
*153
*153
COLD AREA SPEC,*154
main55708-02301supersedes 55708-02321iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD200912
COLD AREA SPEC,*154
COLD AREA SPEC,*153
main55708-02331supersedes 55708-02321iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-200912
COLD AREA SPEC,*153
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
55782DLOUVER, COWL TOP VENTILATOR, LH
main55709-02210iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD200912
*154
*154
*154
main55709-02230iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001
*153
*153
*153
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN,LCA&INTERMITTENT WIPER-AUTO(RAIN SENSOR); *LAM,T=4.56,GREEN,LUXURY&INTERMITTENT WIPER-AUTO(RAIN SENSOR); *LAM,T=4.56,GREEN,MID&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR); *LAM,T=4.56,GREEN,LCA&INTERMITTENT WIPER-AUTO(RAIN SENSOR); *LAM,T=4.56,GREEN,LUXURY&INTERMITTENT WIPER-AUTO(RAIN SENSOR); *LAM,T=4.56,GREEN,MID&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON; *LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON; *LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON
*LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR); *LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR); *LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR)
*LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR)
*LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR); *LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR); *LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=1089; L=1089,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
9046706188
main90467-06188
26 parts on this diagram · 2 diagrams in section
