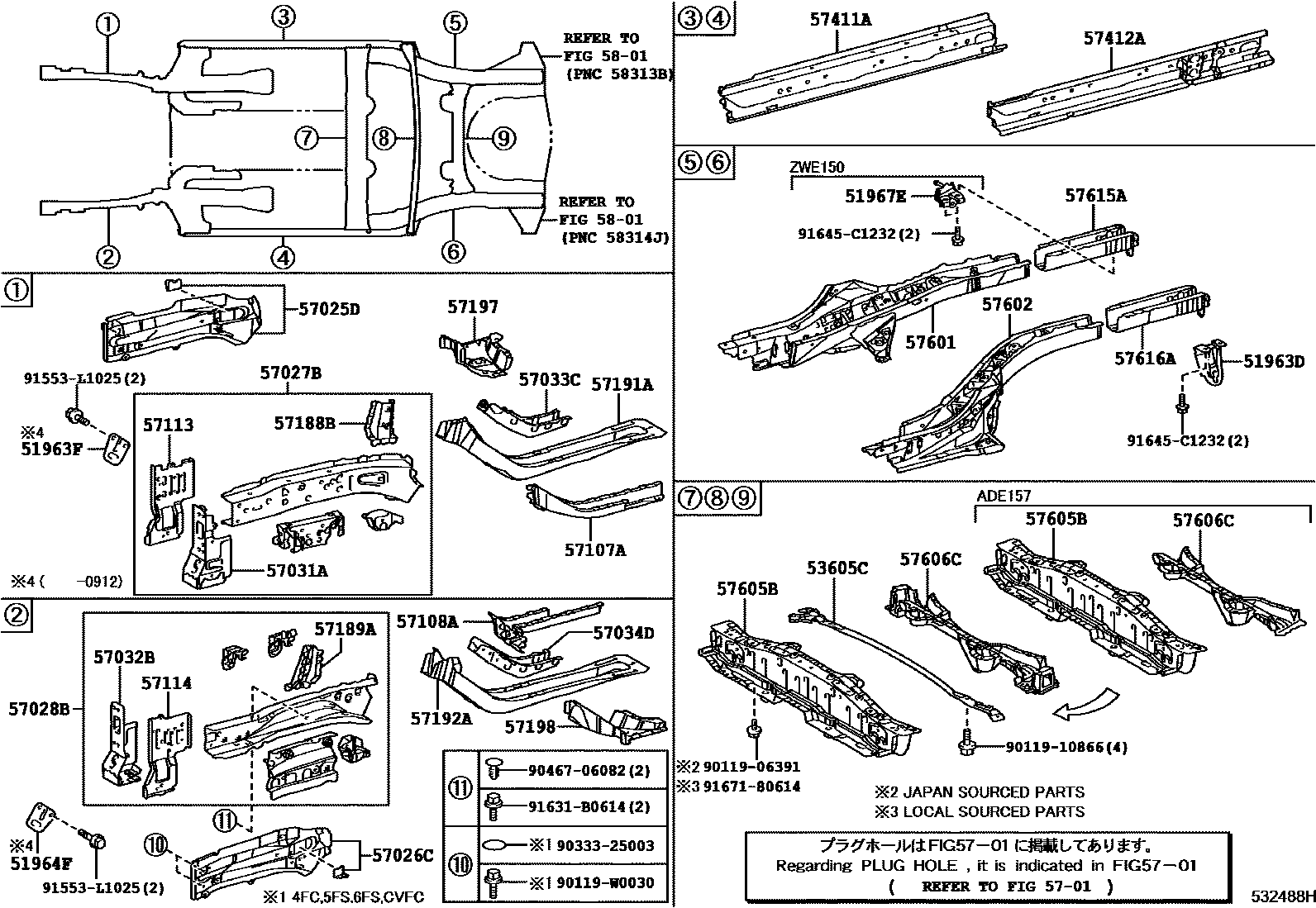

FLOOR SIDE MEMBER

51963DHOOK, TRANSPORT, REAR LH

main51968-02080iNDE150,ZRE151200702-200902

51963FHOOK, TRANSPORT

main51963-02080iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-200903

51964FHOOK, TRANSPORT, LH

main51964-02020iZZE150200702-200811

51967EHOOK, TRANSPORT, REAR RH

main51904-12020iZWE150201006

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-02010iZZE150200702-200811

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02020iZZE150200702-200811

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02020iZZE150200702-200811

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02020iZZE150200702-200811

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02020iZZE150200702-200811

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02010iZZE150200702-200811

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02010iZZE150200702-200811

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02020iZZE150200702-200811

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02020iZZE150200702-200811

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-02020iZZE150200702-200811

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-02020iZZE150200702-200811

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02070iZZE150200702-200811

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02070iZZE150200702-200811

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02010iZZE150200702-200811

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02010iZZE150200702-200811

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-02100iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-02100iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

57197BOX, TORQUE, FRONT RH

main57197-02030iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

*153

main57197-12040iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

*154

57198BOX, TORQUE, FRONT LH

main57198-02010iZZE150200702-200811

*153

main57198-12040iNDE150,ZRE151200702-200902

*154

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02120iADE15#200702-200903

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02120iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02170iZZE150200702-200811

main57601-02180iADE157200702-200903

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02170iZZE150200702-200811

main57602-02180iADE157200702-200903

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02040iZZE150..3D200702-200811

main57605-02180iZWE150201006

main57605-05050iADE15#..5D200808-200903

*153

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-02080iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201203

main57606-02081iADE150,NDE150,NRE150,ZRE15#201204

main57606-02090iADE157200702-200903

main57606-02091iADE157201204

main57606-02190iZWE150201006-201203

main57606-02191iZWE150201204

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57603-02020iADE15#200702-200903

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57604-02030iZZE150200702-200811

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9011906391

main90119-06391

9011910866

main90119-10866

90119W0030

main90119-W0030

9033325003

main90333-25003

9046706082

main90467-06082

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180614

main91671-80614

42 parts on this diagram · 1 diagram in section
