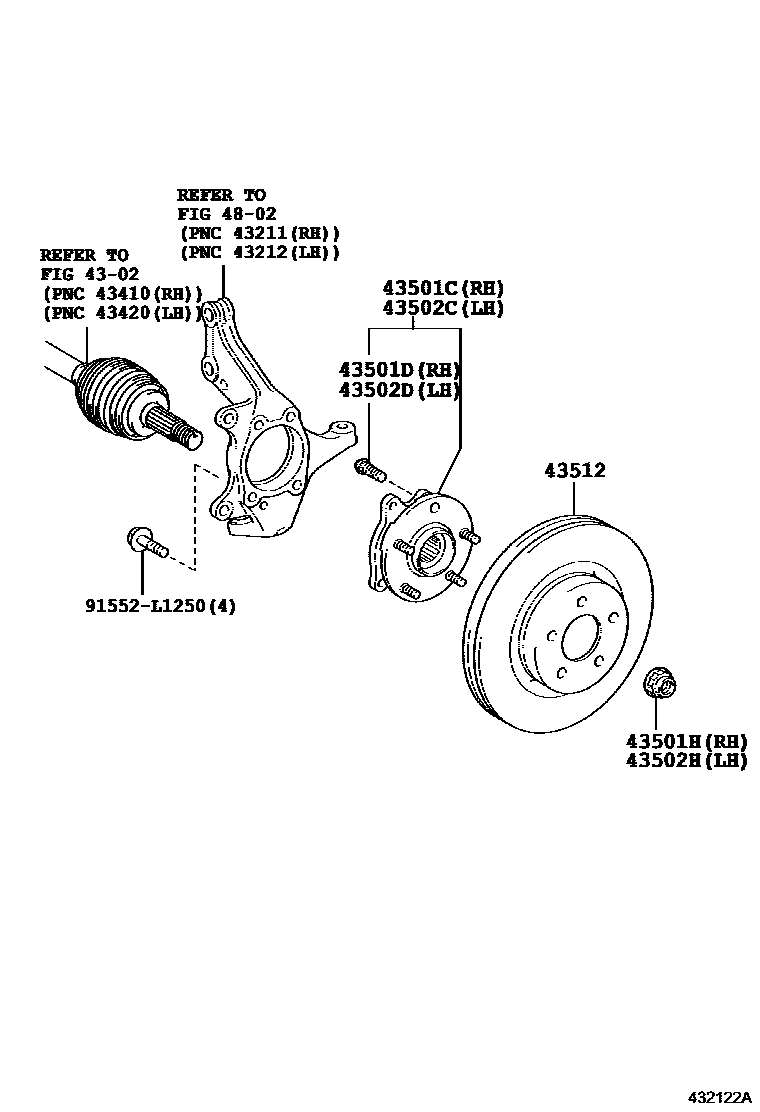

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-02010iNDE150,ZRE151,ZZE150200702-200902

main43550-02020iADE15#..LHD200912

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZZE150200702-200811

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-02010iZZE150200702-200811

main43550-02020iADE157..5D;ADE150..LHD..5D200903-200912

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iNDE150,ZRE151200702-200902

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

43512DISC, FRONT

main43512-02180×2iZZE150200702-200811

main43512-02190×2iADE15#200903-201001

main43512-42050×2iZWE150..G201006-201211

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section
