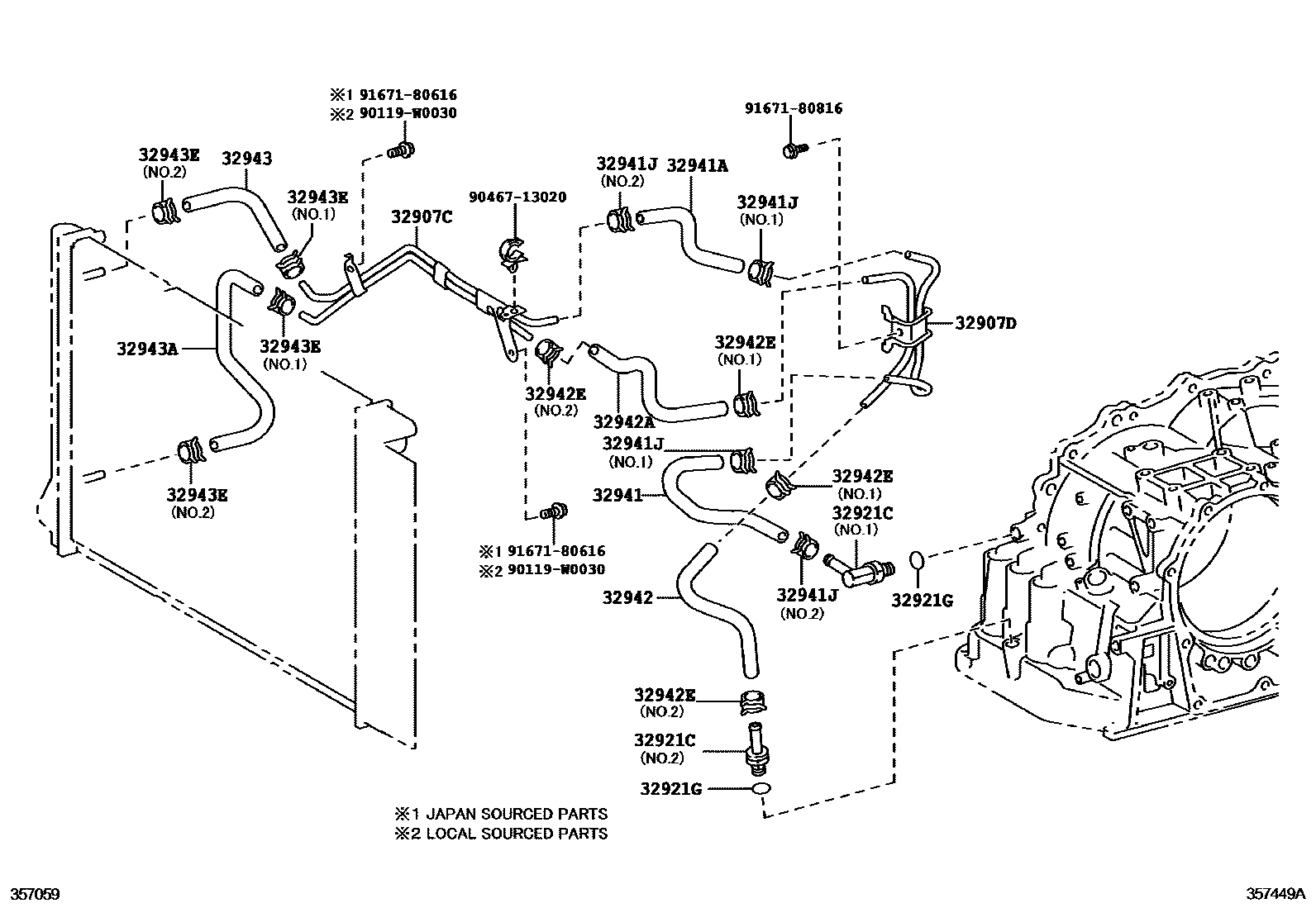

OIL COOLER & TUBE (ATM)
32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2
32921CUNION(FOR OIL COOLER TUBE)
NO.1
NO.2
32921GRING, O(FOR OIL COOLER TUBE UNION)
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
NO.1
NO.2
NO.1,NO.2
32942HOSE, OIL COOLER OUTLET, NO.1
32942AHOSE, OIL COOLER OUTLET, NO.2
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
NO.1
NO.2
NO.1,NO.2
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
NO.1
NO.2
NO.1,NO.2
90119W0030
main90119-W0030
9046713020
main90467-13020
9167180616
main91671-80616
9167180816
main91671-80816
17 parts on this diagram · 1 diagram in section
