VENTILATION HOSE

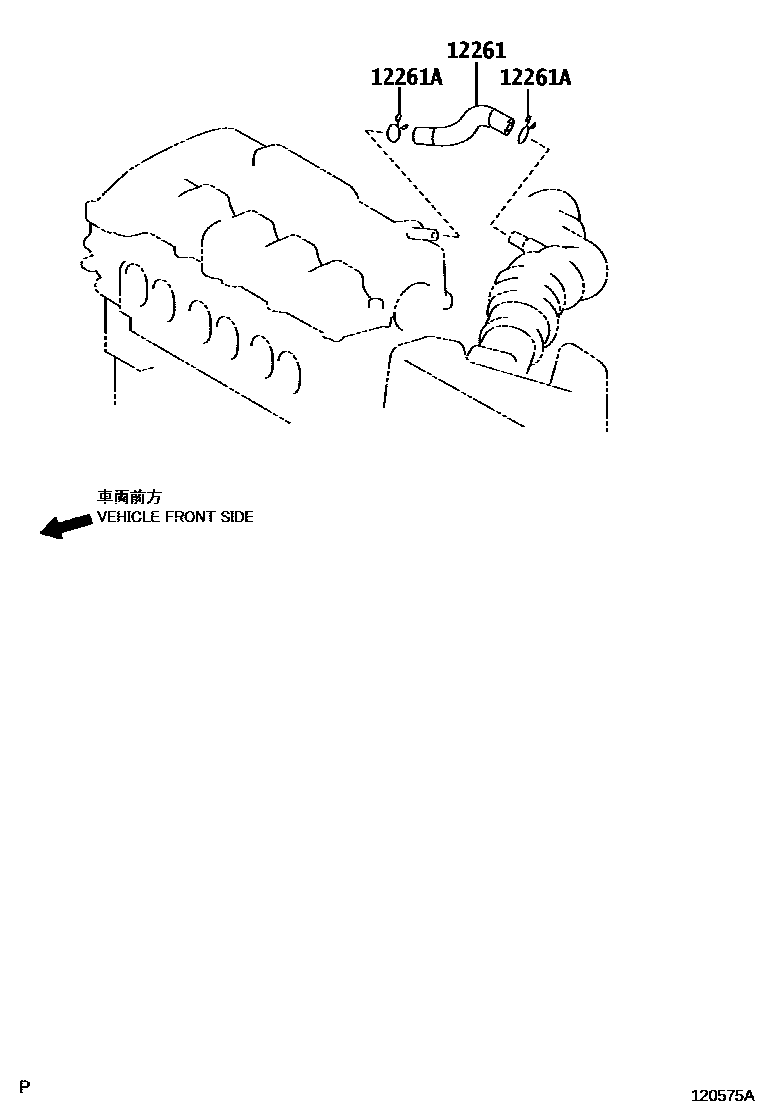

Parts diagram

12261HOSE, VENTILATION

main12261-0D070i200702-200811

(L)

main12261-0R020i200702-201110

main12261-0R030i201110

main12261-22050i200702-200811

(J)

main12261-33060i200702-200902

main12261-33120i200902-201210

main12261-37040i200702-201001

main12261-37050i200902-201001

main12261-37060i201006

main12261-47010i200811-201305

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i201111

*119,NO.2

main90466-23003i200702-201001

main90467-15120i200702-201001

NO.1

main90467-16035i200811-201001

main90467-20009i200702-200902

main90467-21152i200702-200811

main90467-22010i200702-200809

NO.2

main90467-23002i200809-201001

NO.2

main90467-23002i201006-201111

*119,NO.2

main90467-23002i201006

*149,NO.2

2 parts on this diagram · 7 diagrams in section
