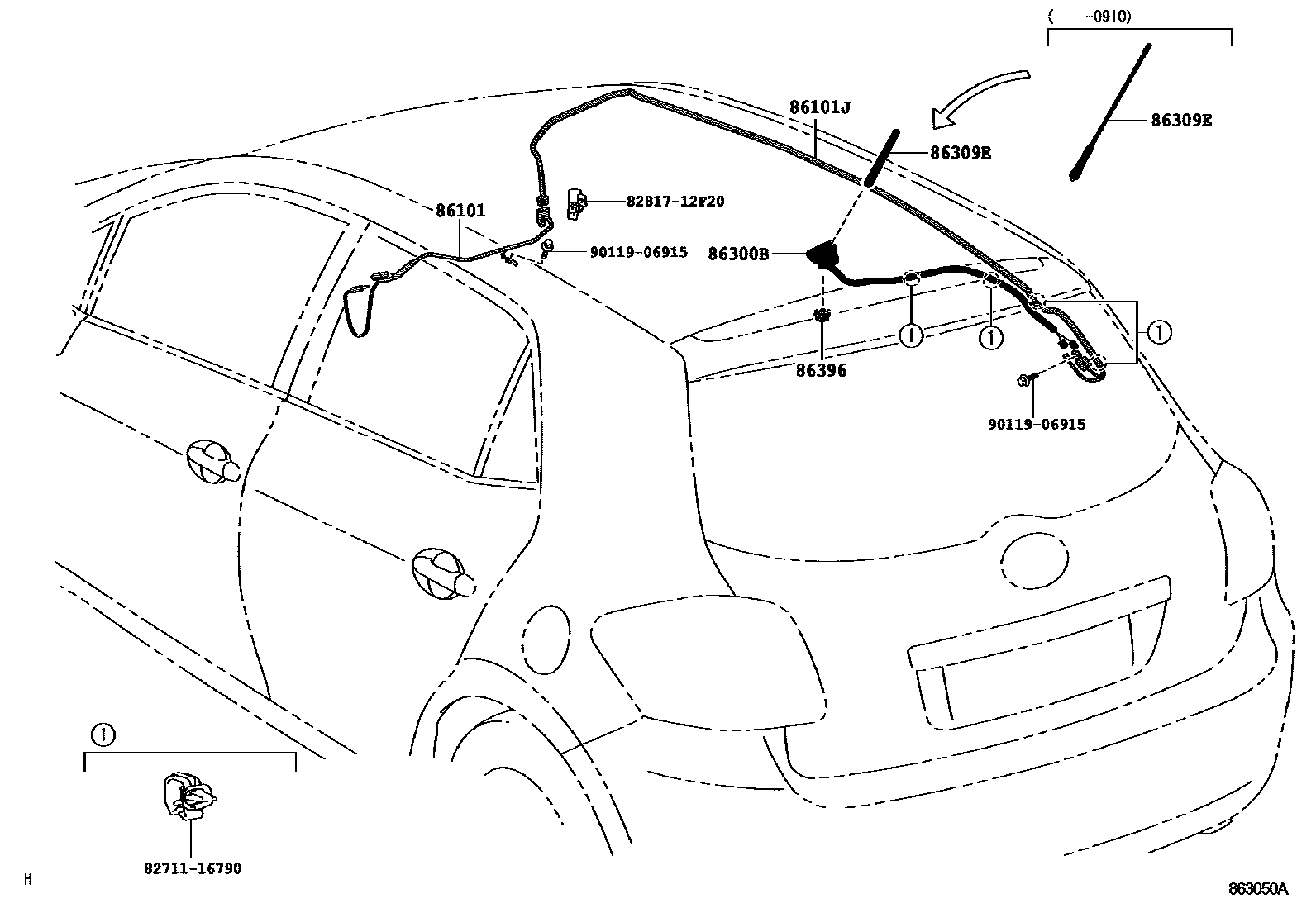

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-12450iZRE151..TERRA200610-200910

main86101-12460iNDE150200610-200910

main86101-12520iZRE151..SOL200910-201003

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-12410iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-201208

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-12840iADE150200610-200910

main86300-12A60iZRE151..SOL200910-201003

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080iNDE150,ZRE151..TERRA200910-201003

main86309-52040iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-200910

86396NUT, ANTENNA

main86396-20040iNDE150,ZRE151,ZZE150200610-201003

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8281712F20PROTECTOR, WIRING HARNESS, NO.1

main82817-12F20

9011906915

main90119-06915

8 parts on this diagram · 1 diagram in section
