AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0W290iNDE150200910

main89170-0W330iZRE151200910

main89170-02110supersedes 89170-02120iADE150..RHD200610-200901

SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)

main89170-02560supersedes 89170-02570iADE150..LHD200610-200901

SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)

89173ASENSOR, AIRBAG, FRONT RH

main89173-09410iNDE150,ZRE151,ZZE150200610-200812

main89173-09630iNDE150,ZRE151..TERRA200910

89174ASENSOR, AIRBAG, FRONT LH

main89173-09410iADE150200610-200901

main89173-09630iZRE151..SOL200910-201003

89833SENSOR, AIRBAG, REAR RH

main89831-0W060iNDE150,ZRE151200910

main89831-02080iNDE150,ZRE151,ZZE150200610-200812

SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)

89834SENSOR, AIRBAG, REAR LH

main89831-0W060iNDE150,ZRE151200910

main89831-02080iNDE150,ZRE151,ZZE150200610-200812

SRS AIR BAG-WITH(SIDE & CURTAIN SHIELD & KNEE)

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02060iNDE150,ZRE151,ZZE150200610-200812

main89831-02100iNDE150,ZRE151200910

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02060iNDE150,ZRE151,ZZE150200610-200812

main89831-02100iNDE150,ZRE151200910

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0625

main91553-A0625

9415180600

main94151-80600

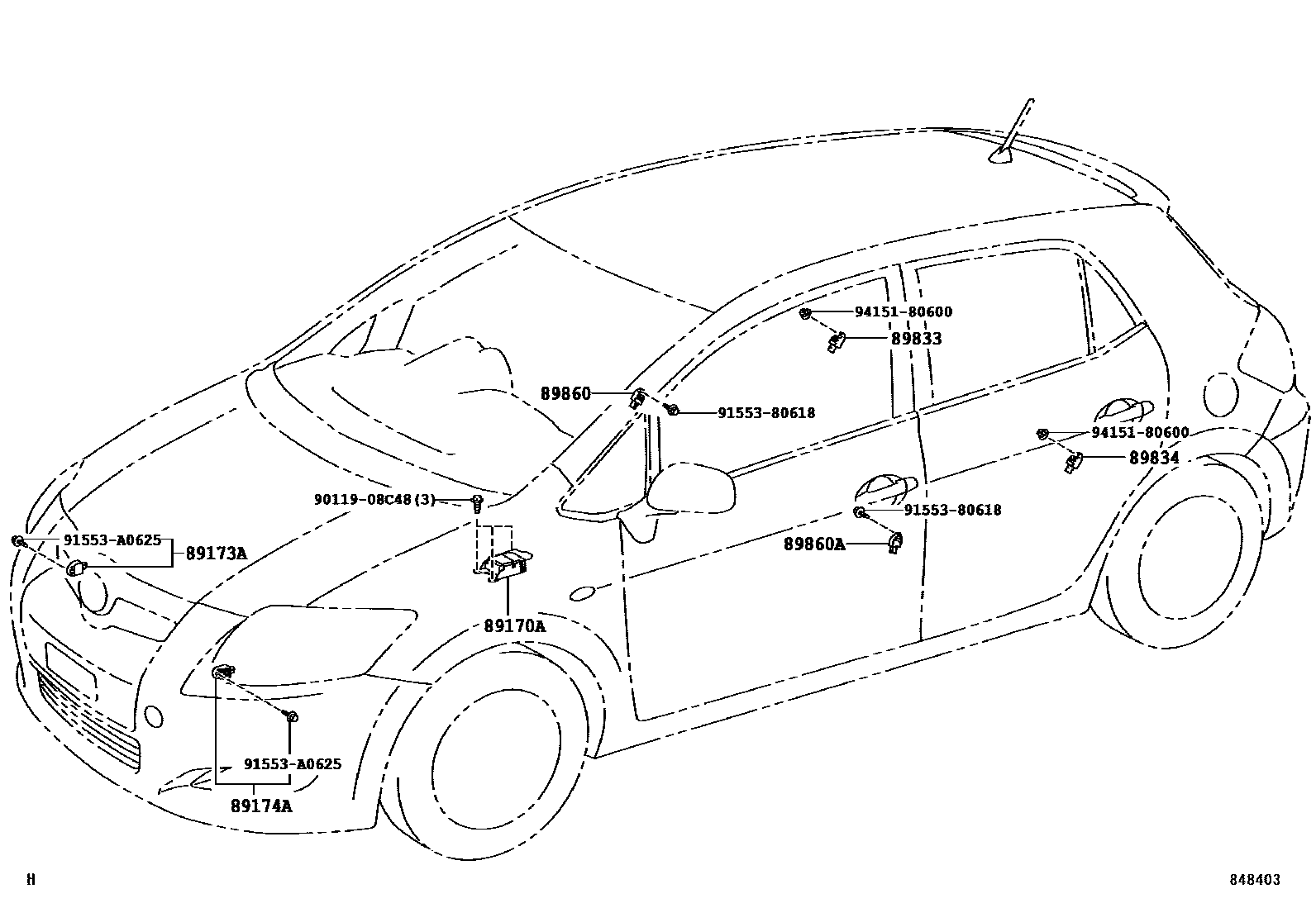

11 parts on this diagram · 1 diagram in section
