OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

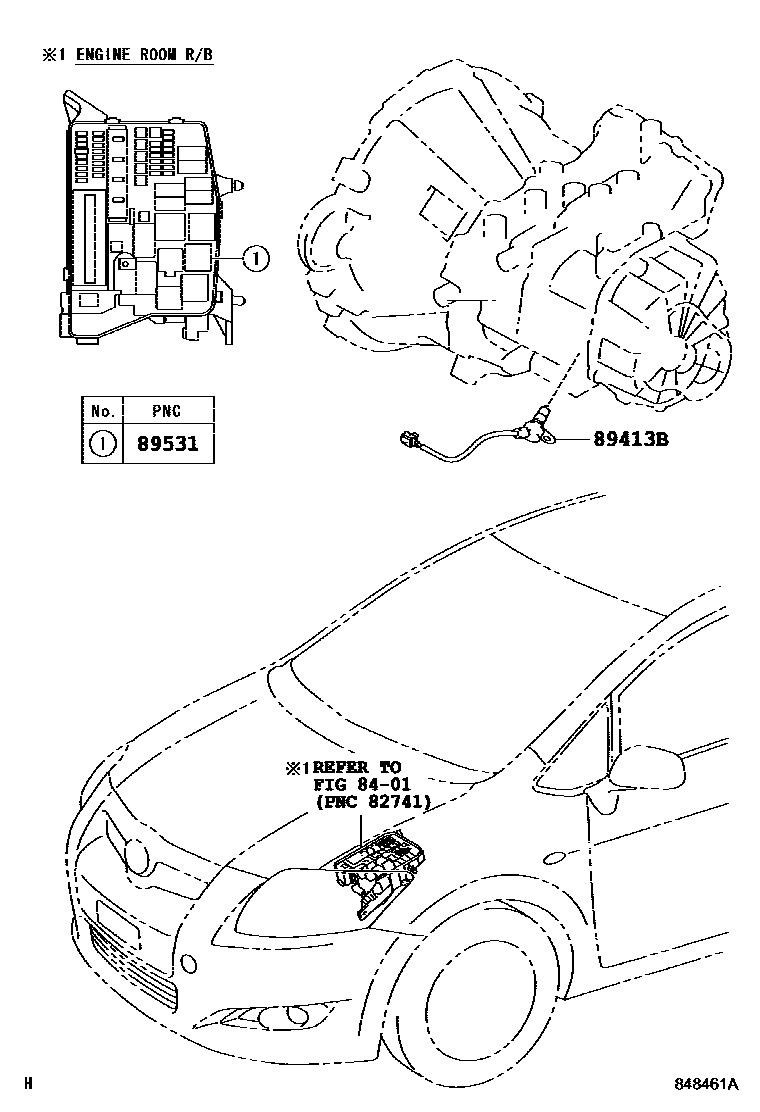

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010i200812-200910

main89413-64010i200610-200812

89531RELAY, TRANSMISSION CONTROL

main90987-02025i200610-200812

3 parts on this diagram · 2 diagrams in section
