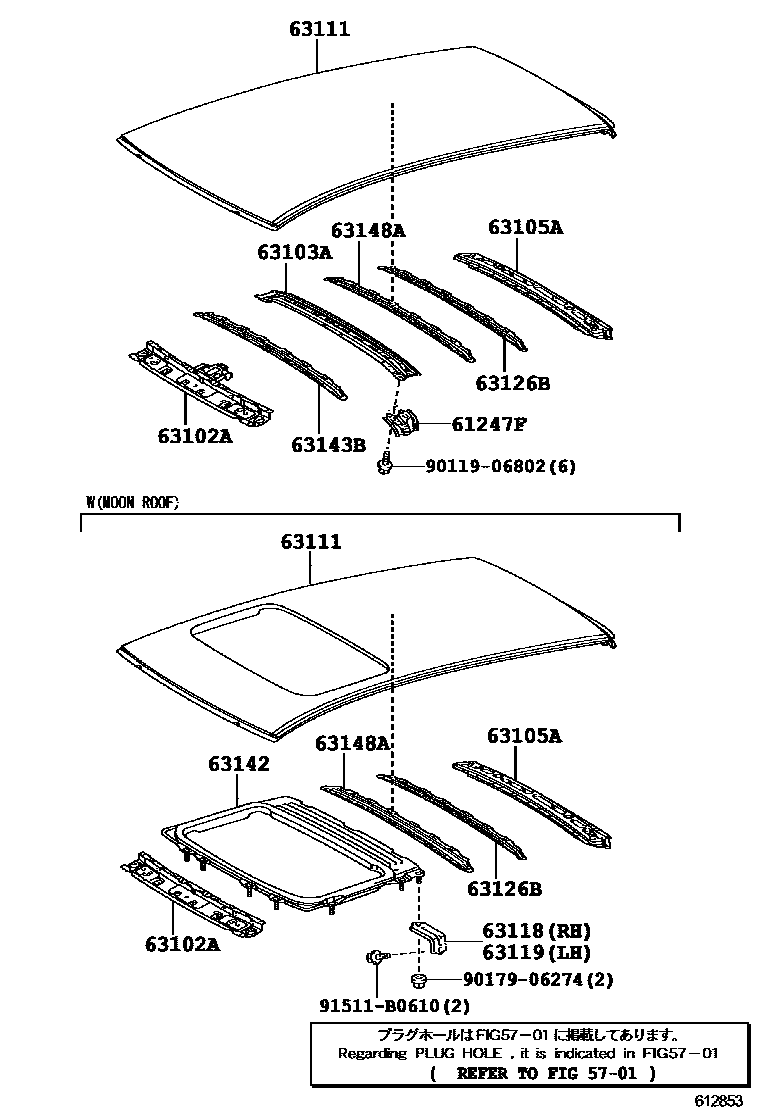

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

5701HOLE PLUG

→ Go to FIG 57-01

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-12040×2iNDE150,ZRE151200910-201208

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12210iNDE150,ZRE151200910-201208

main63102-12220iADE150,ZZE150..SOL;ZRE151..(5F,5FS)..SOL200610-200901

MOON ROOF-WITH(TILT & SLIDE)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63141-12280iNDE150,ZRE151..TERRA200910

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12270iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

63111PANEL, ROOF

main63111-12820iNDE150,ZRE151..TERRA200910

main63111-12840iADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

MOON ROOF-WITH(TILT & SLIDE)

63118SUPPORT, ROOF PANEL, RH

main63118-12110iADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200809-200910

MOON ROOF-WITH(TILT & SLIDE)

63119SUPPORT, ROOF PANEL, LH

main63118-12110iZRE151,ZZE150..SOL200610-200812

MOON ROOF-WITH(TILT & SLIDE)

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-12020iNDE150,ZRE151,ZZE150200610-200812

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-12080iZRE151,ZZE150..SOL200610-200812

MOON ROOF-WITH(TILT & SLIDE)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12120iNDE150,ZRE151,ZZE150200610-200812

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-12050iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main63144-12100iZRE151,ZZE150..SOL200610-200812

MOON ROOF-WITH(TILT & SLIDE)

9011906802

main90119-06802

9017906274

main90179-06274

91511B0610

main91511-B0610

15 parts on this diagram · 2 diagrams in section
