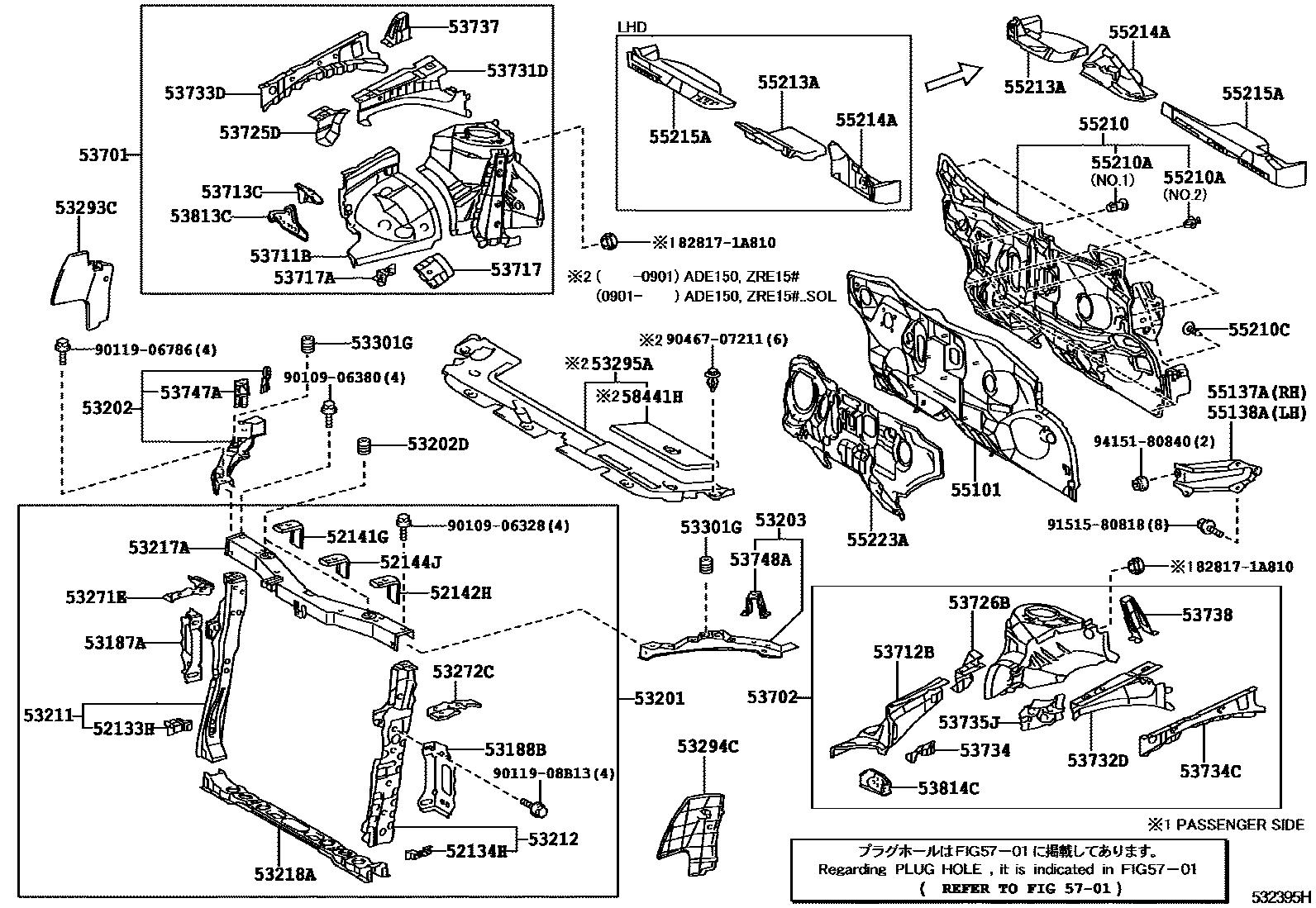

FRONT FENDER APRON & DASH PANEL

52133HBRACKET, FRONT BUMPER, RH

main52133-12150iNDE150,ZRE151,ZZE150200610-200812

52134HBRACKET, FRONT BUMPER, LH

main52134-12090iNDE150,ZRE151,ZZE150200610-200812

52141GSTAY, FRONT BUMPER, RH

main52081-12020iNDE150,ZRE151,ZZE150200610-200812

52142HSTAY, FRONT BUMPER, LH

main52082-12020iNDE150,ZRE151,ZZE150200610-200812

52144JSTAY, FRONT BUMPER, CENTER

main52085-12010iNDE150,ZRE151,ZZE150200610-200812

53187ASTAY, RADIATOR SUPPORT, RH

main53187-12030iNDE150,ZRE151,ZZE150200610-200812

53188BSTAY, RADIATOR SUPPORT, LH

main53188-12030iNDE150,ZRE151,ZZE150200610-200812

53201SUPPORT SUB-ASSY, RADIATOR

main53201-12902iNDE150,ZRE151,ZZE150200610-200812

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12480iNDE150,ZRE151,ZZE150200610-200812

53202DCUSHION, RADIATOR SUPPORT

main90541-15022×2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12430iNDE150,ZRE151,ZZE150200610-200812

53211SUPPORT, RADIATOR, RH

main53209-12140iNDE150,ZRE151,ZZE150200610-200812

53212SUPPORT, RADIATOR, LH

main53204-12060iNDE150,ZRE151,ZZE150200610-200812

53217ABRACE, HOOD LOCK SUPPORT

main53208-12560iNDE150,ZRE151,ZZE150200610-200812

53218ASUPPORT, RADIATOR, LOWER

main53218-12901iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-12050iNDE150,ZRE151,ZZE150200610-200812

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-12030iNDE150,ZRE151,ZZE150200610-200812

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-12030iNDE150,ZRE151,ZZE150200610-200812

main53293-12090iZRE151..SOL200910-201003

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-12050iADE150200610-200901

main53294-12120iNDE150,ZRE151..TERRA200910

53295ADEFLECTOR, RADIATOR UPPER AIR

main53140-12010iADE150,ZRE15#..SOL..(DCRL,HTWC,HTWVM)200812-200910

53301GCUSHION, HOOD BUMPER

main53384-50010×2iNDE150,ZRE151200910

main90541-15019×2iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A170iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A100iADE150,ZZE150;NDE150,ZRE151..5F,5FS200610-200901

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12270iADE150200610-200901

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12220iNDE150,ZRE151,ZZE150200610-200812

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160iNDE150,ZRE151,ZZE150200610-200812

53717PLATE, FENDER APRON, RH

main53717-12070iNDE150,ZRE151,ZZE150200610-200812

53717APLATE, FENDER APRON

main53718-12060iNDE150,ZRE151,ZZE150200610-200812

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040iNDE150,ZRE151,ZZE150200610-200812

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040iNDE150,ZRE151,ZZE150200610-200812

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170iADE150200610-200901

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070iNDE150,ZRE151,ZZE150200610-200812

53734PATCH, FRONT FENDER APRON, NO.4

main53736-12070iNDE150,ZRE151,ZZE150200610-200812

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070iNDE150,ZRE151,ZZE150200610-200812

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-12070iNDE150,ZRE151,ZZE150200610-200812

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12070iNDE150,ZRE151,ZZE150200610-200812

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-12040iZRE151..SOL200910-201003

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-12020iADE150200610-200901

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-12030iNDE150,ZRE151,ZZE150200610-200812

53813CEXTENSION, FRONT FENDER, RH

main53813-12100iNDE150,ZRE151,ZZE150200610-200812

53814CEXTENSION, FRONT FENDER, LH

main53814-12050iADE150200610-200901

55101PANEL SUB-ASSY, DASH

main55101-12B00iZZE150..LHD200610-200812

main55101-12B10iNDE150,ZRE151..RHD..5FS200610-200812

main55101-12B20iNDE150..RHD..6F;ADE150,NRE150,ZRE15#..RHD..6F..(DCRL,HTWC,HTWVM)200809-200910

main55101-12B30iZZE150..RHD200610-200812

main55101-12B60iNDE150,ZRE151..LHD..5FS200610-200812

main55101-12B70iNDE150..LHD..6F;ADE150,NRE150,ZRE15#..LHD..6F..(DCRL,HTWC,HTWVM)200809-200910

55137ABRACE, DASH TO FRAME, RH

main55137-12030iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

55138ABRACE, DASH TO FRAME, LH

main55138-12010iADE150200610-200901

55210INSULATOR ASSY, DASH PANEL

main55210-12530iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main55210-12540iNDE150200910

55210ACLIP

main90467-11122×5iNDE150,ZRE151,ZZE150200610-200812

NO.1:REFER ILLUST.

main90467-11127×3iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

NO.2:REFER ILLUST.

55210CCLIP

main90467-08186-C0×4iNDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

BLACK

55213APAD, DASH PANEL SILENCER

main55213-12650iZRE151..SOL200910-201003

main55213-12660iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-12010iADE150..LHD200610-200901

main55214-12020iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-12100iNDE150..LHD..(6F,6FS);ADE150,NRE150,ZRE15#..LHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

main55215-12110iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

55223AINSULATOR, DASH PANEL, OUTER

main55223-12160iNDE150,ZRE151,ZZE150..LHD200610-200812

main55223-12170iNDE150..RHD..(6F,6FS);ADE150,NRE150,ZRE15#..RHD..(6F,6FS)..(DCRL,HTWC,HTWVM)200809-200910

5701HOLE PLUG

→ Go to FIG 57-01

58441HCOVER, BATTERY SERVICE HOLE

main58441-12010iZRE151..SOL200910-201003

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9010906328

main90109-06328

9010906380

main90109-06380

9011906786

main90119-06786

9011908B13

main90119-08B13

9046707211

main90467-07211

9151580818

main91515-80818

9415180840

main94151-80840
