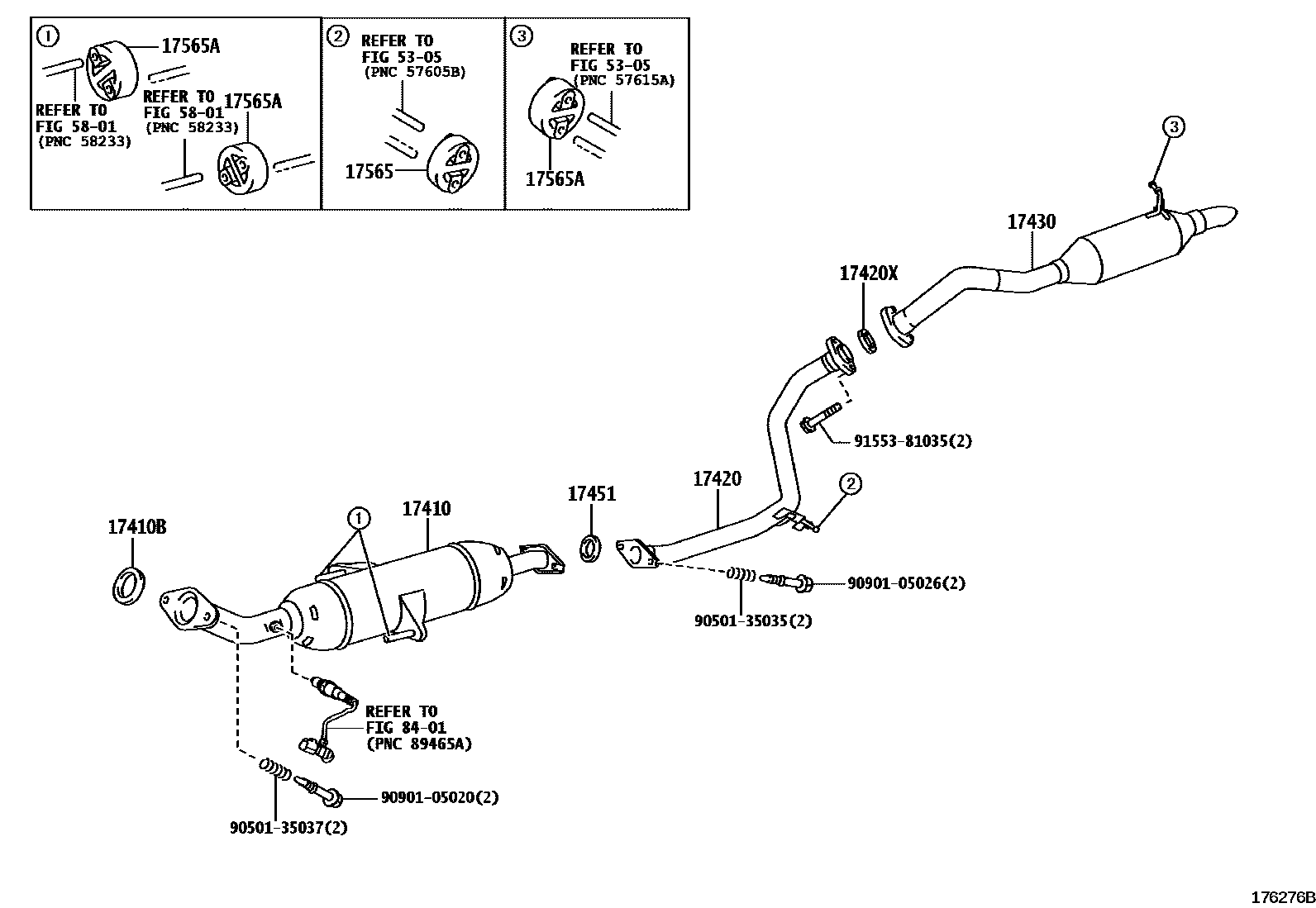

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-22560i4ZZFE..ZZE150200610-200812

*114=TOYOTA/GH1/Y

main17410-22570i1ZRFE..ZRE151200610-201208

*114=*563

main17410-26370i1ADFTV..ADE150..DCR200610-200901

*114=TOYOTA/AD1/Y

main17410-26380i1ADFTV..ADE150..DCRL200610-200901

*114=TOYOTA/AD2/Y

main17410-26480i1ADFTV..ADE150200901-200910

*114=TOYOTA/AE9/Y

main17410-33140i1NDTV..NDE150200610-200812

main17410-33150i1NDTV..NDE150200812-201208

main17410-37340i1ZRFAE,2ZRFAE..ZRE15#200812-200910

*114=*389

main17410-47060i1NRFE..NRE150200809-200910

*114=TOYOTA/CD9/Y

17410BGASKET, EXHAUST PIPE

main17451-22070i4ZZFE..ZZE150200610-200812

main17451-28040i1ADFTV..ADE150200610-201003

main17451-47020i1NRFE..NRE150200809-200910

17420PIPE ASSY, EXHAUST, CENTER

main17420-22110i1ZRFE,4ZZFE..ZRE151,ZZE150200610-201003

main17420-22120i1NDTV..NDE150200610-200910

main17420-47070i1NRFE..NRE150200809-200910

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1NDTV..NDE150..6F,6FS;1ADFTV,1NRFE,1ZR#,2ZRFAE..ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-200910

17430PIPE ASSY, EXHAUST, TAIL

main17430-22490i4ZZFE..ZZE150200610-200812

main17430-22500i1ZRFE..ZRE151200610-201105

main17430-22501i1ZRFE..ZRE151201106-201208

main17430-26720i1ADFTV..ADE150200610-200910

main17430-33090i1NDTV..NDE150200610-201208

17451GASKET, EXHAUST PIPE

main17451-28030i1ADFTV,1NDTV,1ZRFE,4ZZFE..ADE150,NDE150,ZRE151,ZZE150200610-200712

main17451-28031i1NDTV..NDE150;1ADFTV,1ZR#,2ZRFAE..ADE150,ZRE15#..DCRL,HTWC,HTWVM200801-201102

main17451-28032i1NDTV,1ZRFE..NDE150,ZRE151201103

main90917-06089i1NRFE..NRE150200809-200910

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i1NDTV..NDE150..6F,6FS;1ADFTV,1NRFE,1ZR#,2ZRFAE..ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM)200610-201003

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1NDTV,1ZRFE,4ZZFE..NDE150,ZRE151,ZZE150200610-201003

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155381035

main91553-81035

16 parts on this diagram · 5 diagrams in section
