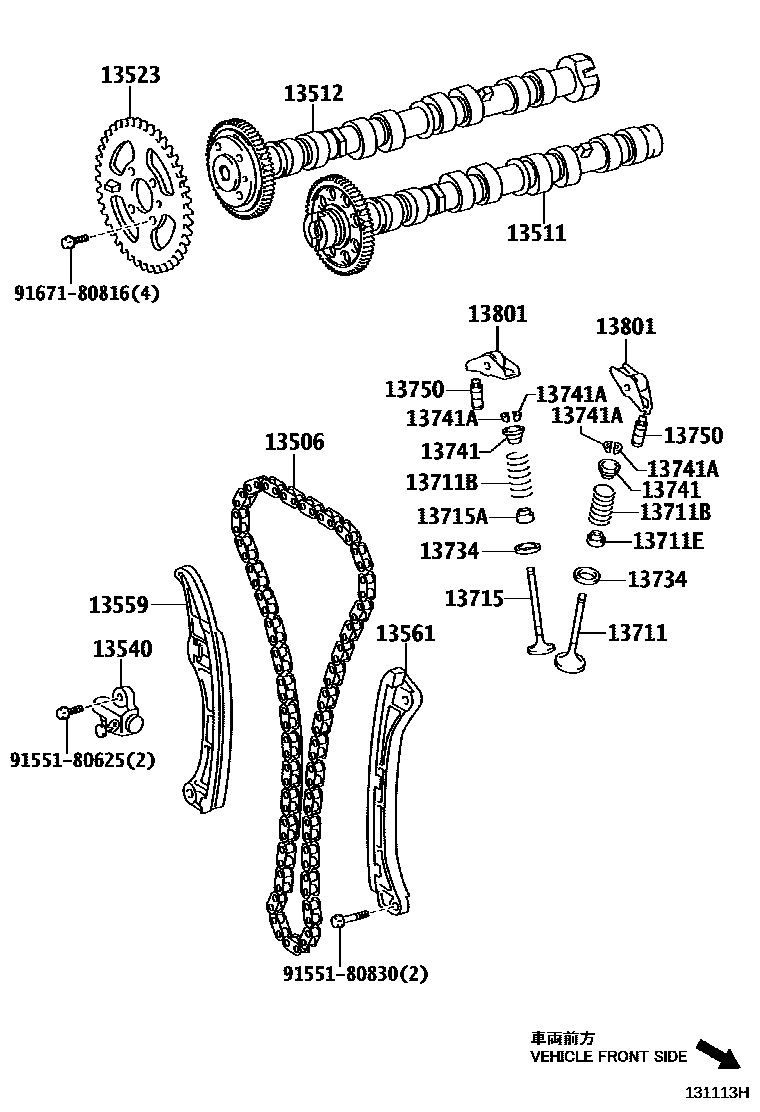

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
(L)
(L)
(J)
(J)
13512CAMSHAFT, NO.2
(L)
(L)
(J)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
9155180625
main91551-80625
9155180830
main91551-80830
9167180816
main91671-80816
20 parts on this diagram · 7 diagrams in section
