ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-02310iNDE180,NRE180,ZRE18#..LHD201306-201405

main86101-02311iNRE180..LHD..EUR201606-201901

MAYDAY SYSTEM-WITHOUT

main86101-02311iNDE180,NRE180,ZRE18#..LHD201406-201605

main86101-02320iNDE180,ZRE181..RHD201306-201901

main86101-02580iNRE180..RUS201606-201901

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02380iNDE180,ZRE181..EUR201606-201901

MAYDAY SYSTEM-WITHOUT

main86300-02380iNDE180,NRE180,ZRE18#201306-201605

main86300-02520iNRE180..RUS201609-201901

9011906915

main90119-06915

90119W0017

main90119-W0017

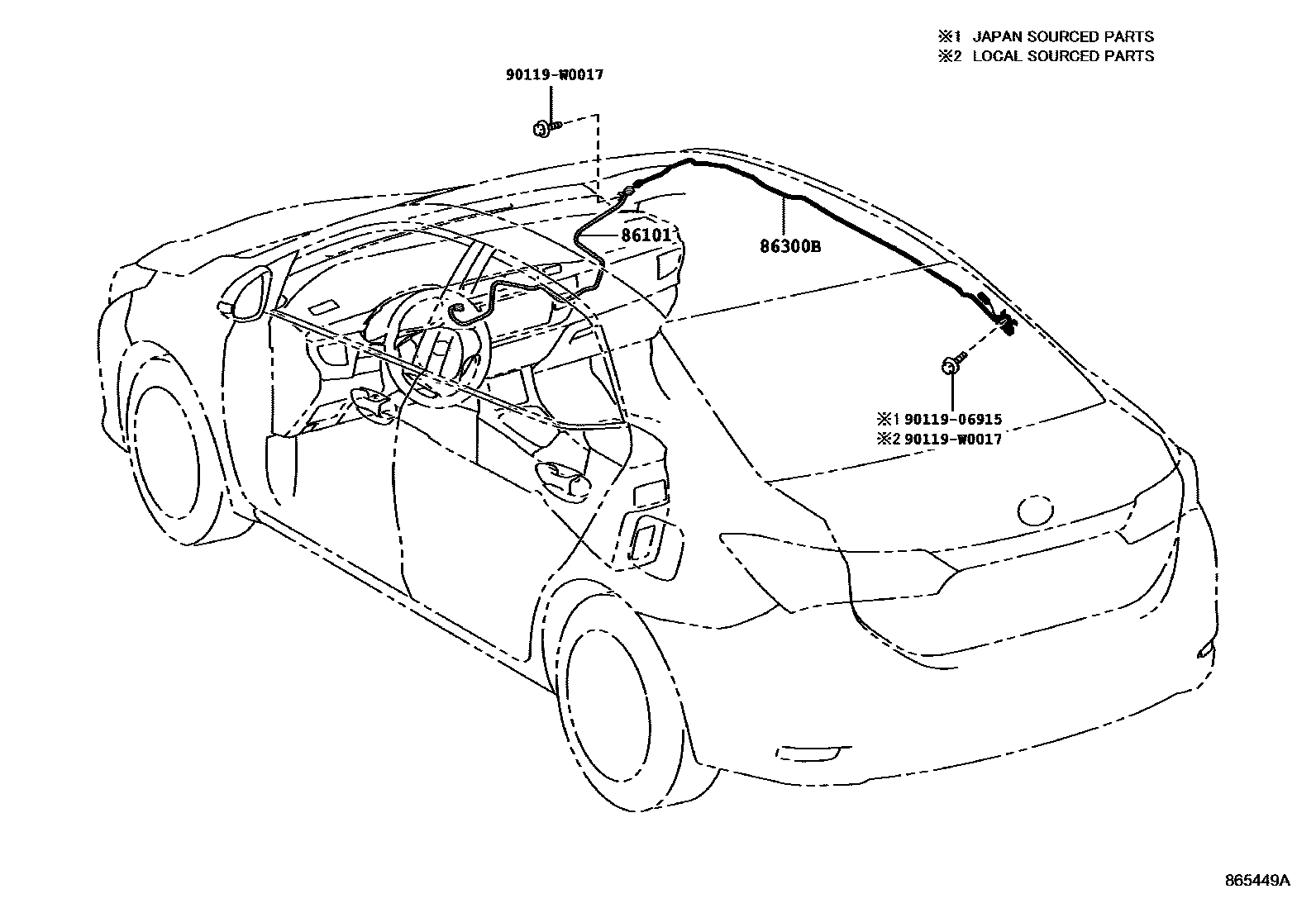

4 parts on this diagram · 2 diagrams in section
