HEADLAMP
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
81110HEADLAMP ASSY, RH
HEADLAMP-LED
HEADLAMP-LED & WITH(*AHB)
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE),HEADLAMP-HALOGEN & WITH(*AHB)
12V65W(SAE),60W(ECE)
12V65W(SAE),60W(ECE),HEADLAMP-HALOGEN
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN,HEADLAMP-HALOGEN
12V 55W,HALOGEN,HEADLAMP-HALOGEN & WITH(*AHB)
81117ABRACKET, HEADLAMP, RH
81131AUNIT, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
HEADLAMP-HALOGEN
HEADLAMP-HALOGEN & WITH(*AHB)
81157ABRACKET, HEADLAMP, LH
81171AUNIT, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195SCREW, HEADLAMP
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81610FBULB(FOR CLEARANCE LAMP)
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010906382
main90109-06382
9015950311
main90159-50311
9016740057
main90167-40057
9018306030
main90183-06030
9018905142
main90189-05142

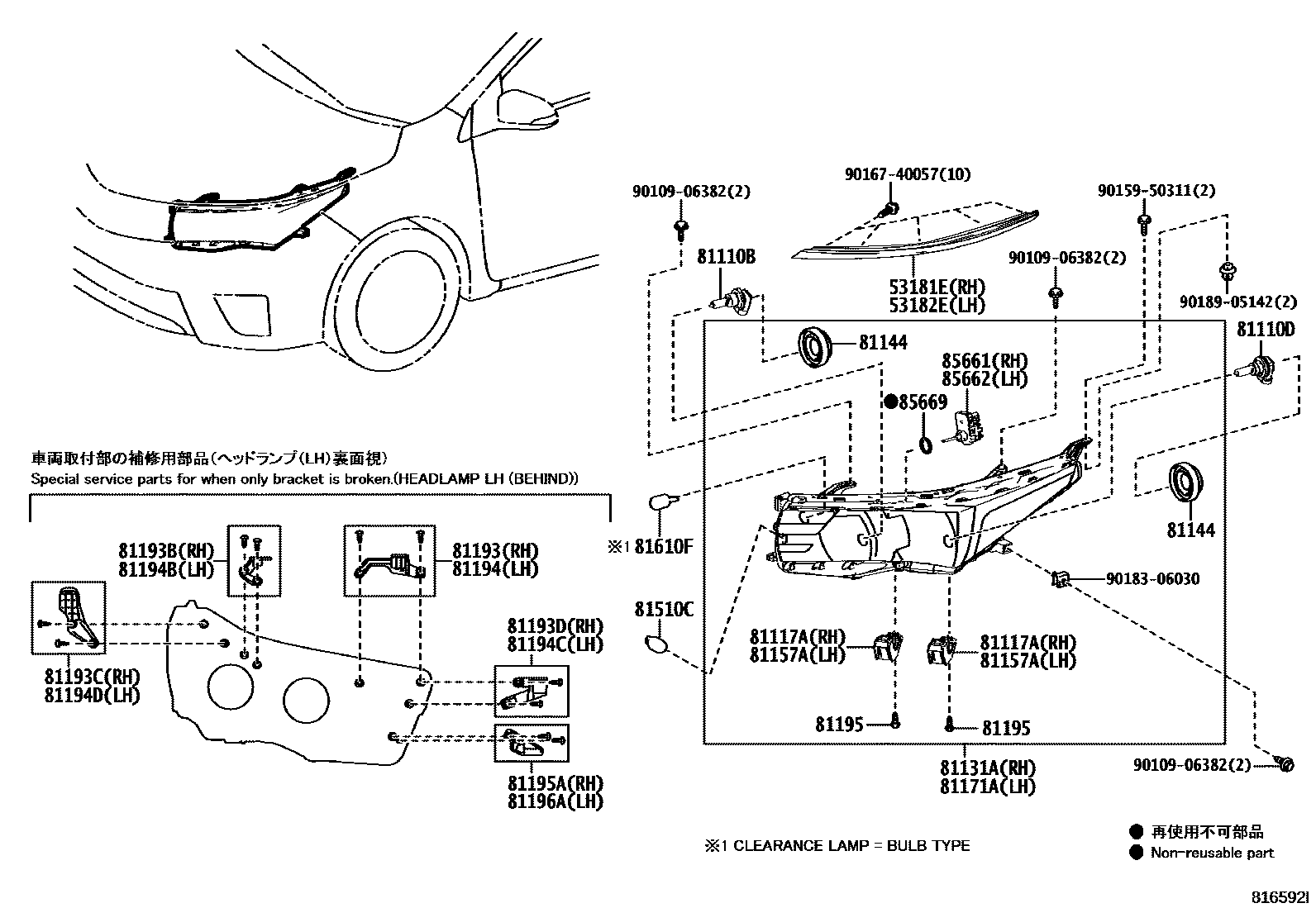

31 parts on this diagram · 3 diagrams in section
